Engine Control Module

Main Power Supply and Ground Circuit

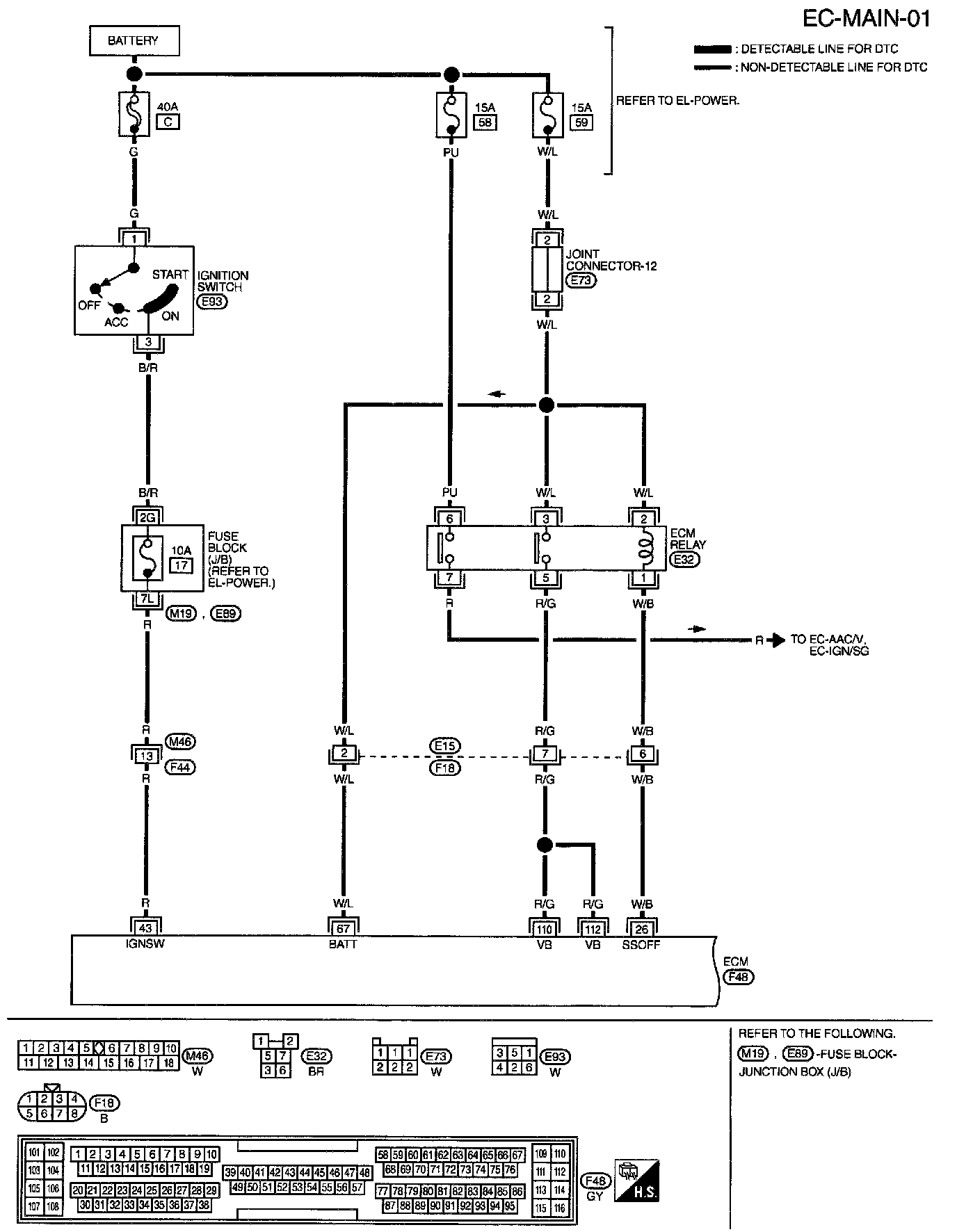

EC-MAIN-01:

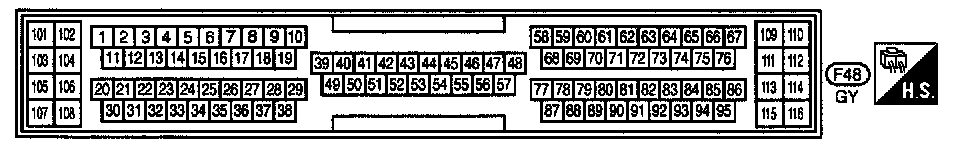

EC-MAIN-01 - Connector View:






EC-MAIN-02:

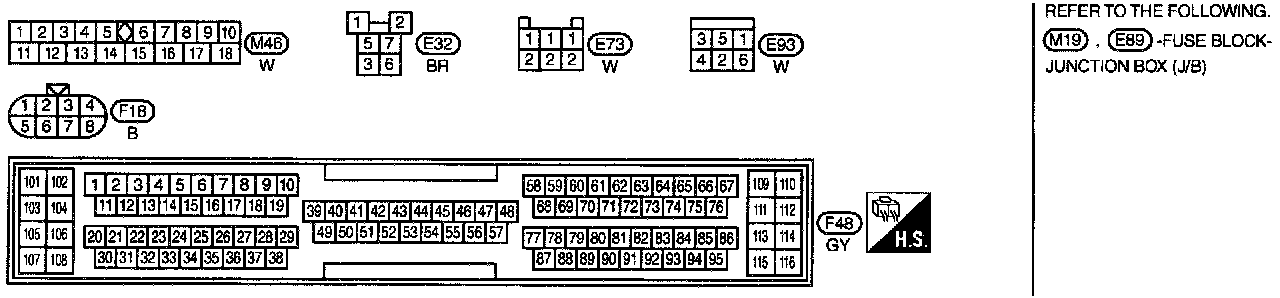

EC-MAIN-02 - Connector View:






Fuse Block - Junction Block (J/B) - Terminal Arrangement (B5, E83, E87, E89, M17, M18, M19):
