Maxima GXE V6-3.0L (VQ30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
EL-WARN
EL-WARN

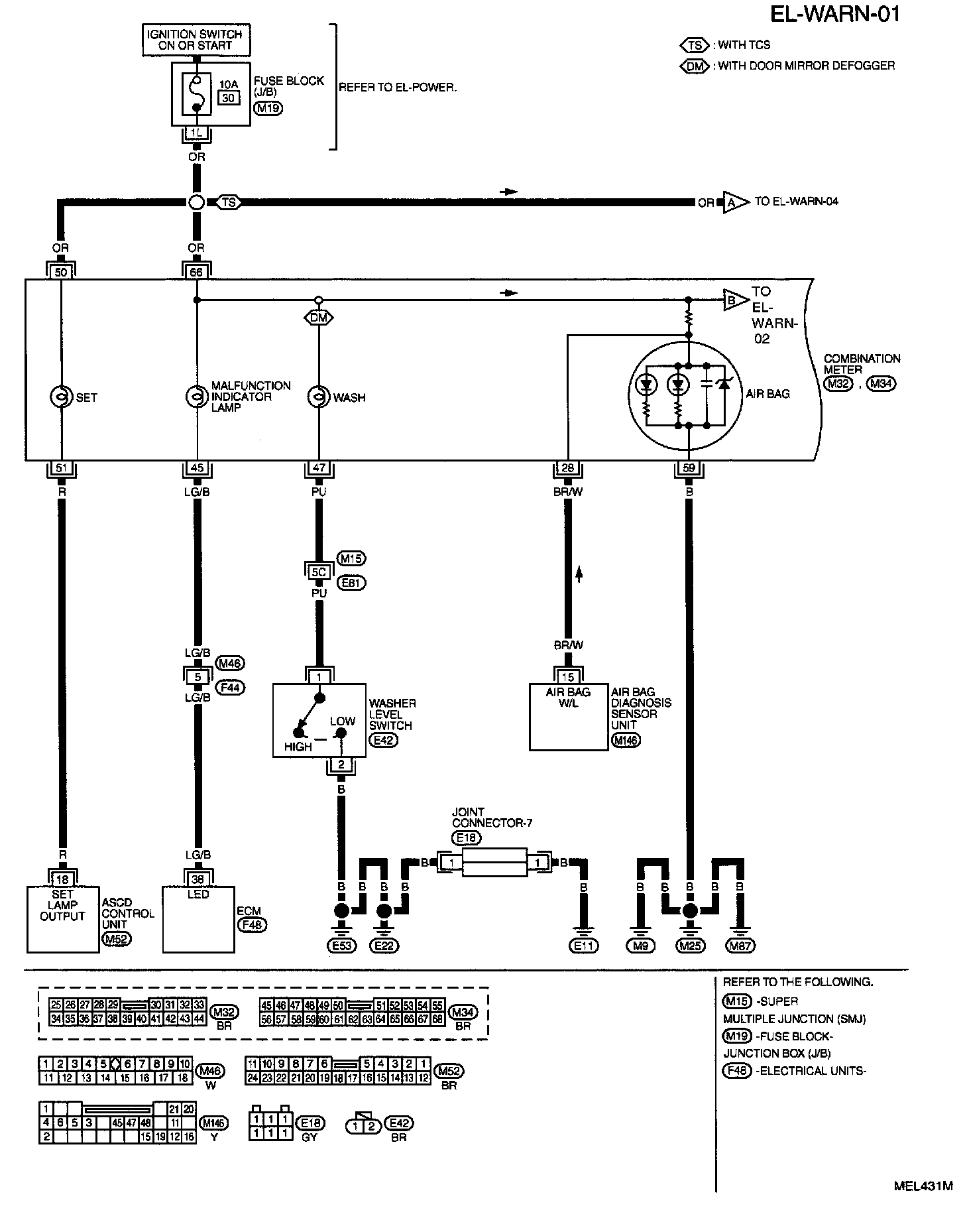

EL-WARN-01:

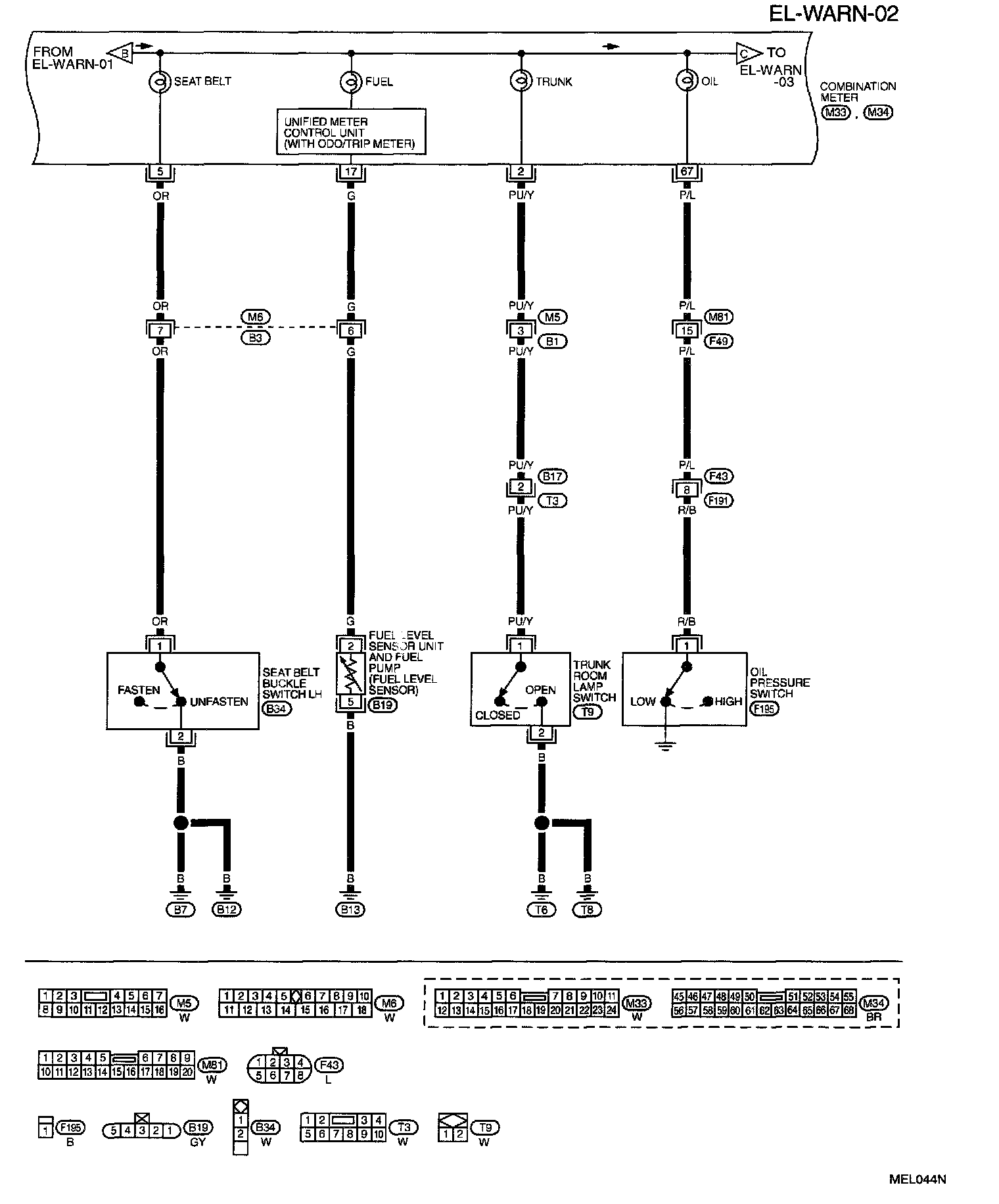

EL-WARN-02:

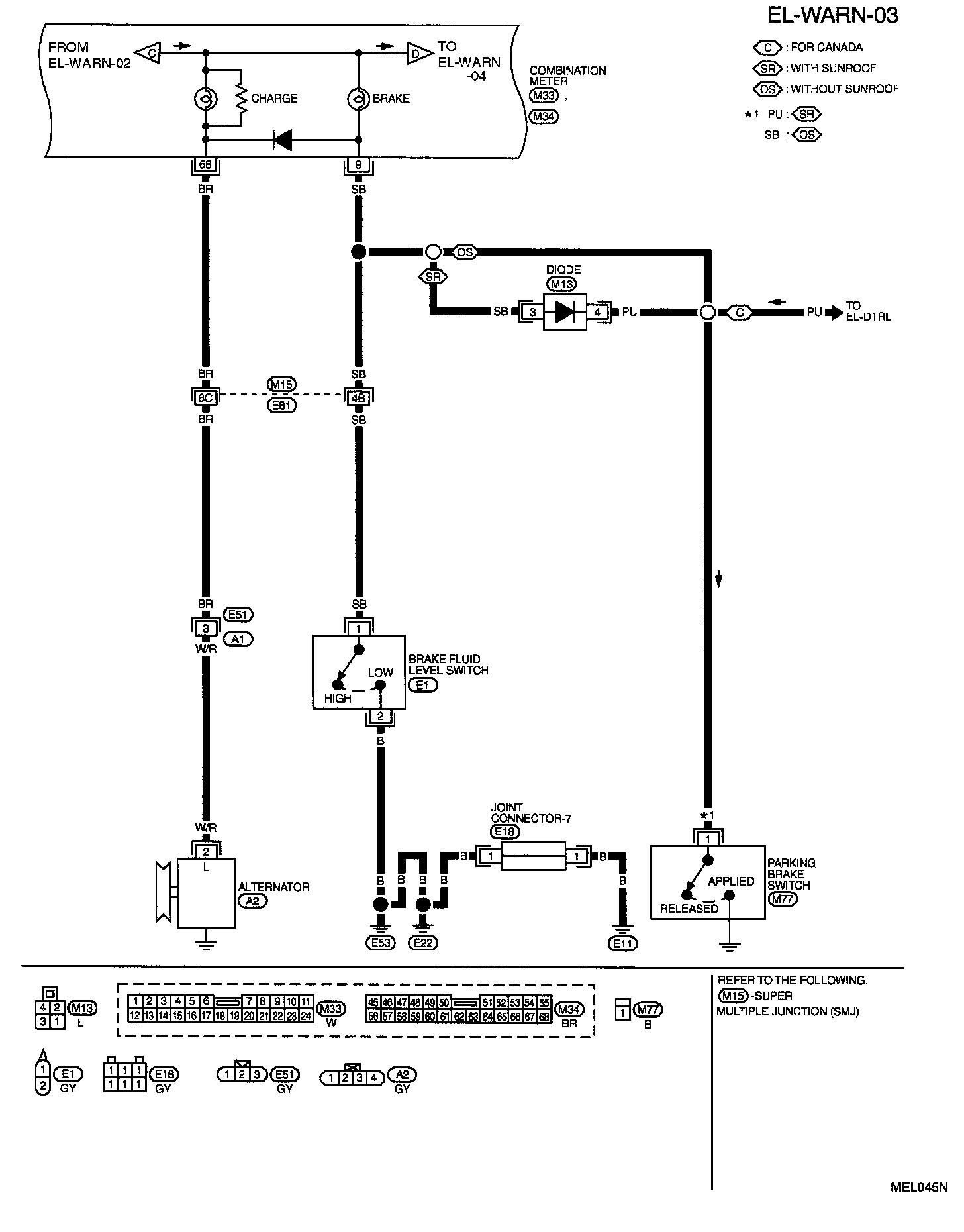

EL-WARN-03:

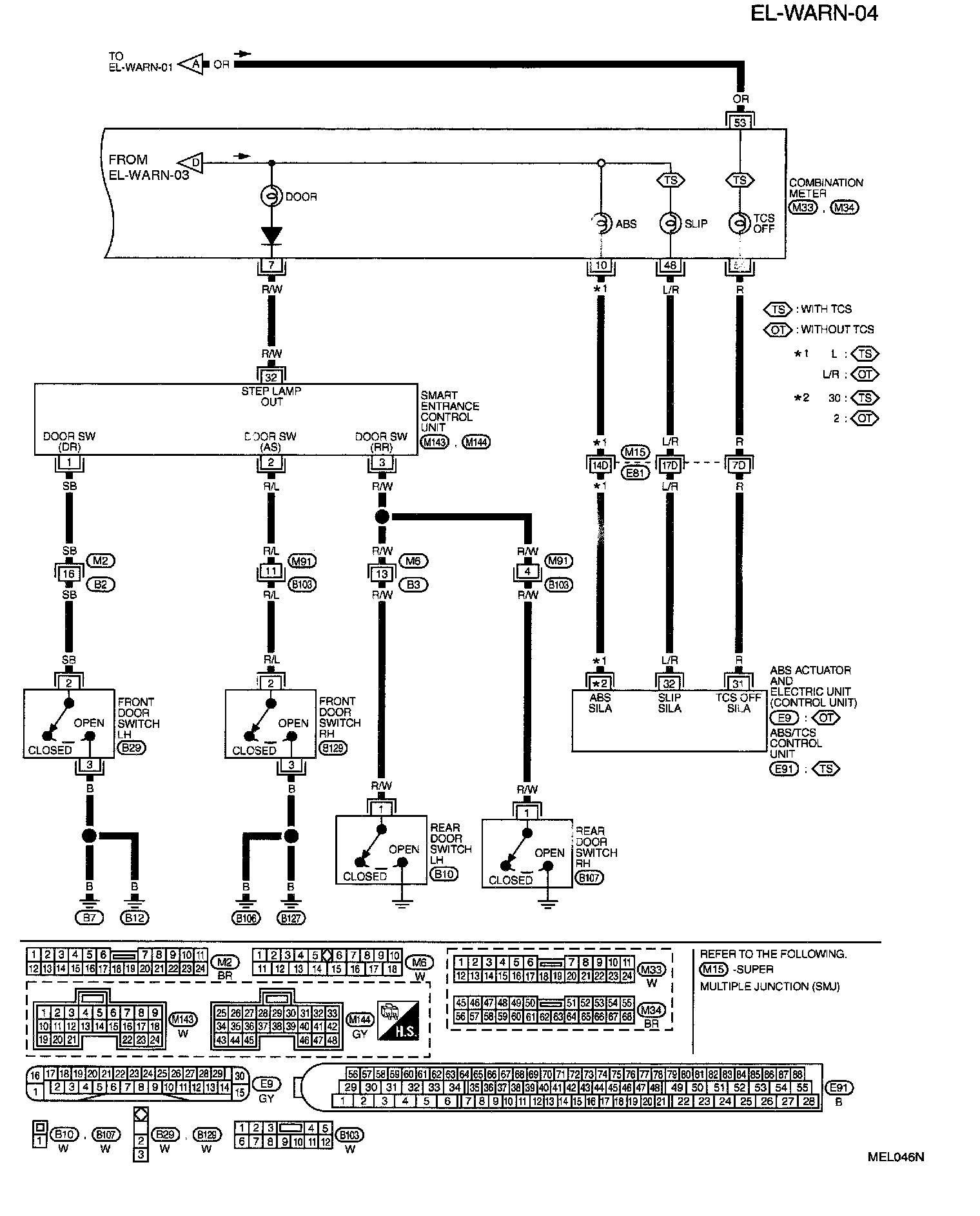

EL-WARN-04:
