Instrument Cluster / Carrier
Instrument Cluster / Carrier

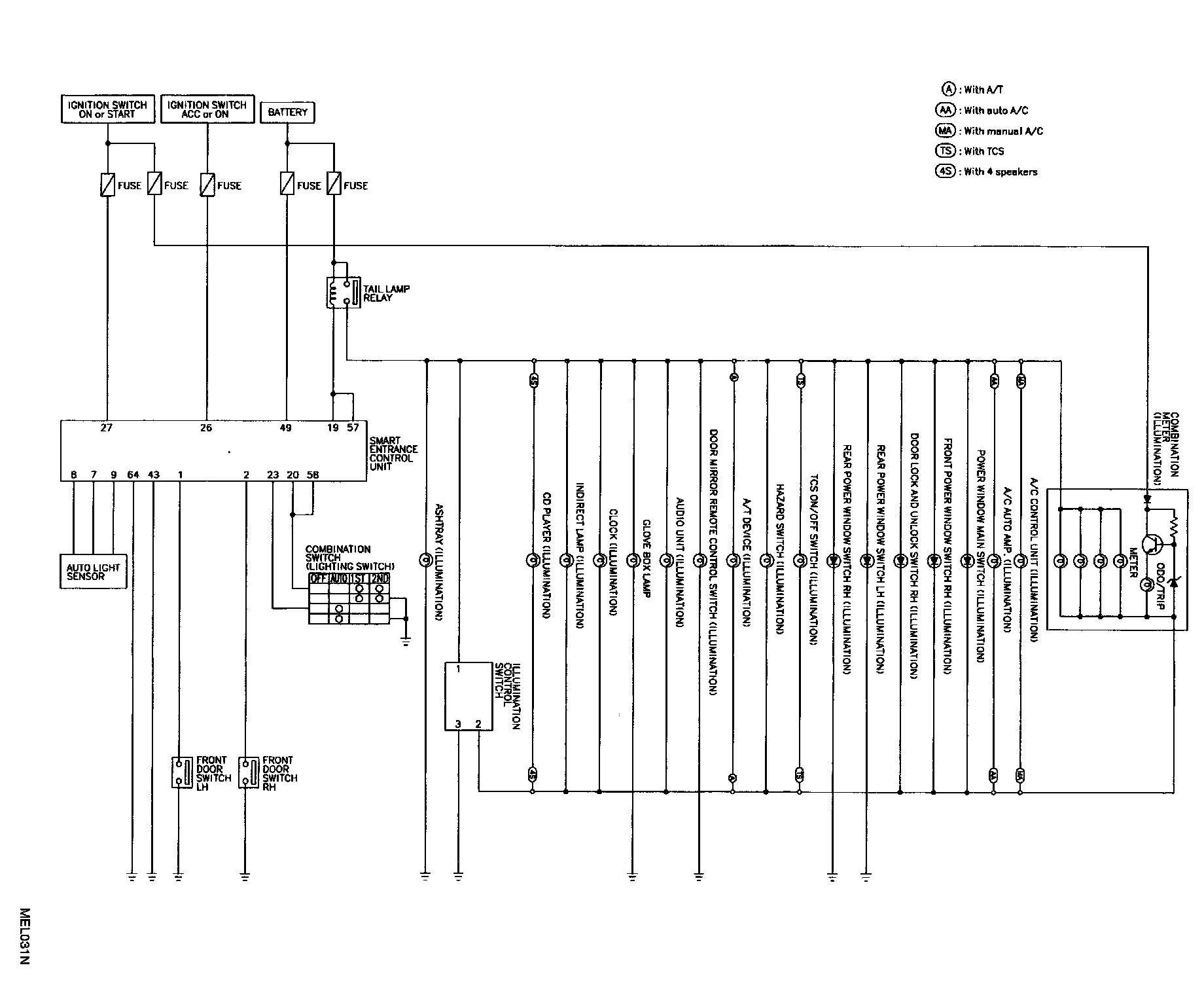

Schematic:

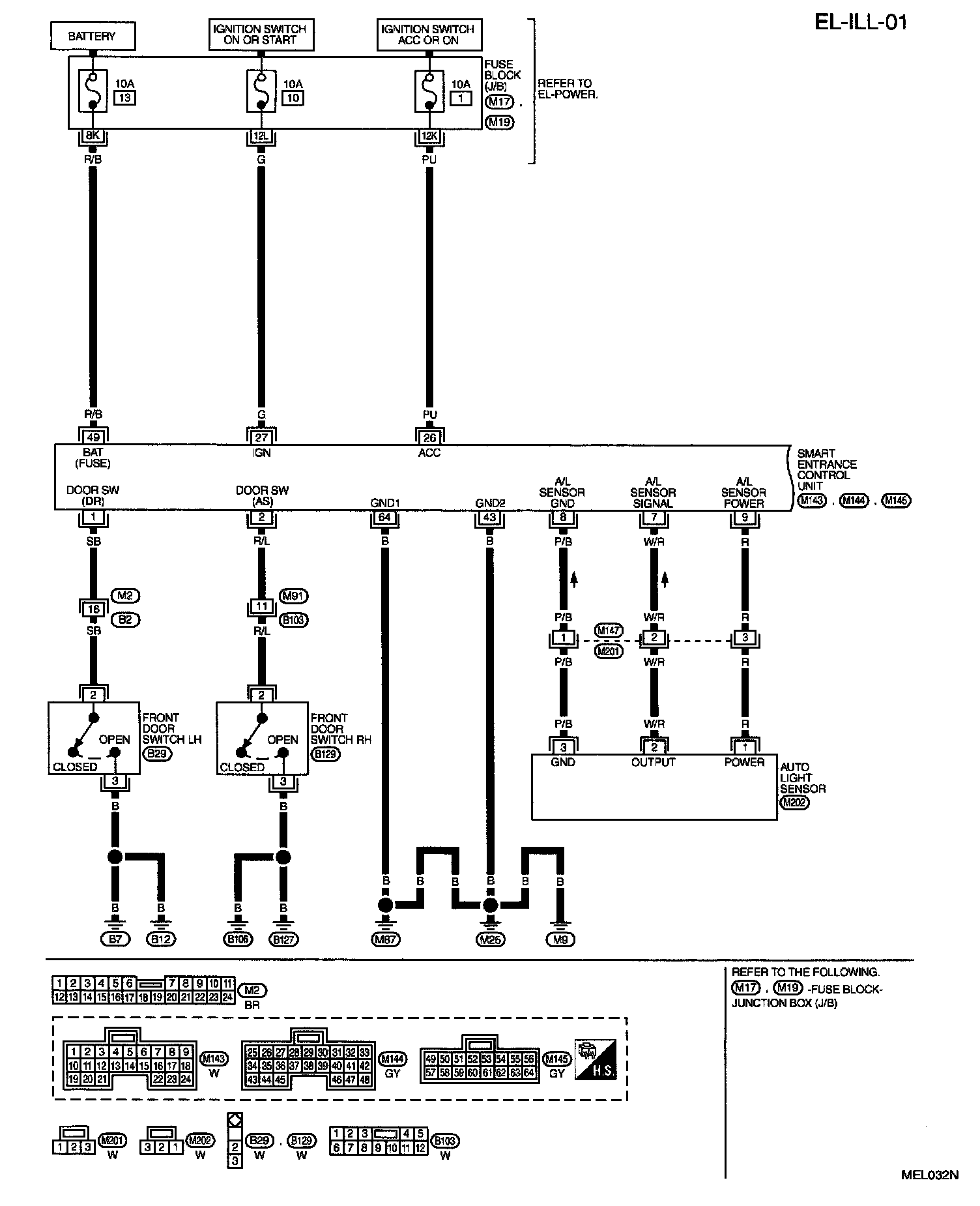

EL-ILL-01:

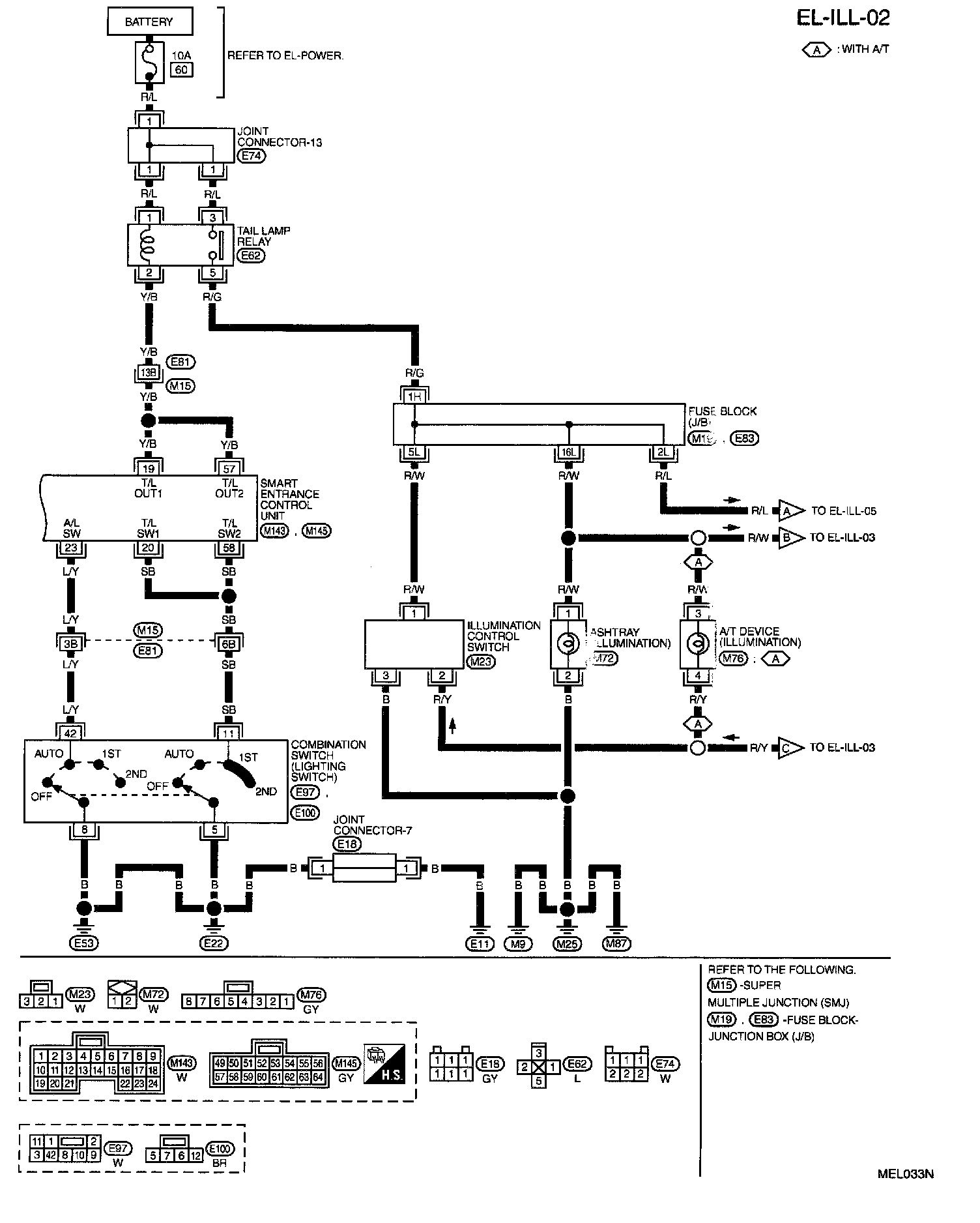

EL-ILL-02:

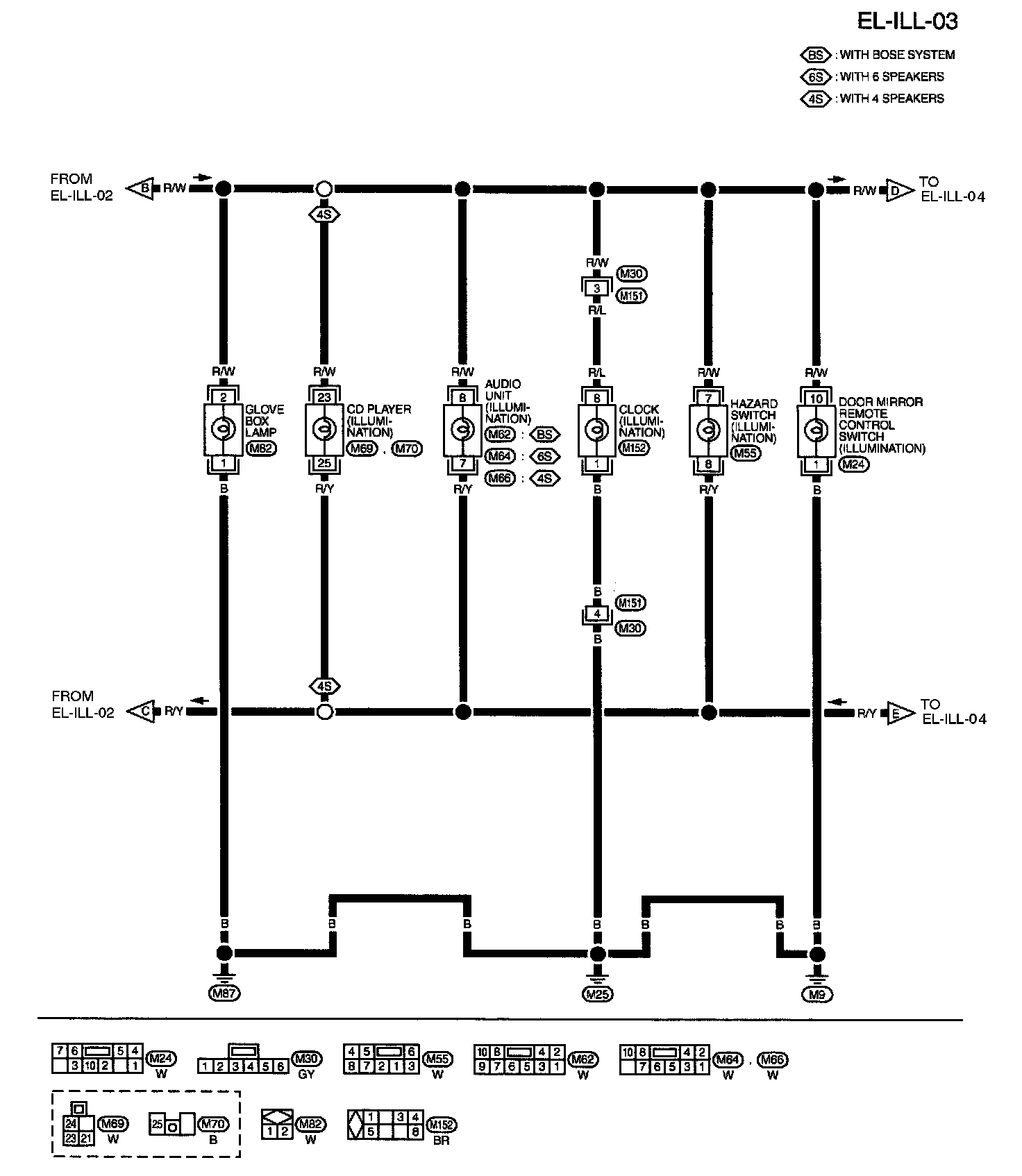

EL-ILL-03:

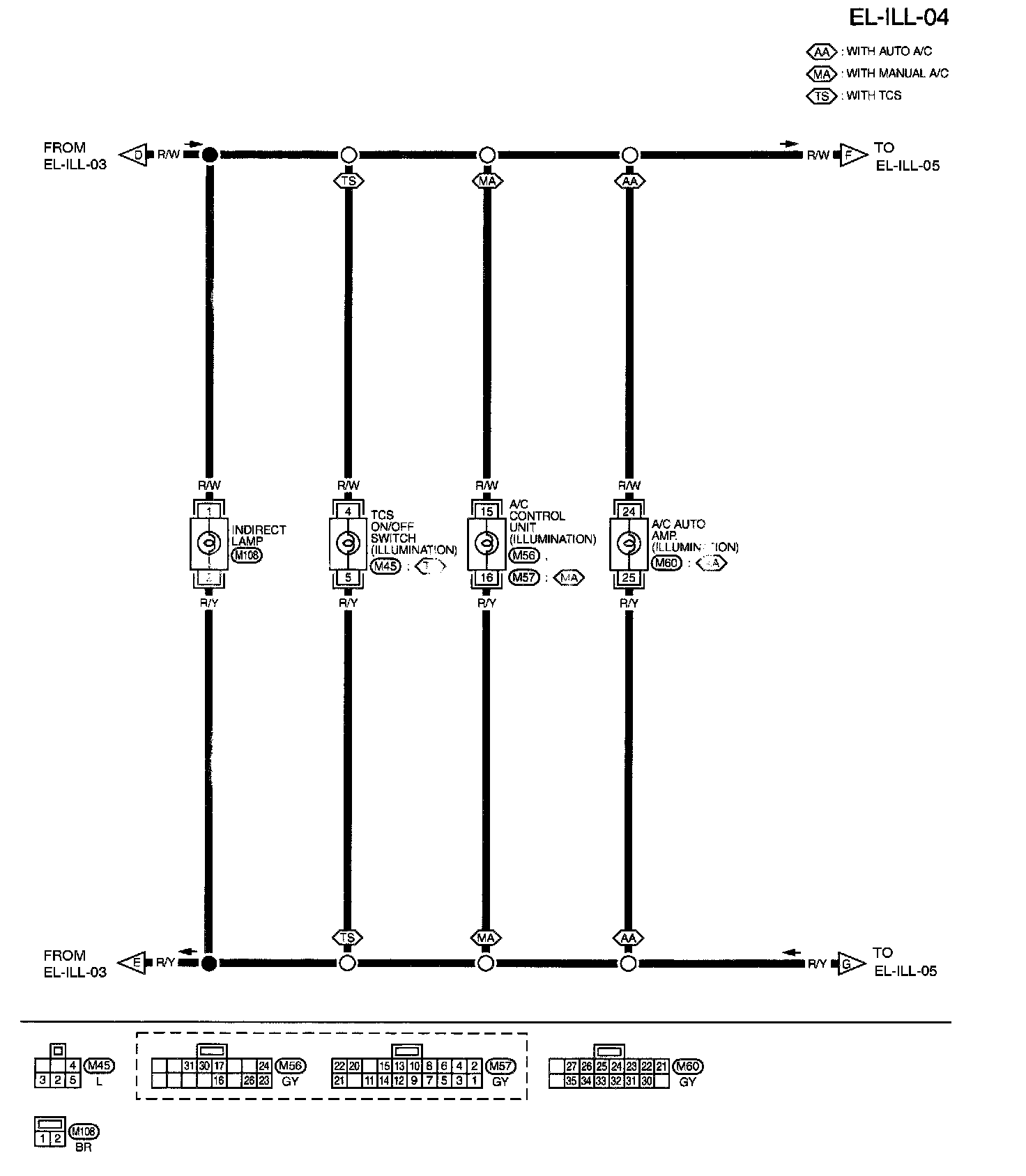

EL-ILL-04:

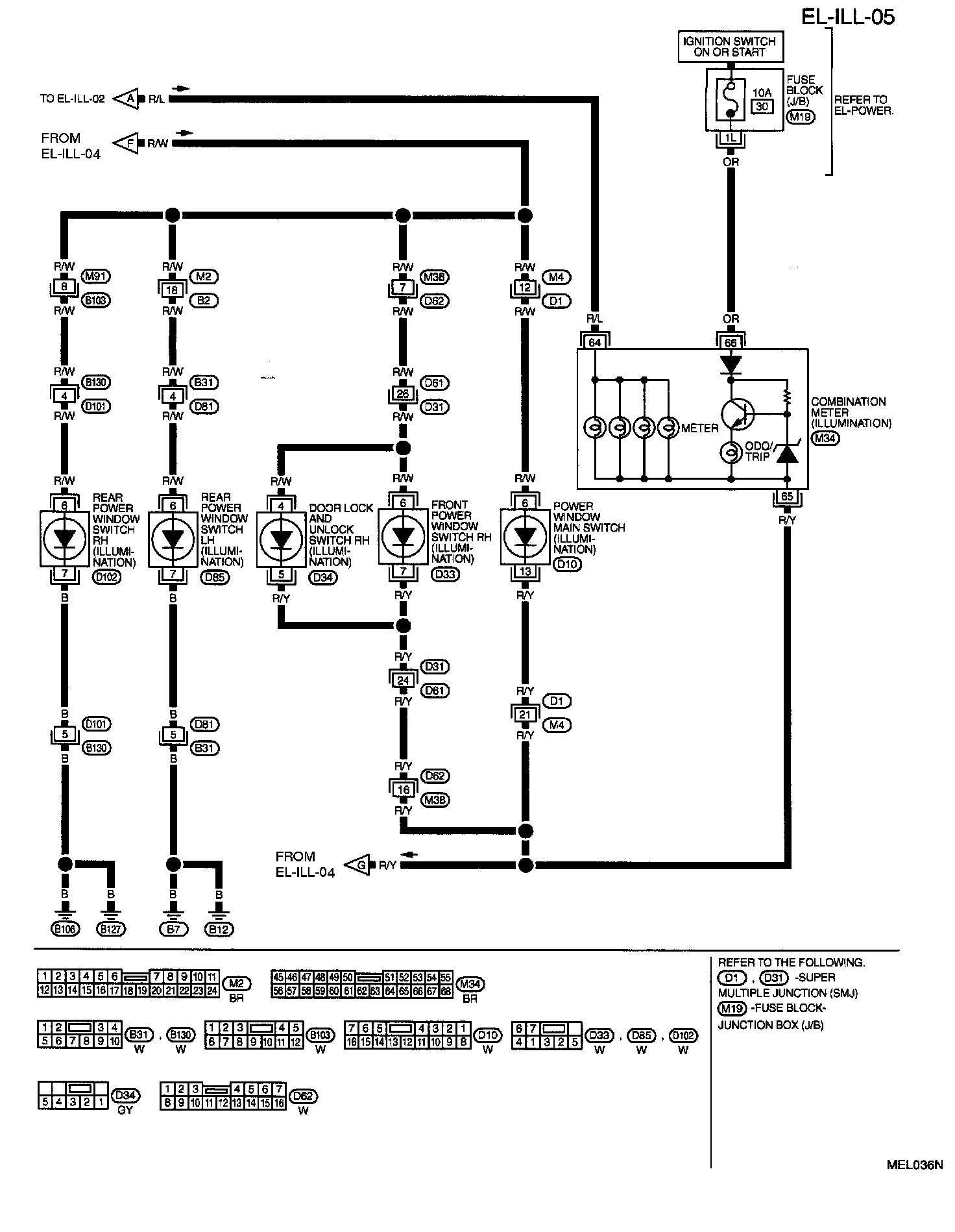

EL-ILL-05:
