BR-TCS

Wiring Diagram - With TCS -

Schematic:

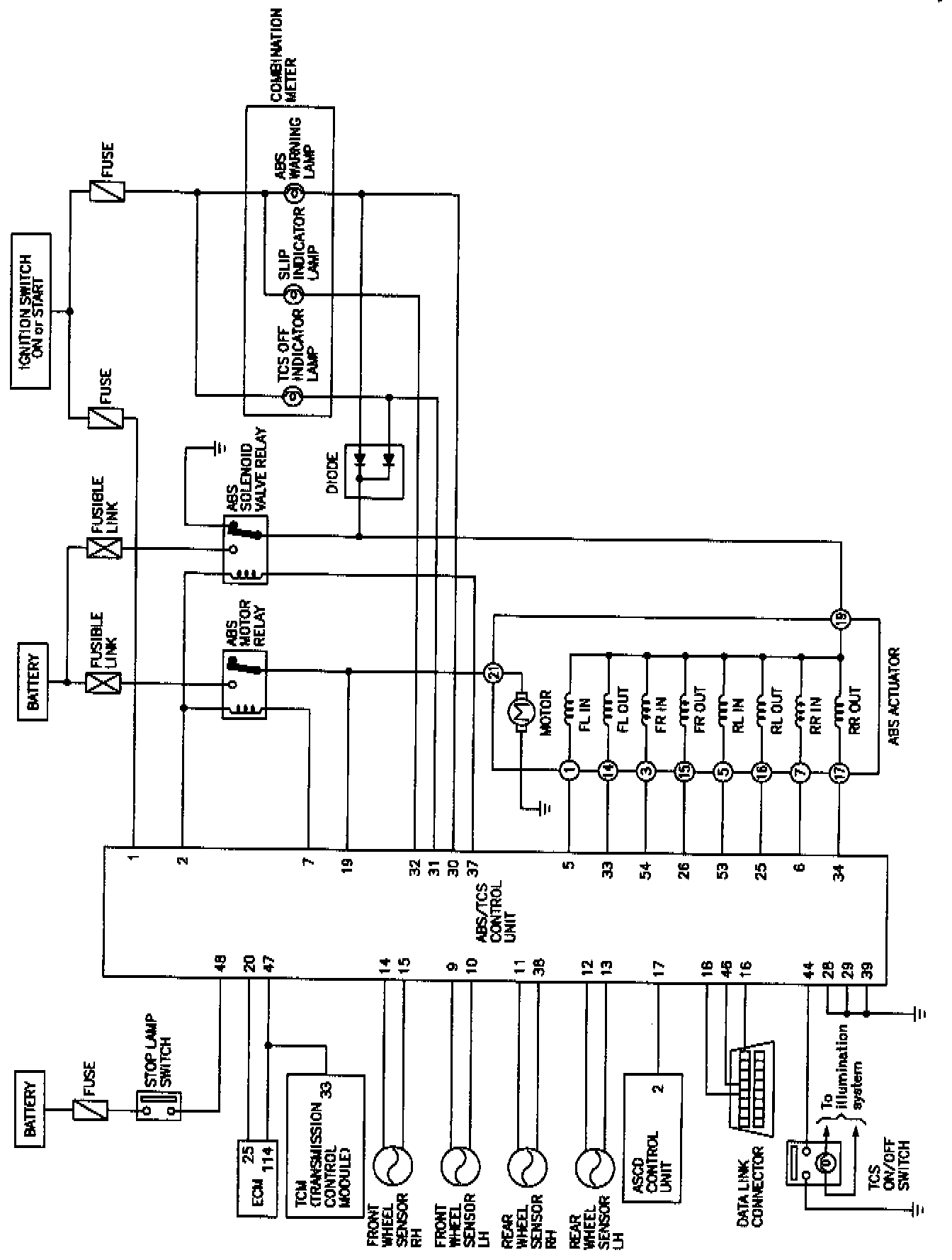

Part 1 Of 4:

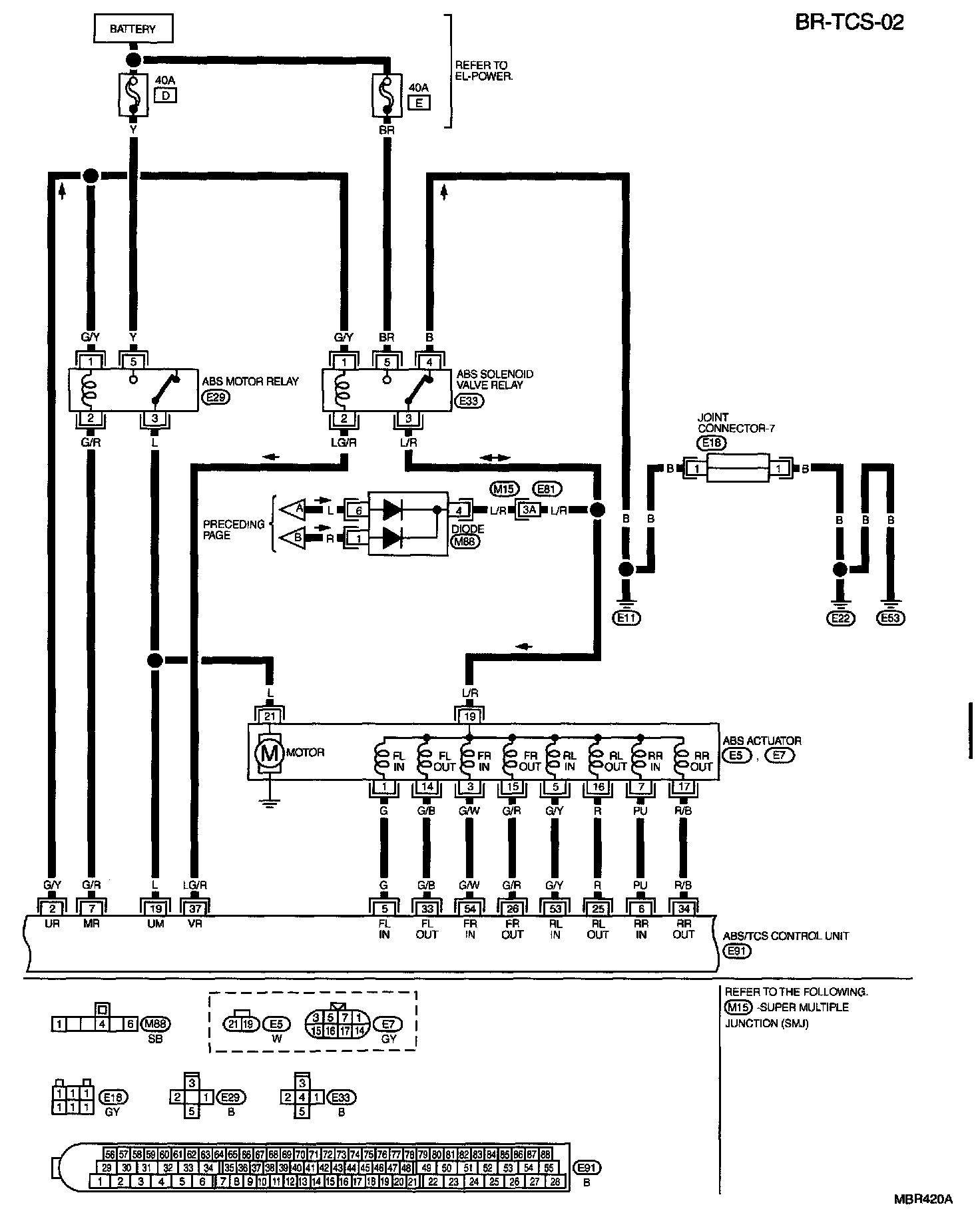

Part 2 Of 4:

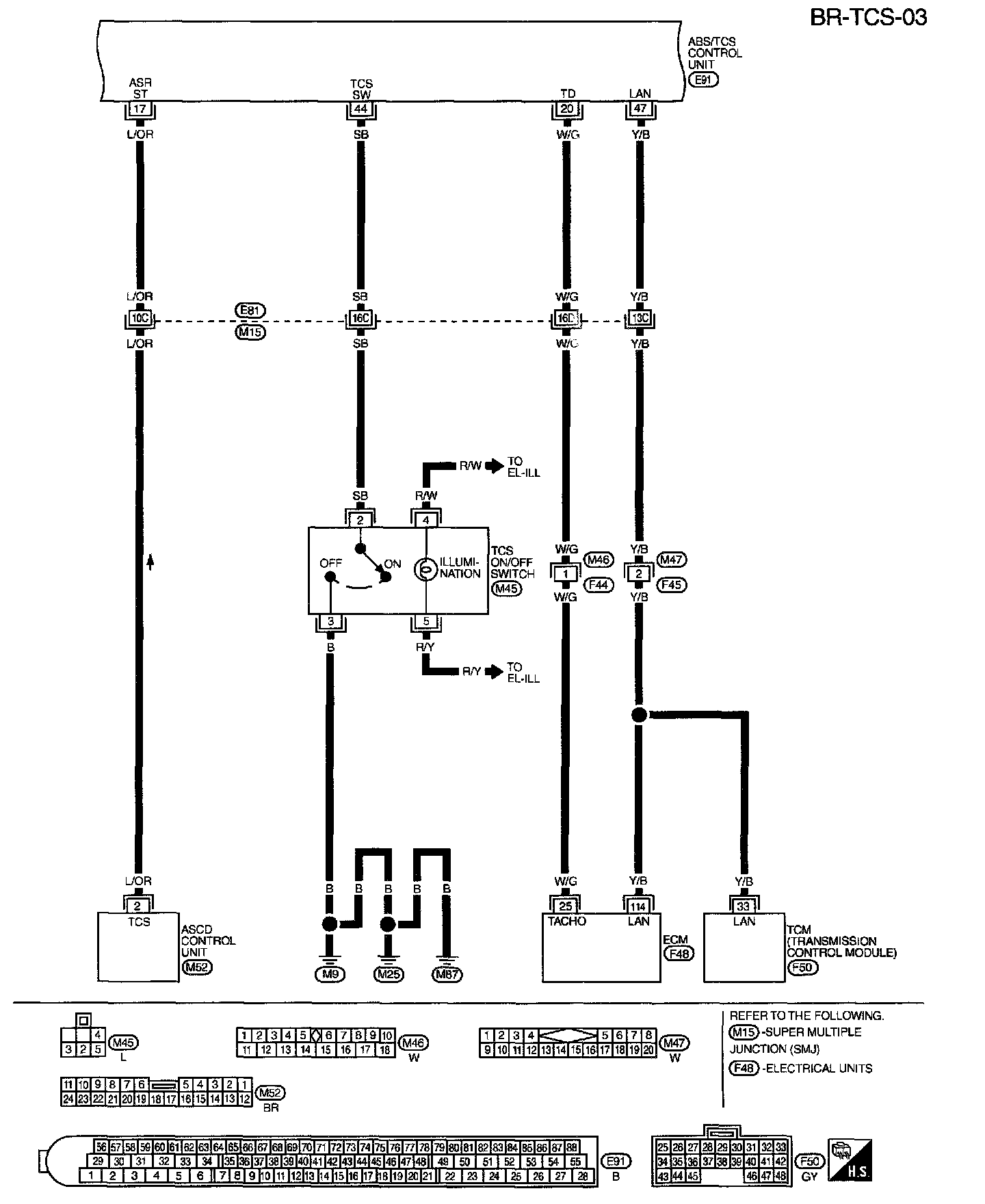

Part 3 Of 4:





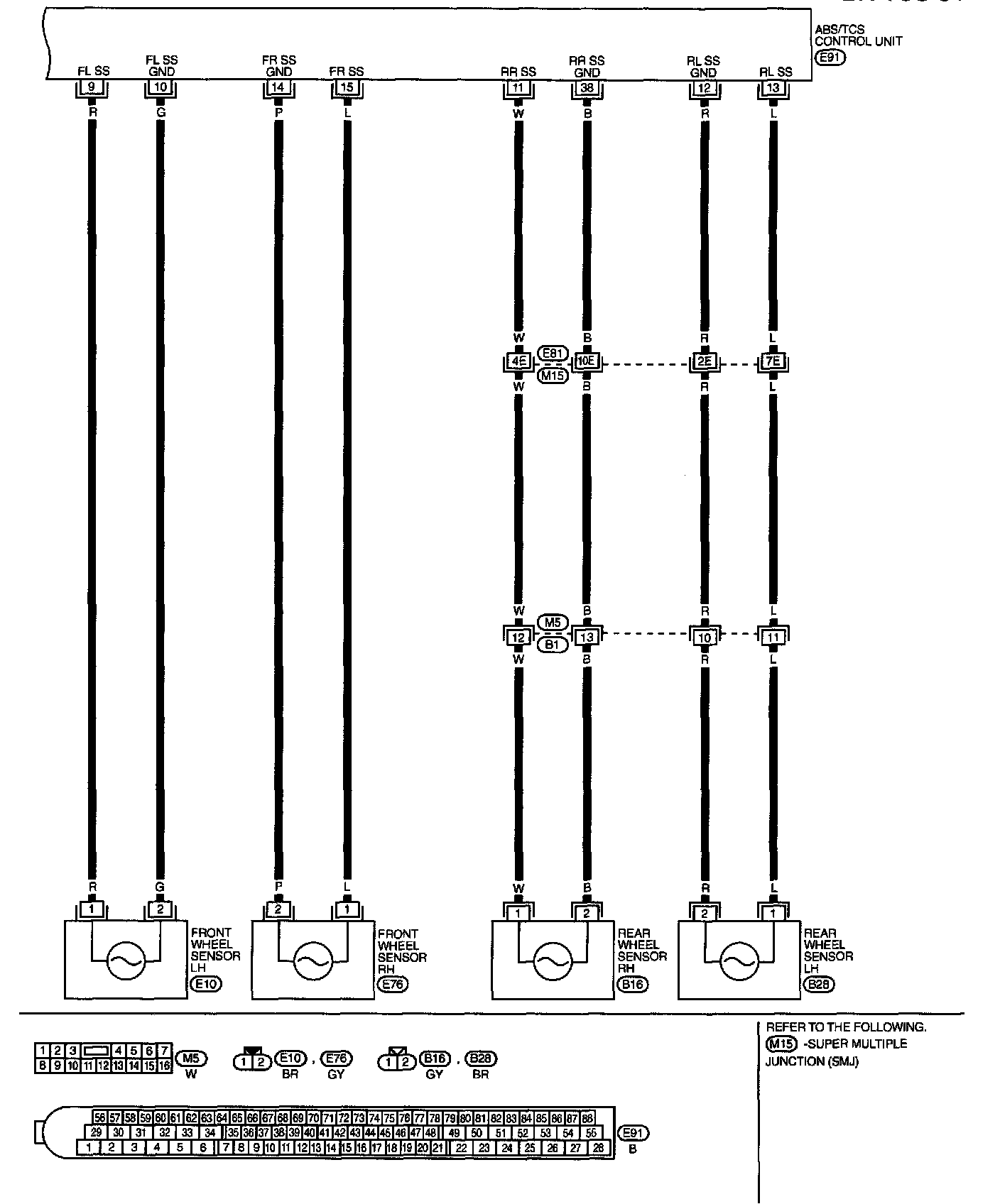

Part 4 Of 4:
