Maxima GXE V6-3.0L (VQ30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
Shift Indicator - A/T
Shift Indicator - A/T

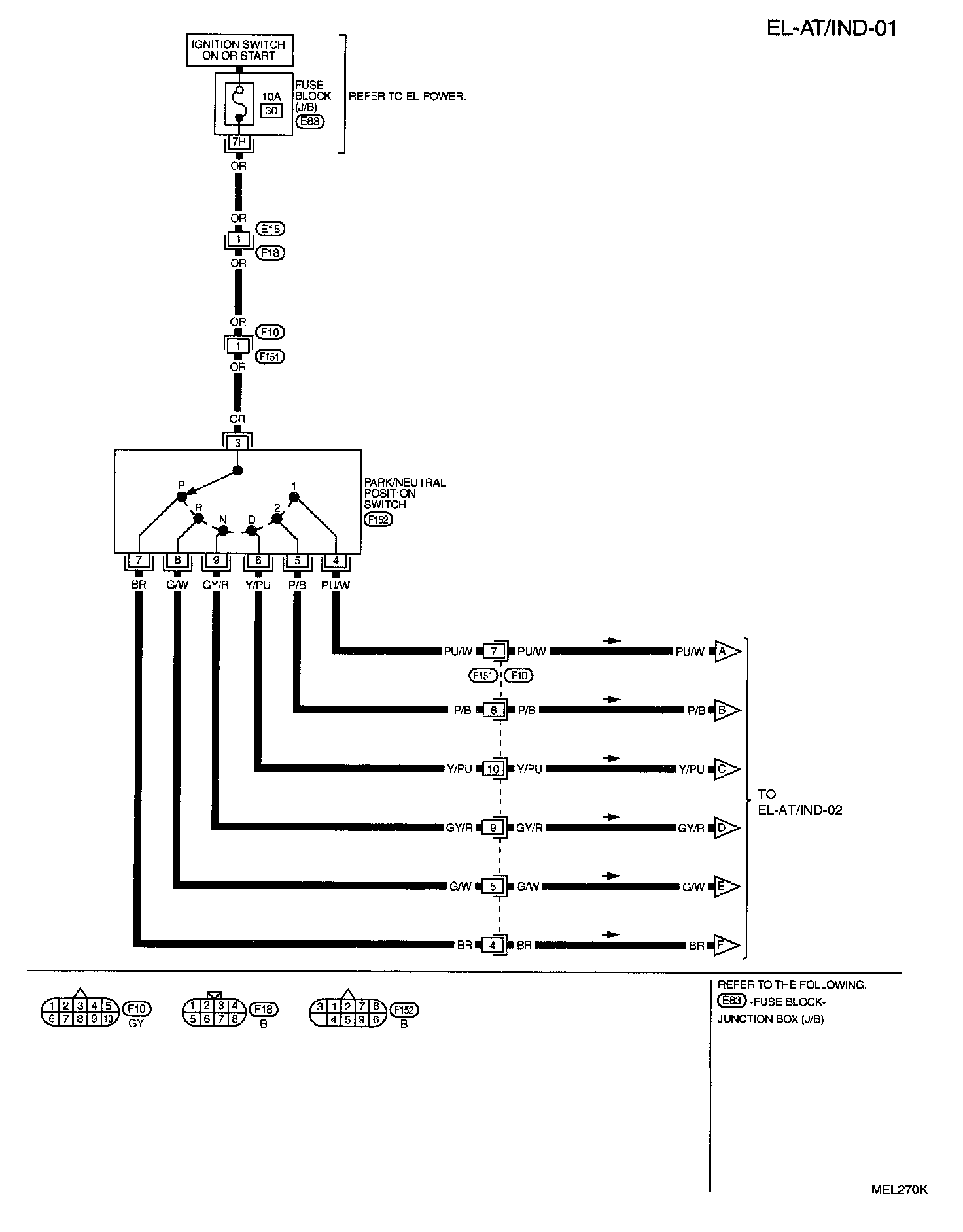

EL-AT/IND-01:

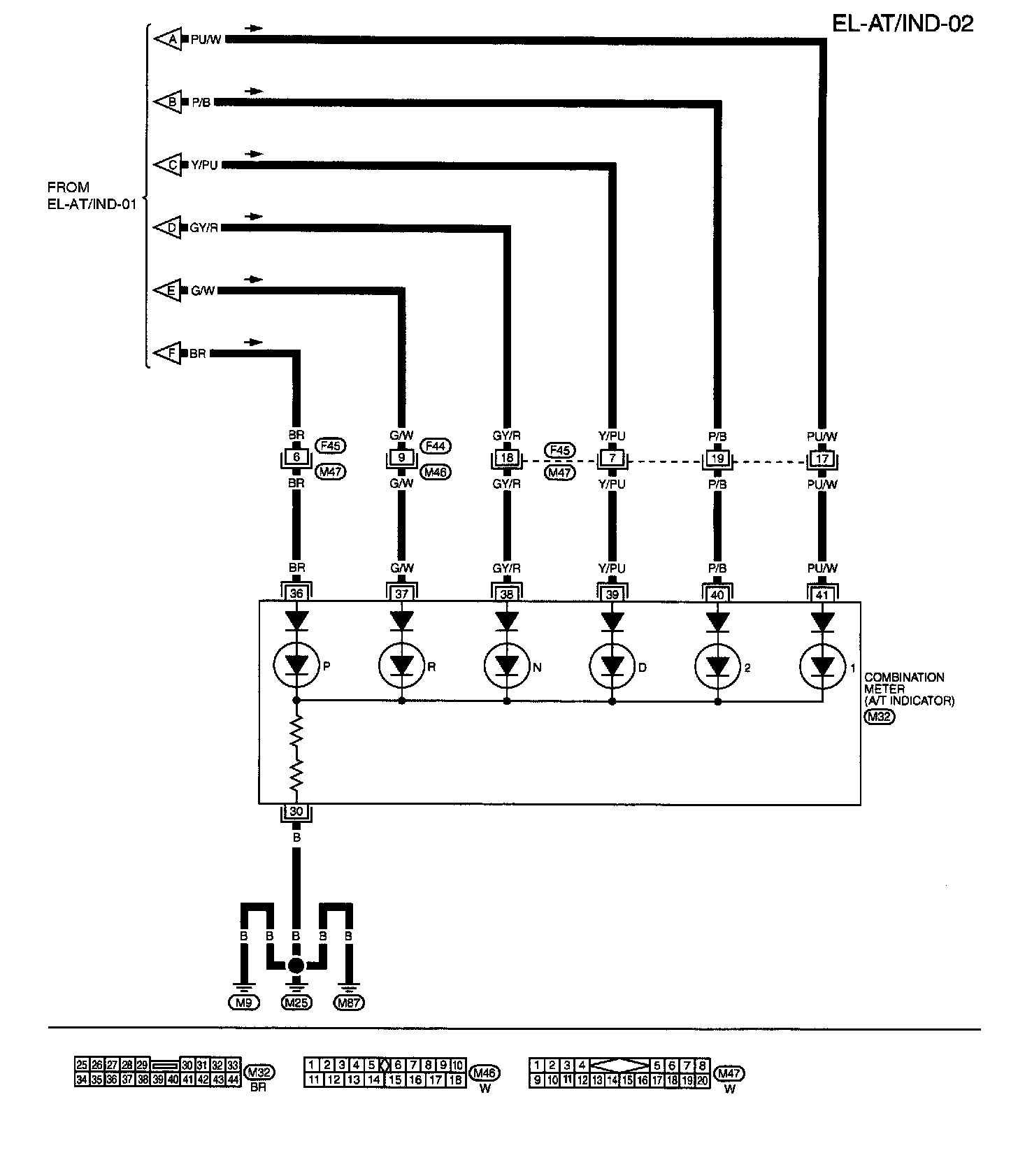

EL-AT/IND-02:
