Engine Room Harness
Engine Room Harness

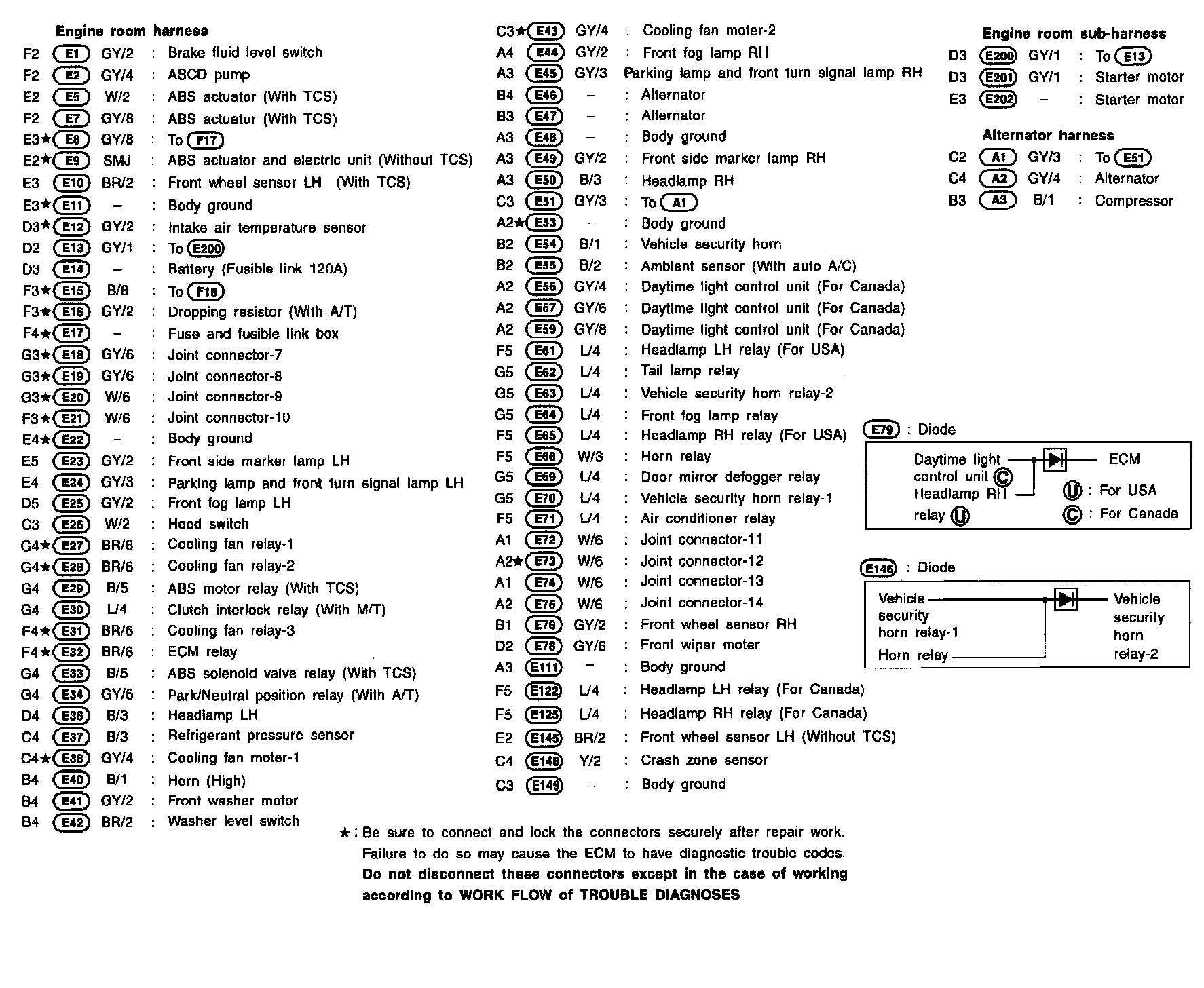

Engine Room Harness Part 1:

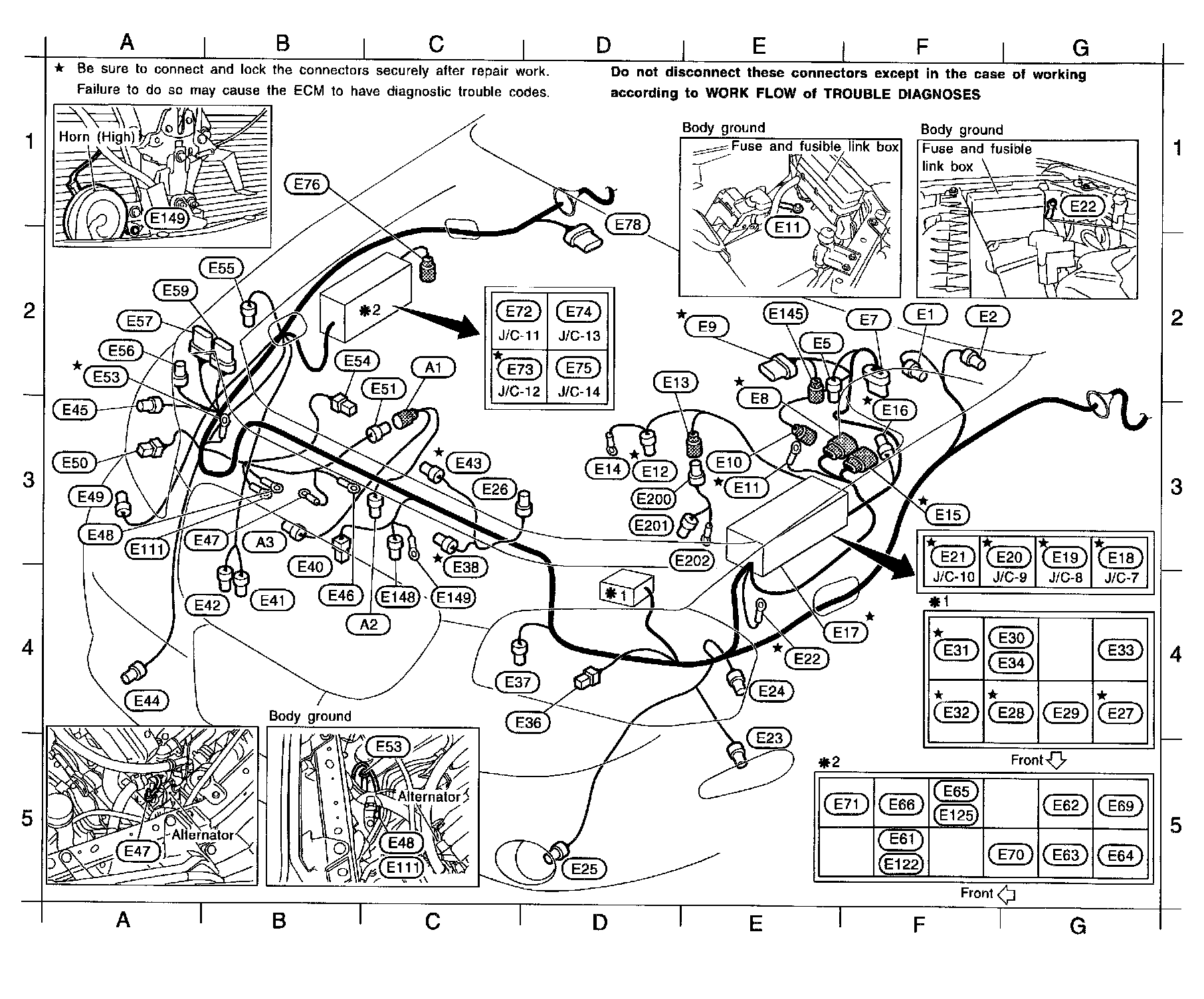

Engine Room Harness Part 2:

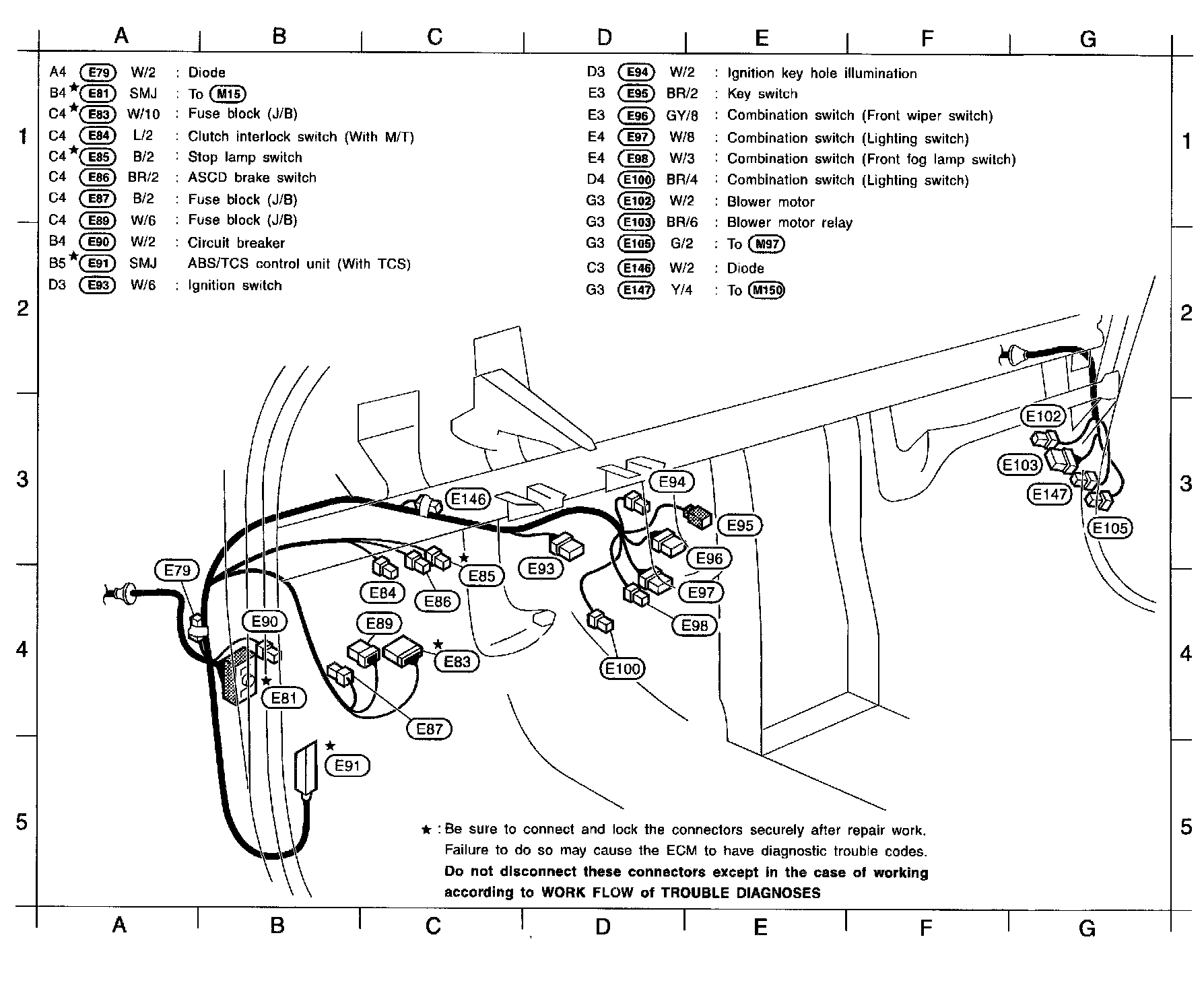

Harness Layout:
