Maxima GXE V6-3.0L (VQ30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Door Harness
Door Harness

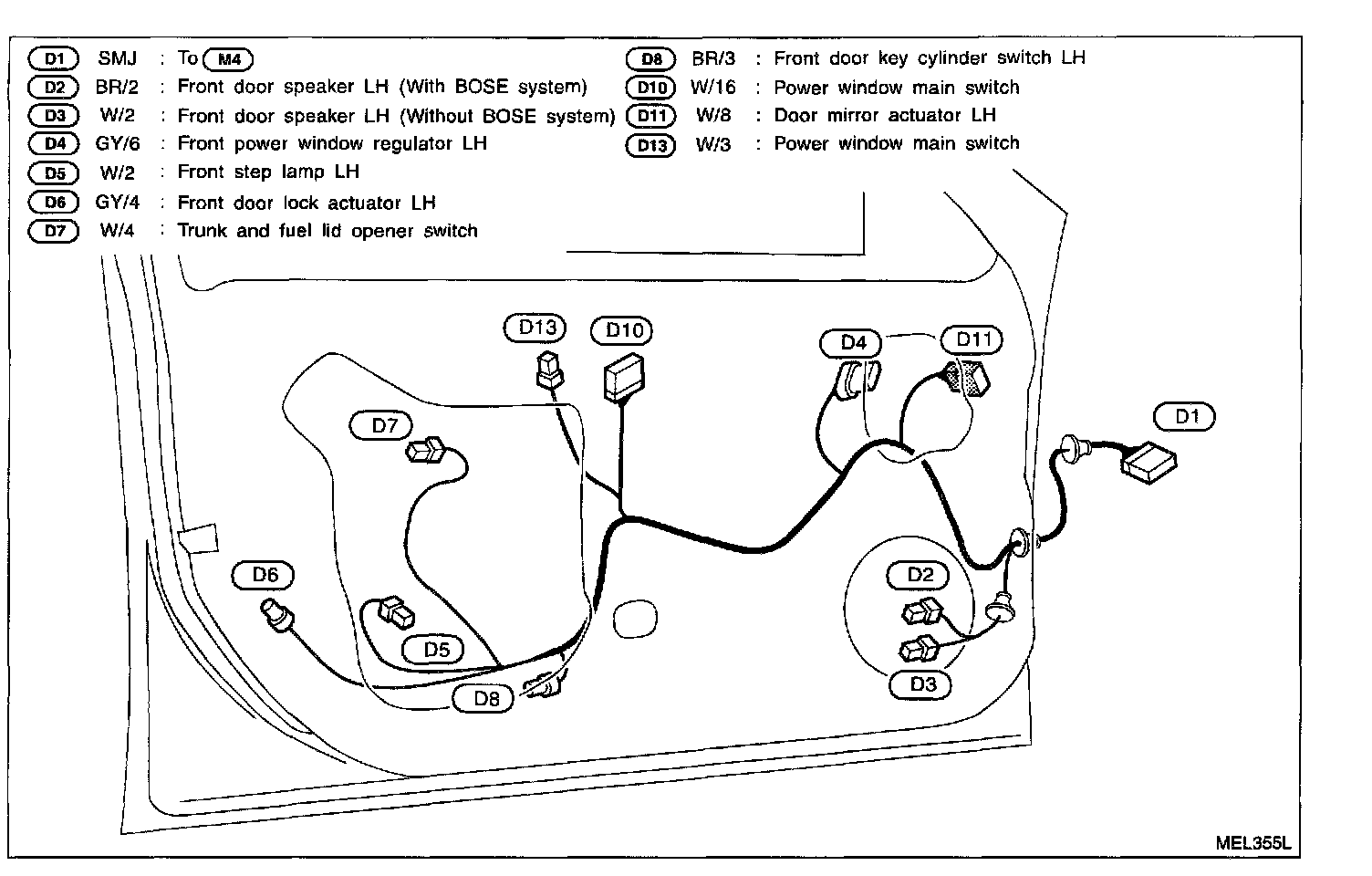

Front Door Harness - LH Side:
Front Door Harness - RH Side:

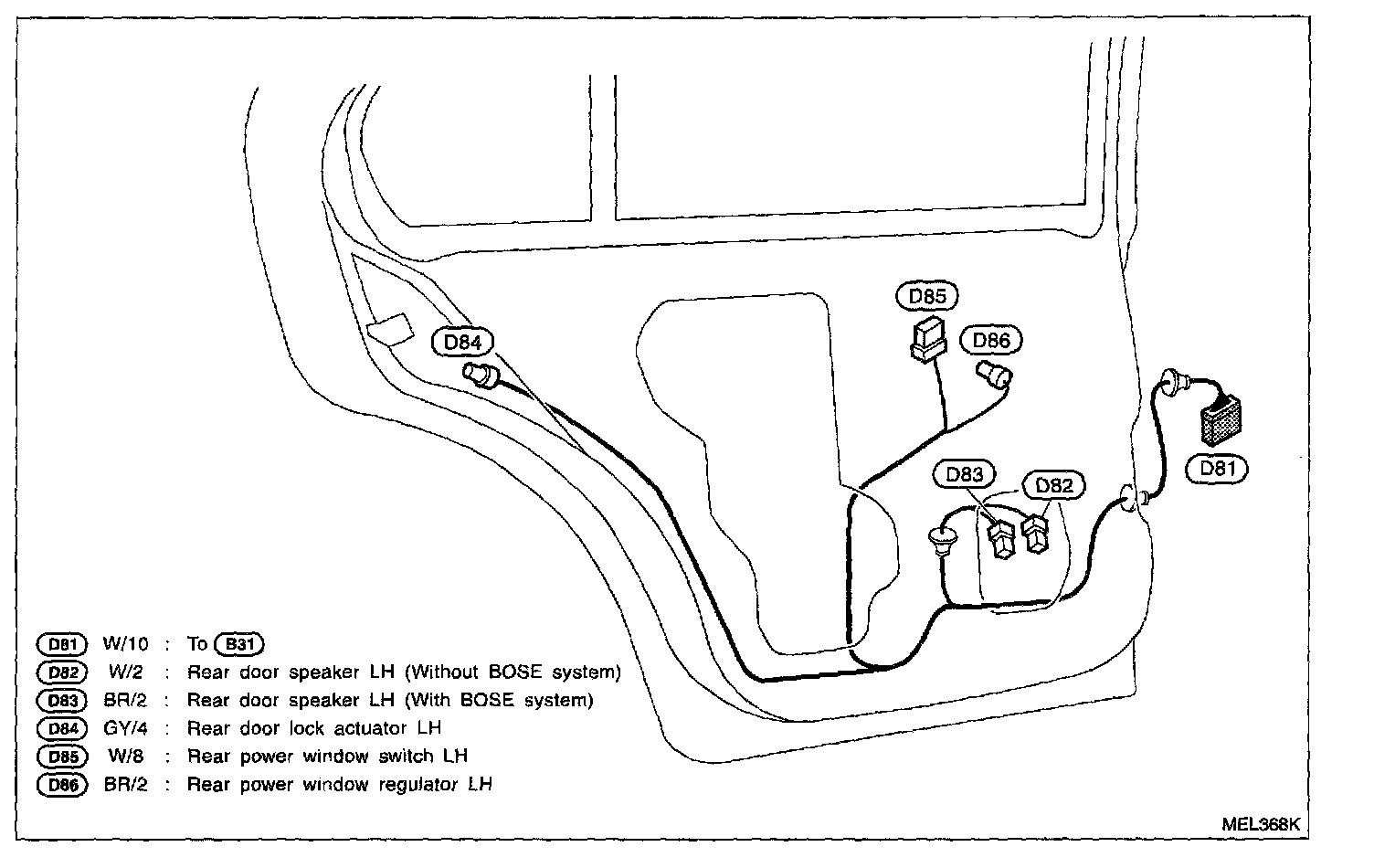

Rear Door Harness - LH Side:

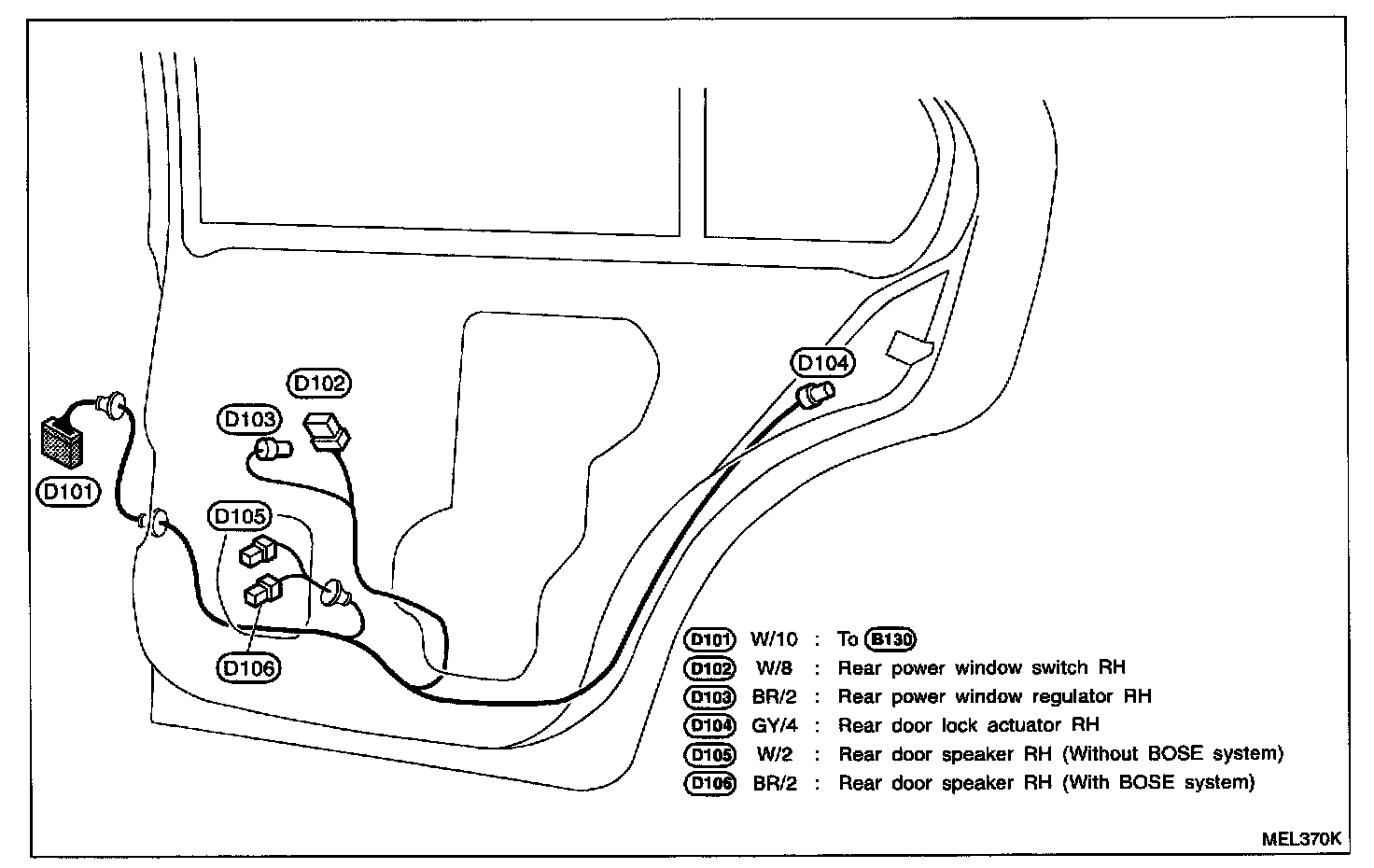

Rear Door Harness - RH Side:
