FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2001
>>
Maxima GXE V6-3.0L (VQ30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Body Harness
Body Harness

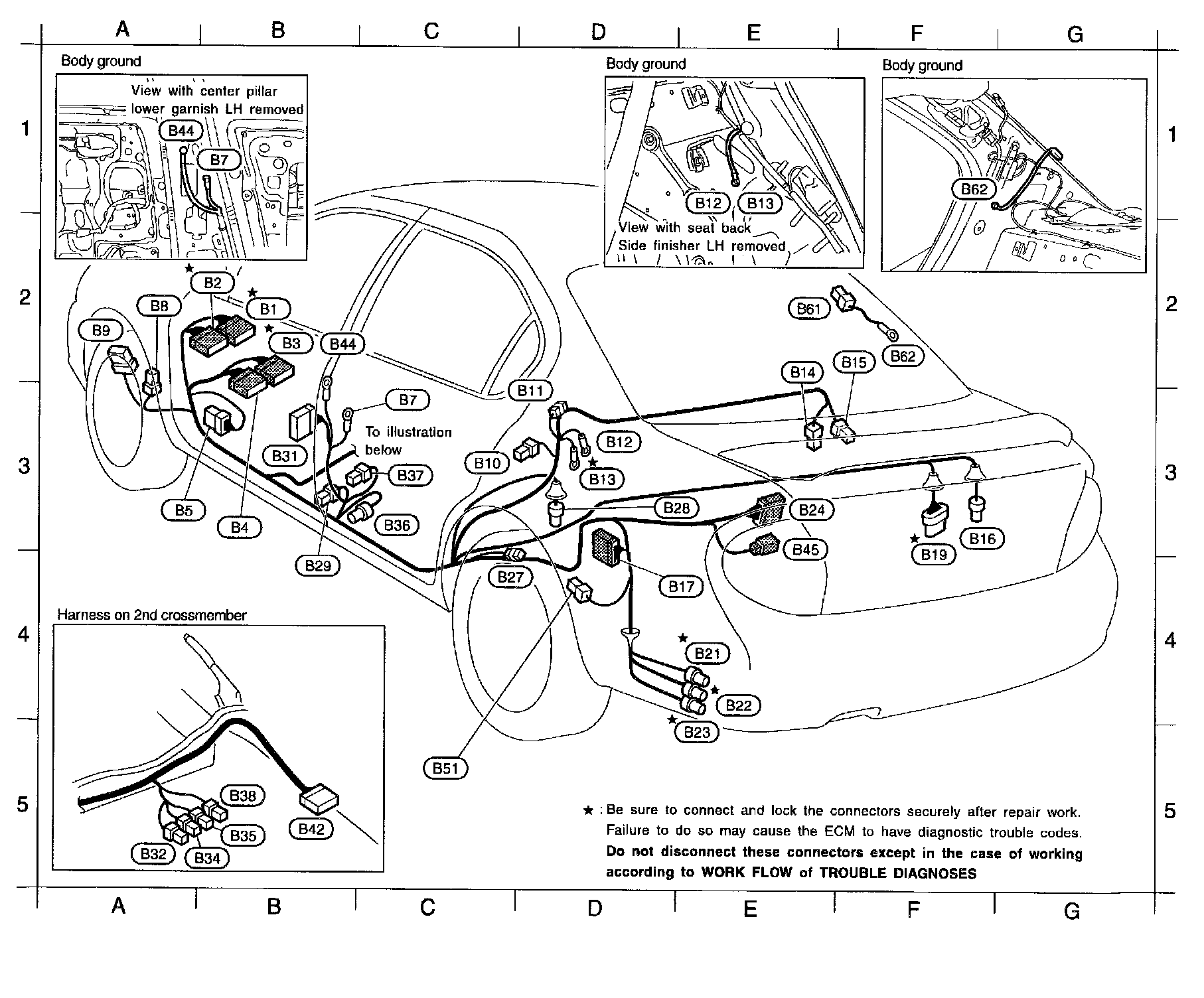

Body Harness Part 1:

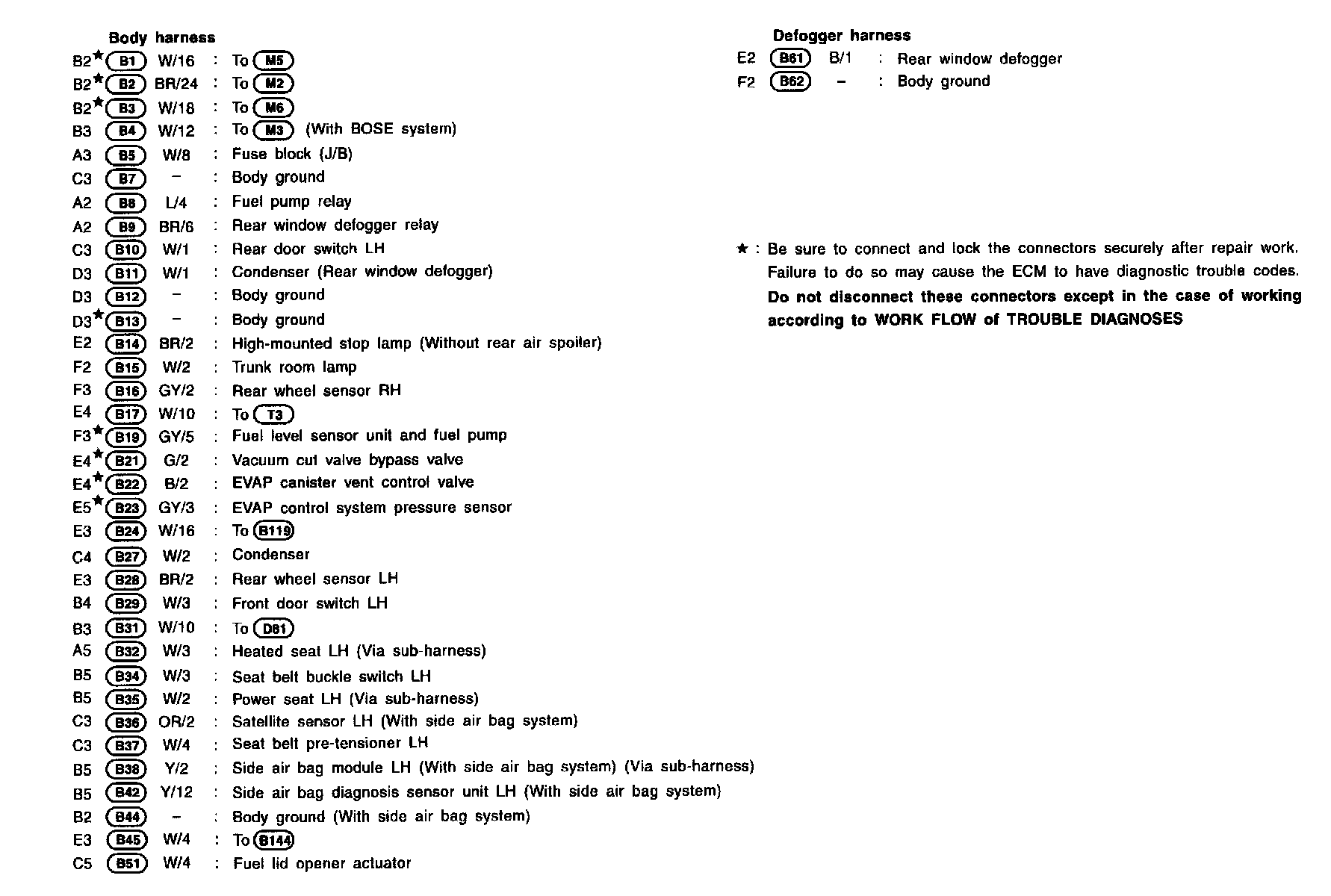

Body Harness Part 2:

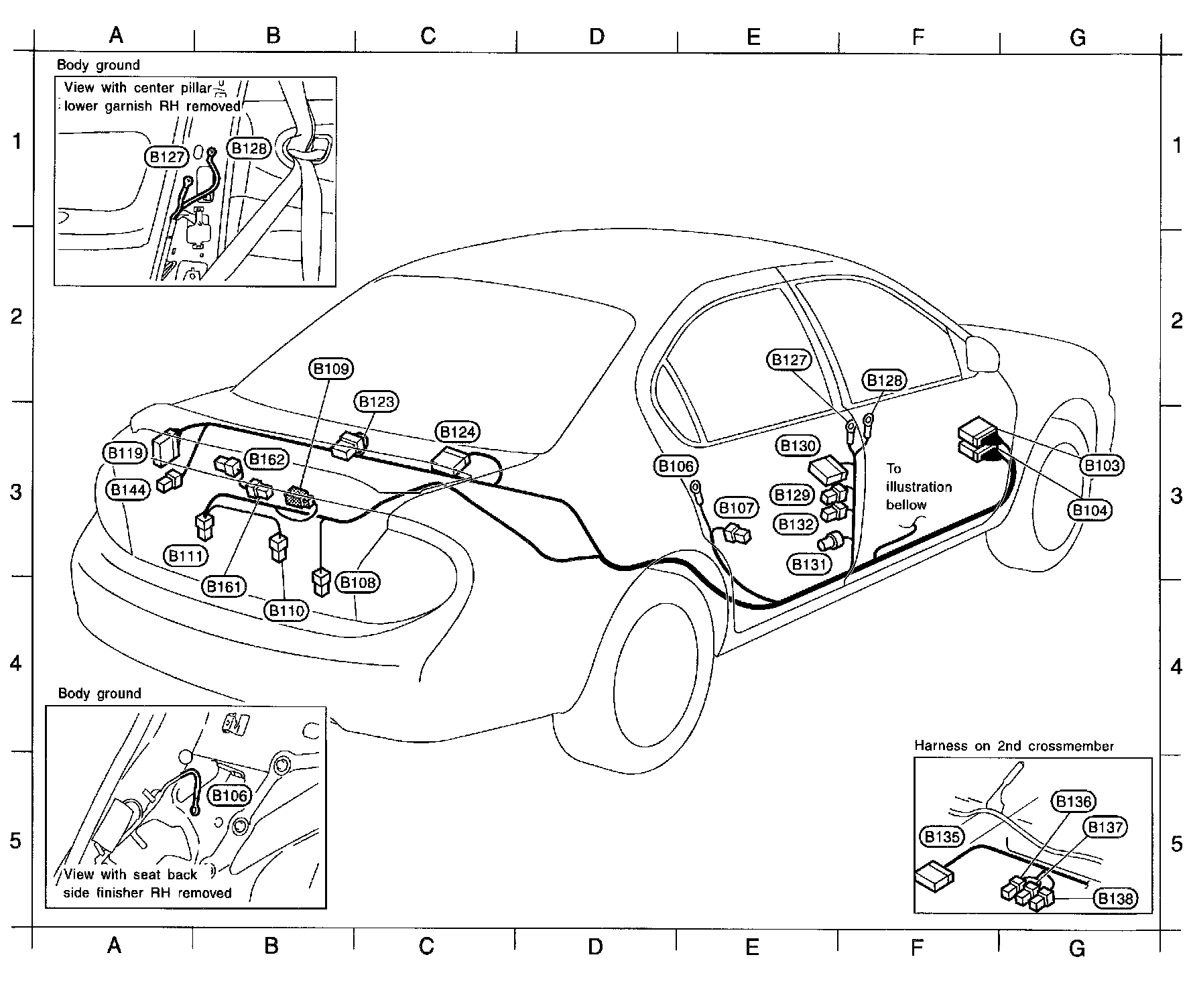

Body No.2 Harness Part 1:

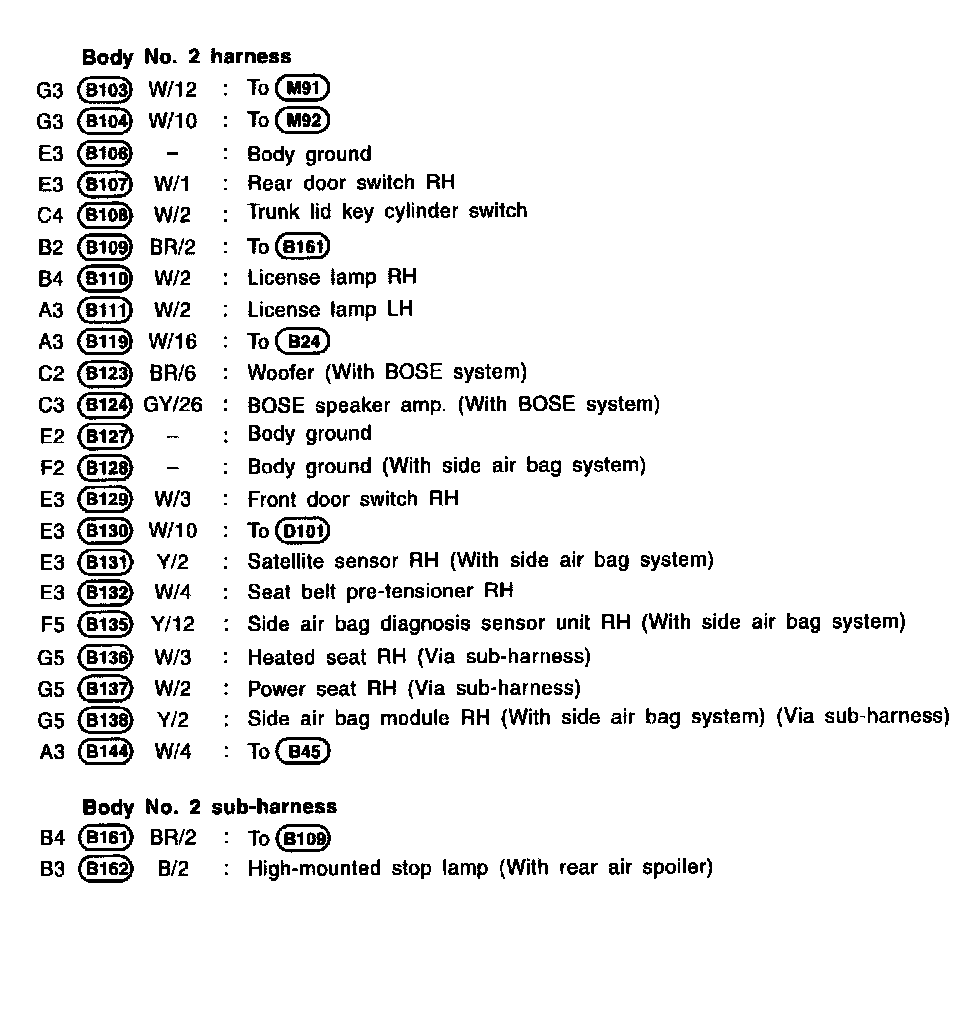

Body No.2 Harness Part 2:
