ASCD Component Inspections

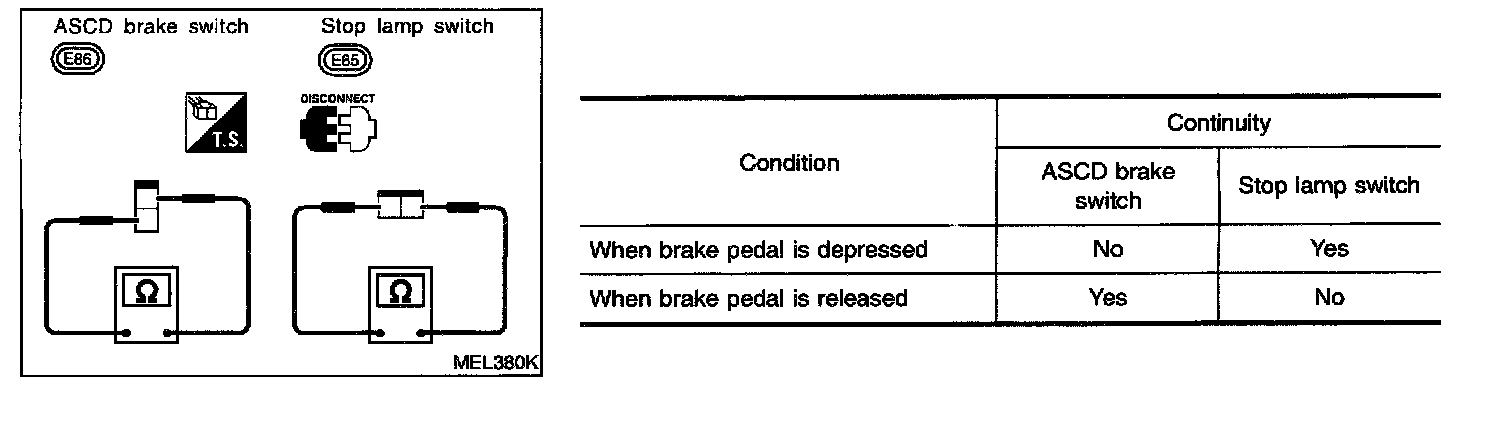

ASCD BRAKE SWITCH AND STOP LAMP SWITCH
Check each switch after adjusting brake pedal.

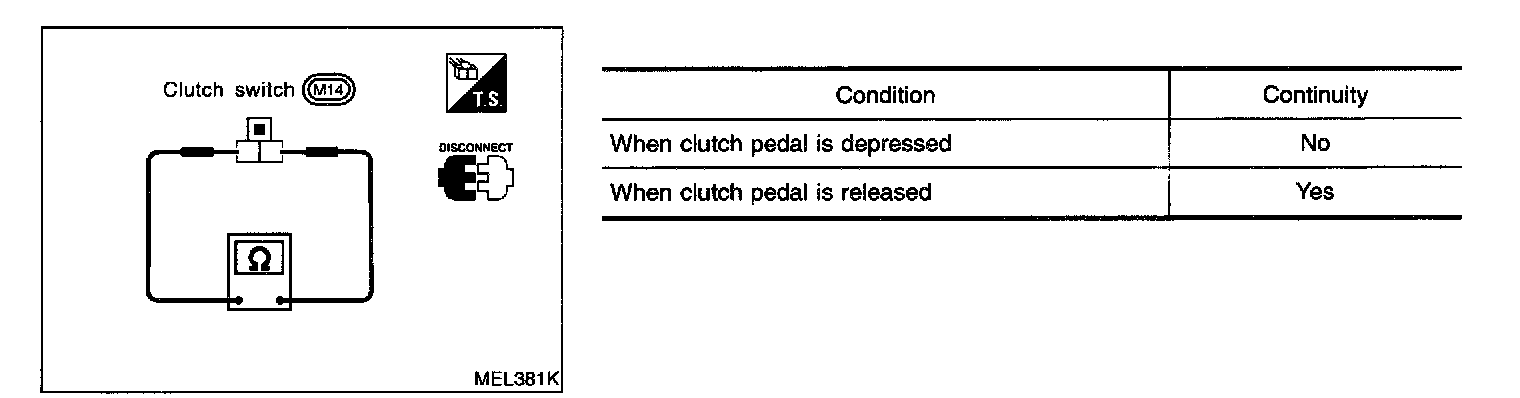

ASCD CLUTCH SWITCH (FOR M/T MODELS)

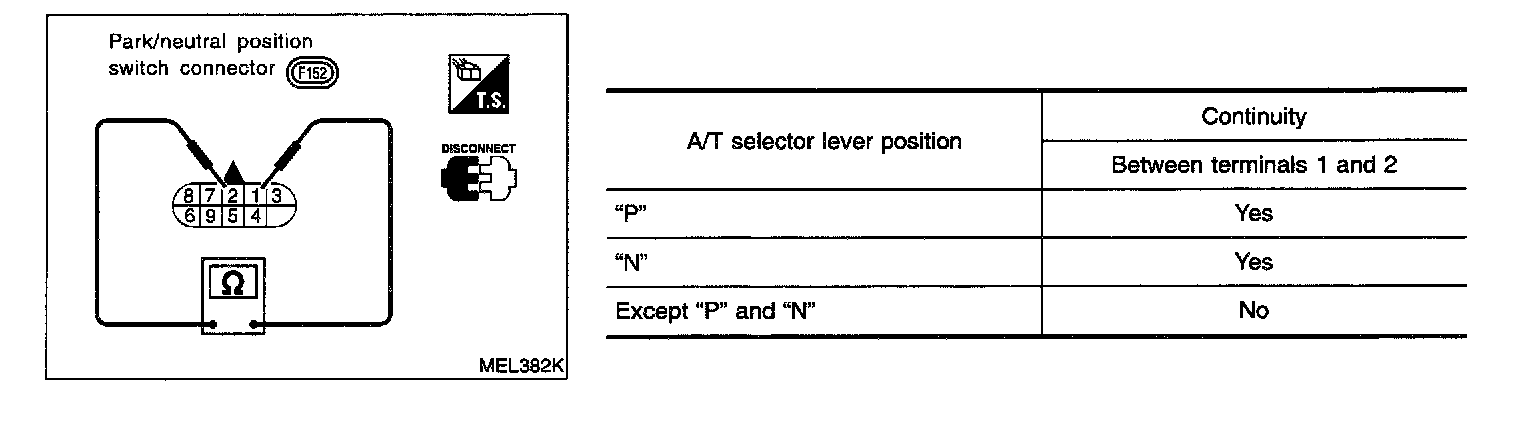

PARK/NEUTRAL POSITION SWITCH (FOR A/T MODELS)
