Parking Brake Control: Service and Repair

Removal and Installation

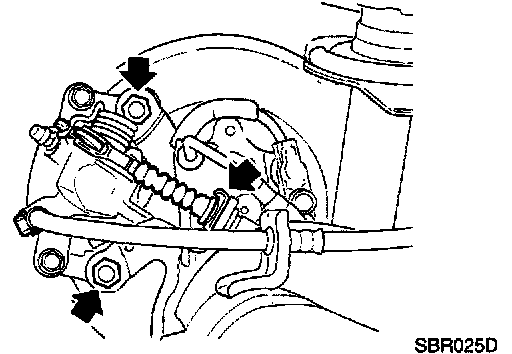

1. To remove parking brake cable, first remove center console.
2. Disconnect warning switch connector.





3. Remove bolts, slacken off and remove adjusting nut.
4. Remove lock plate and disconnect cable.

Inspection
1. Check control lever for wear or other damage. Replace if necessary.
2. Check wires for discontinuity or deterioration. Replace if necessary.
3. Check warning lamp and switch. Replace if necessary.
4. Check parts at each connecting portion and, if found deformed or damaged, replace.
