Hydraulic Control Assembly - Antilock Brakes: Service and Repair

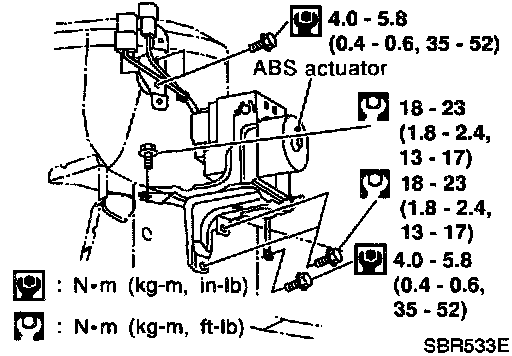

REMOVAL





1. Disconnect battery cable.
2. Drain brake fluid.
3. Remove air cleaner and duct.
4. Apply different colored paint to each pipe connector and actuator to prevent incorrect connection.
5. Disconnect harness connectors, brake pipes and remove fixing nuts and actuator ground cable.

INSTALLATION

CAUTION: After installation, refill brake fluid. Then bleed air.

1. Temporarily install actuator on the bracket.
2. Tighten actuator ground cable.
3. Connect brake pipes temporarily.
4. Tighten fixing nuts.
5. Tighten brake pipes.
6. Connect harness connectors and battery cable.
7. Install air cleaner and duct.
