Models Without TCS

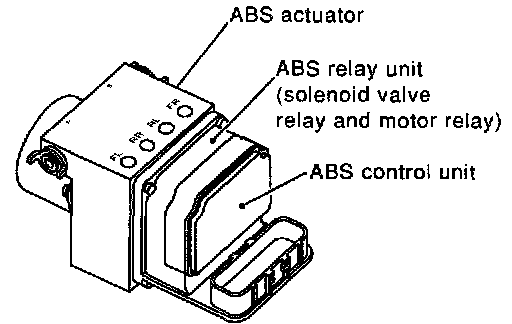

ABS ACTUATOR AND ELECTRIC UNIT





The ABS actuator and electric unit contains:
- An electric motor and pump
- Two relays
- Eight solenoid valves, each inlet and outlet for
- LH front
- RH front
- LH rear
- RH rear
- ABS control unit
This components controls the hydraulic circuit and increases, hold, or decreases hydraulic pressure to all or individual wheels. The ABS actuator and electric unit are not disassemble.

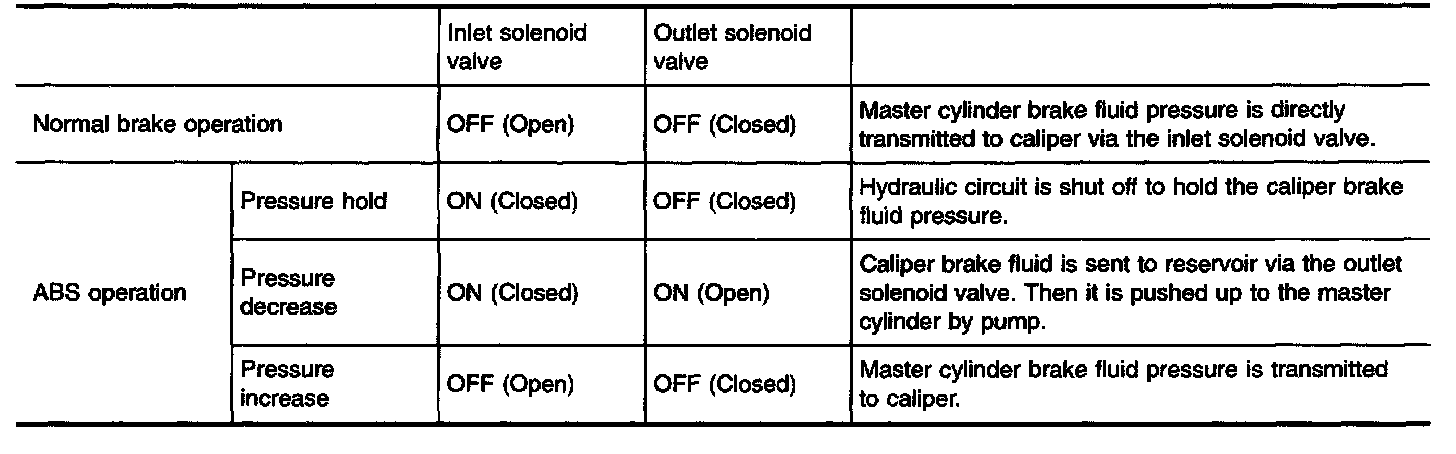

ABS Actuator Operation
