9. TCS Off Indicator Lamp Does Not Come On When Ignition Is On

TCS OFF Indicator Lamp Does Not Come On When Ignition Switch In Turned On

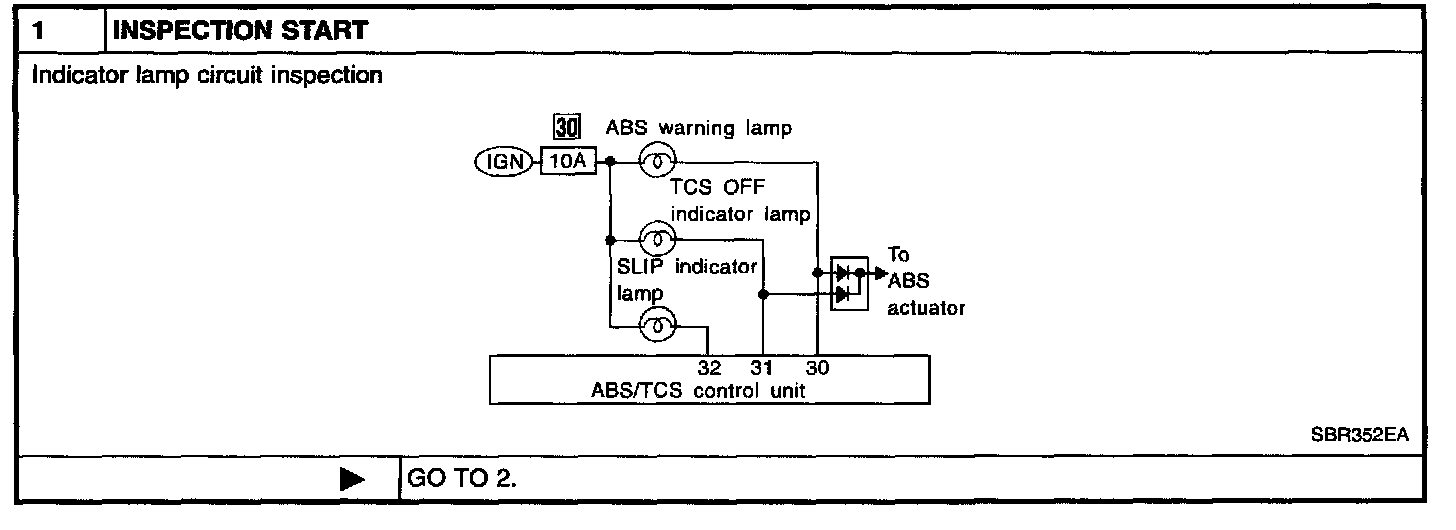

INSPECTION START

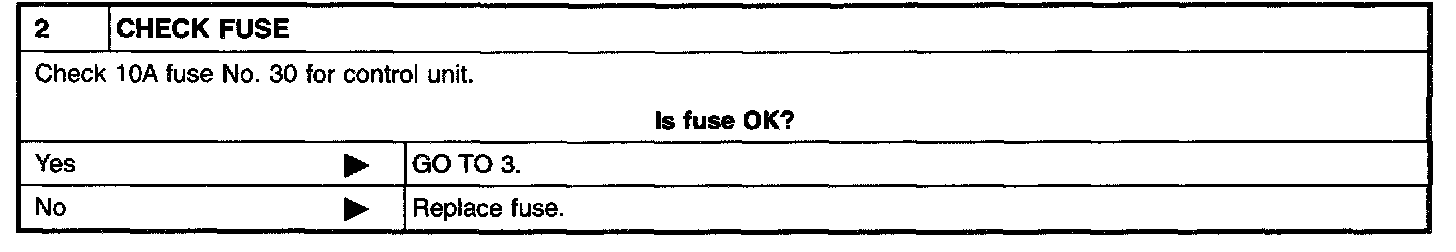

CHECK FUSE

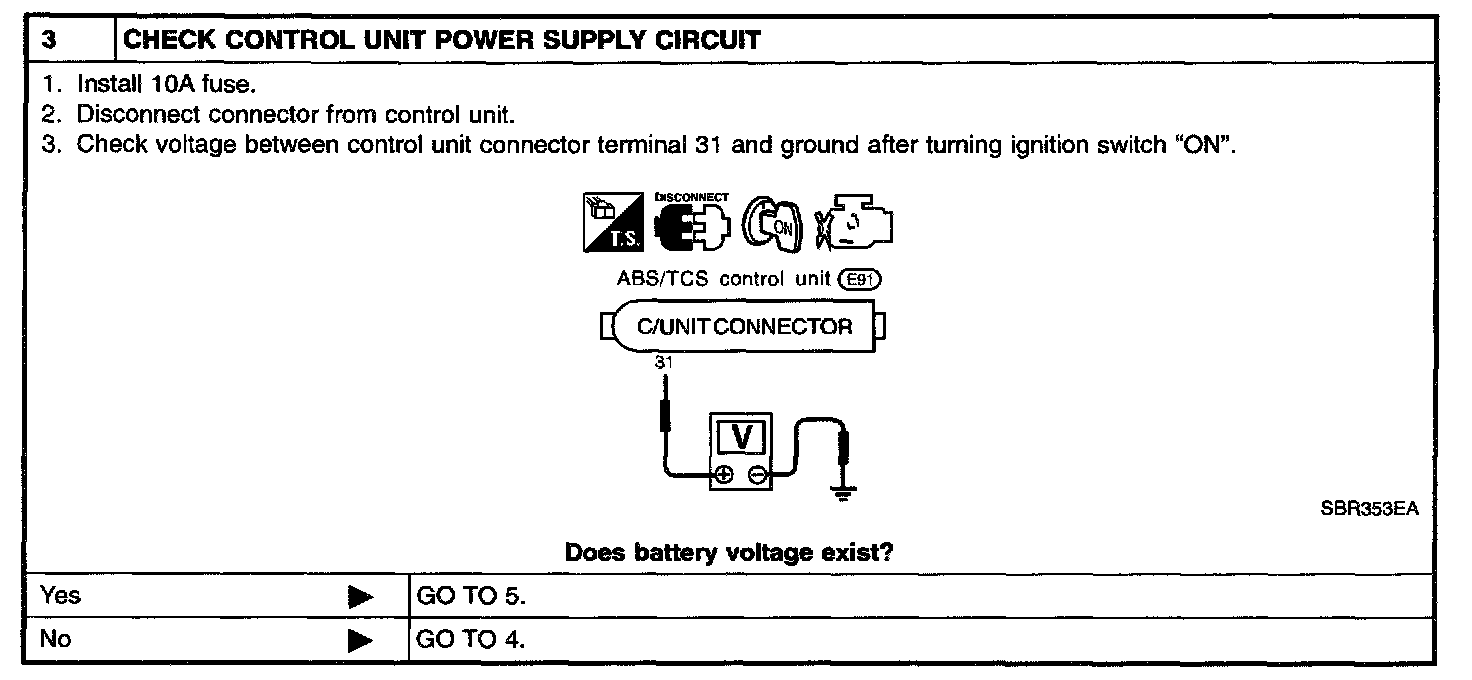

CHECK CONTROL UNIT POWER SUPPLY CIRCUIT

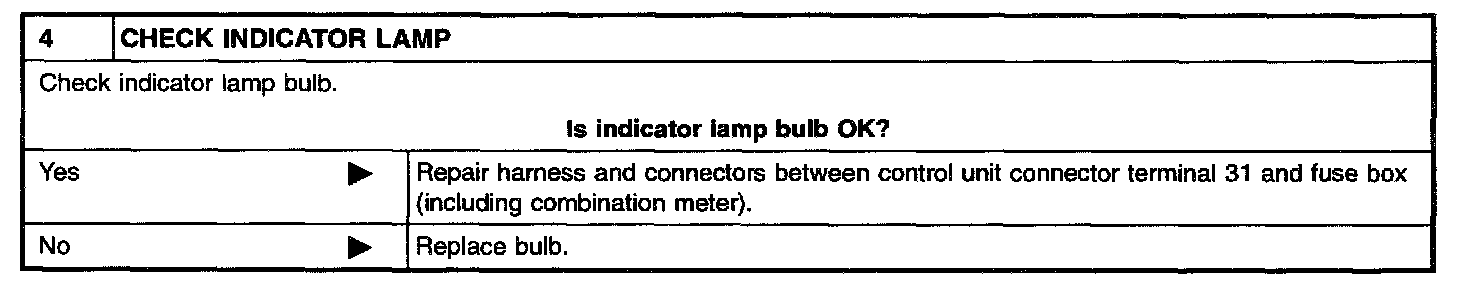

CHECK INDICATOR LAMP

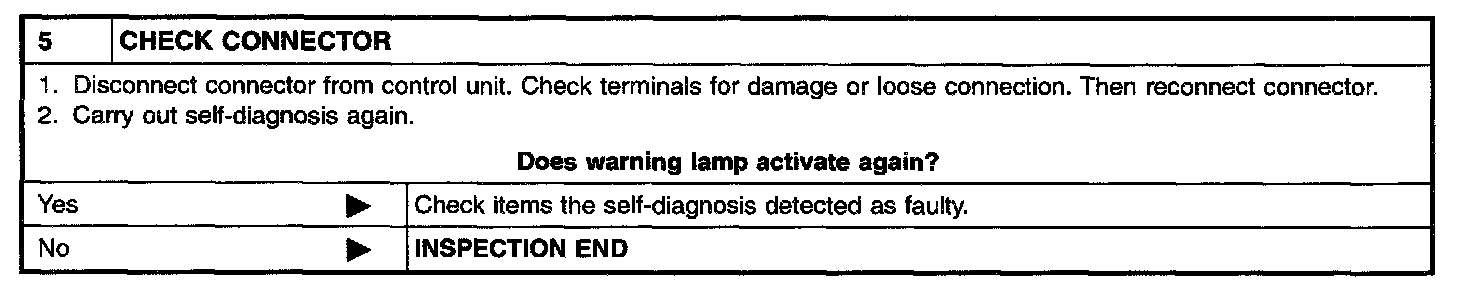

CHECK CONNECTOR
