8. Slip Indicator Lamp Does Not Come On When Ignition Switch Is On

SLIP Indicator Lamp Does Not Come On When Ignition Switch Is Turned On

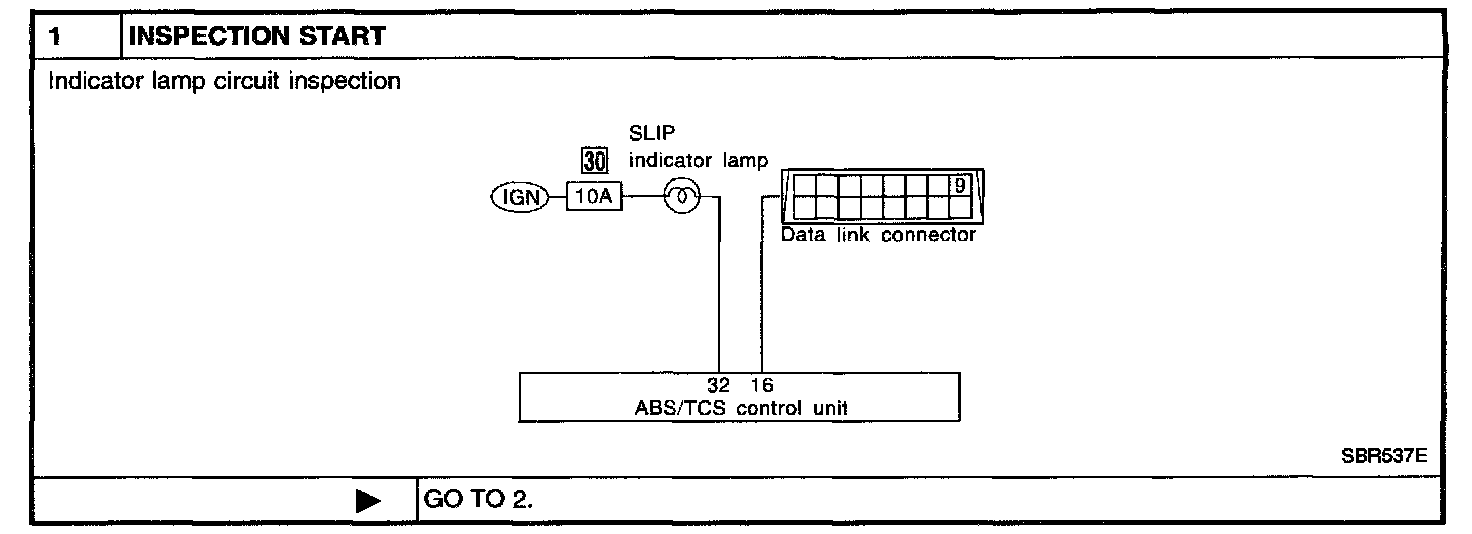

INSPECTION START

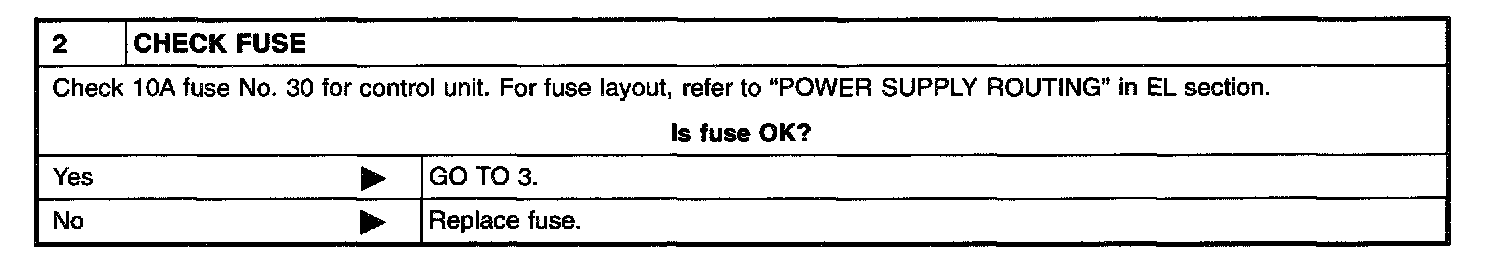

CHECK FUSE

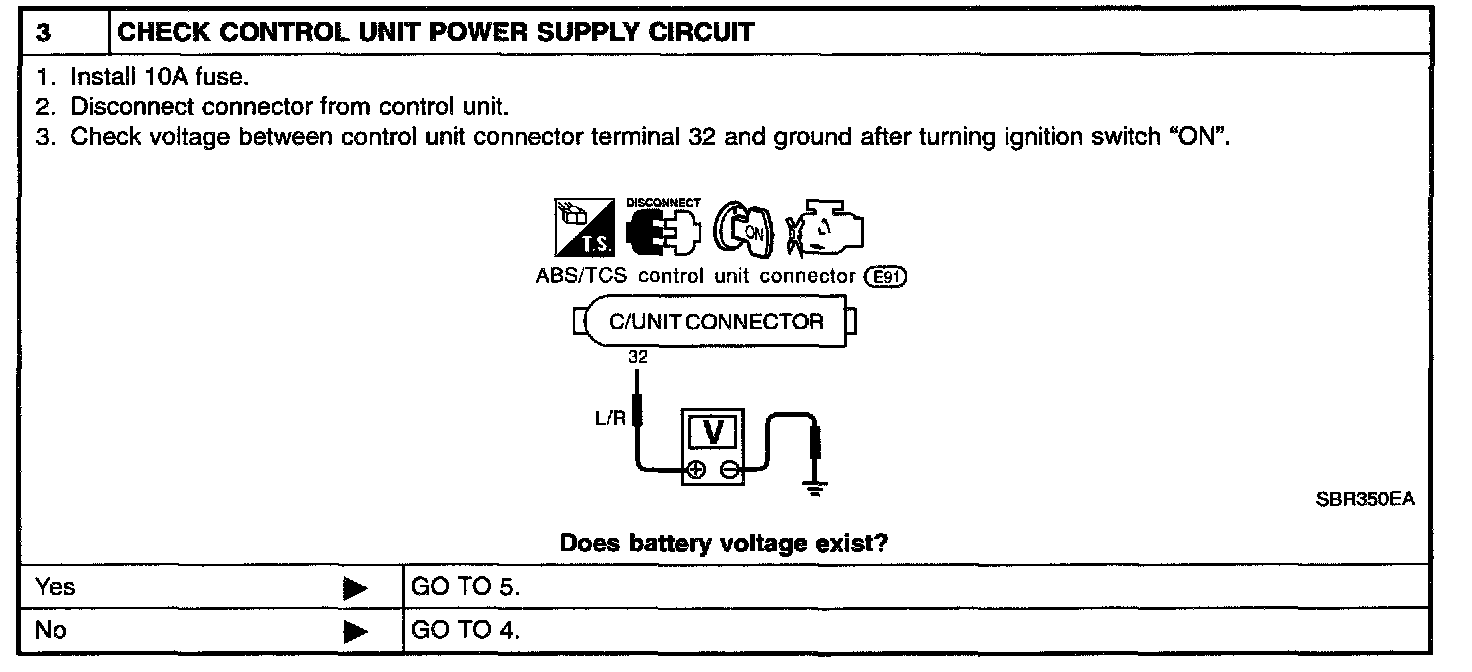

CHECK CONTROL UNIT POWER SUPPLY CIRCUIT

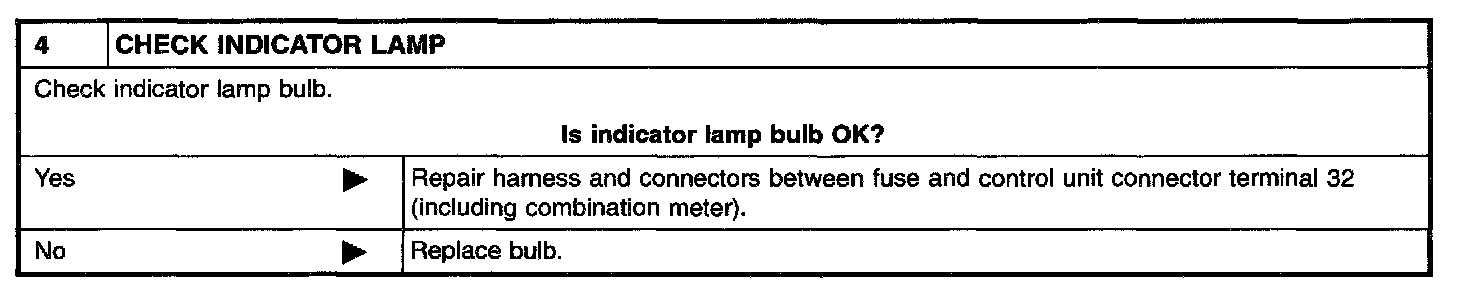

CHECK INDICATOR LAMP

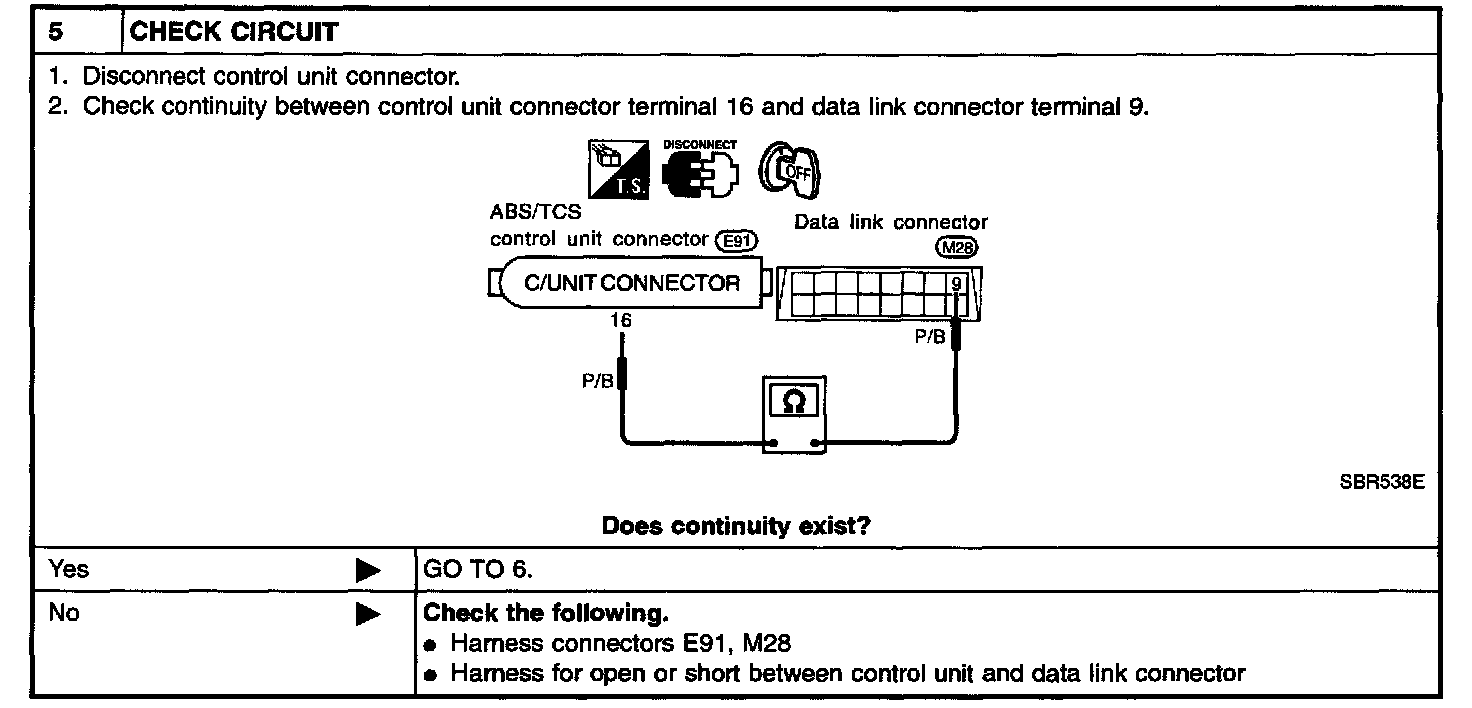

CHECK CIRCUIT

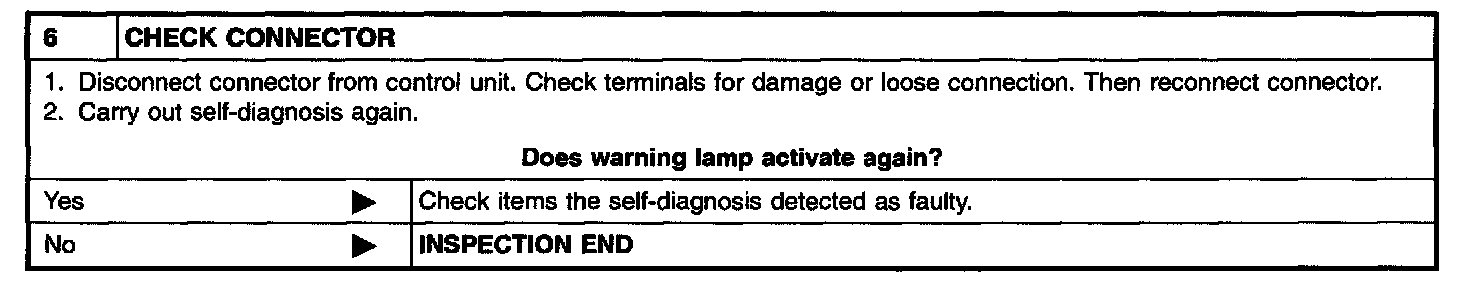

CHECK CONNECTOR
