7. Warning Lamp Stays On When Ignition Switch Is On

ABS Warning Lamp Stays On When Ignition Switch Is Turned On

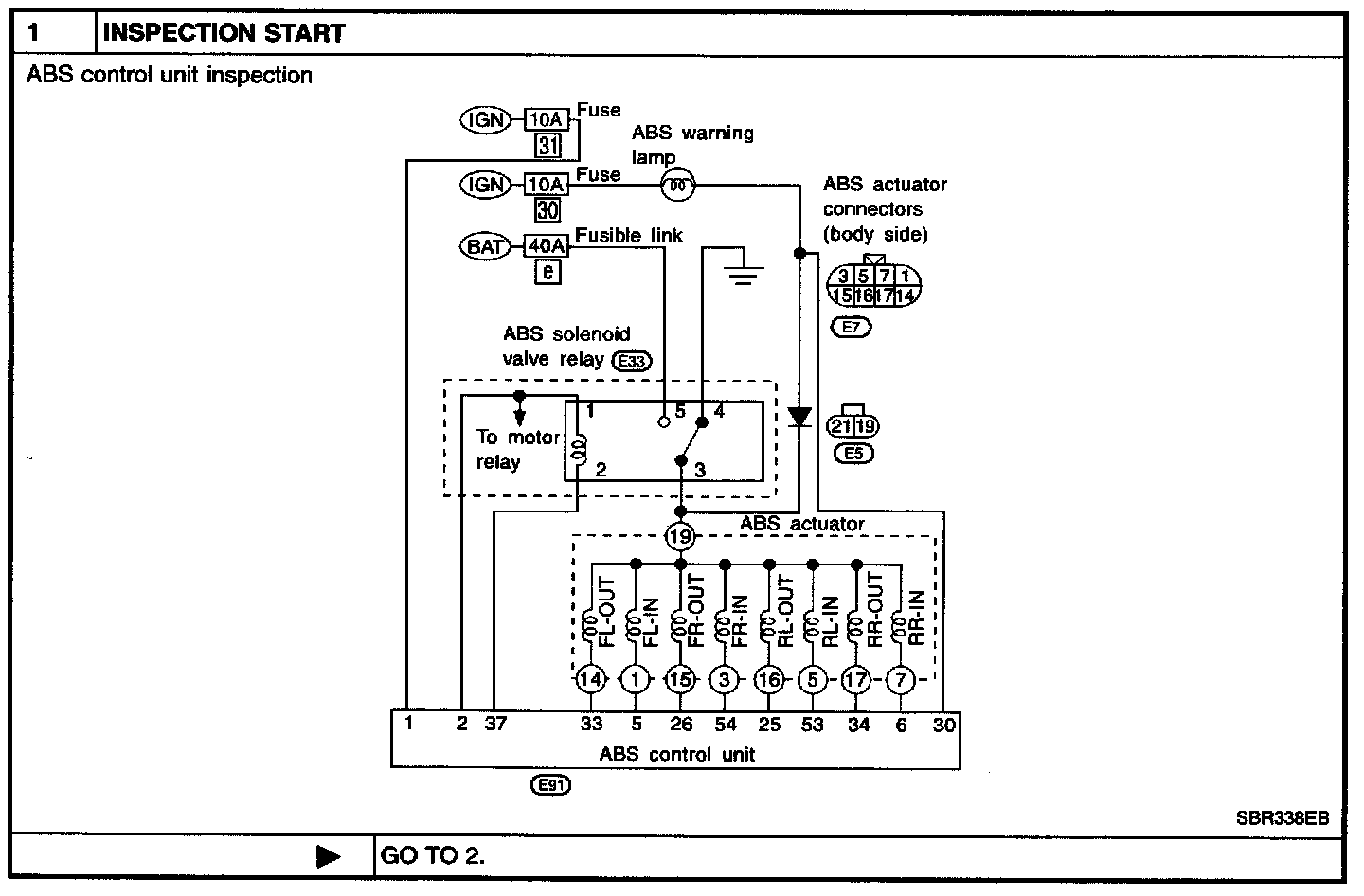

INSPECTION START

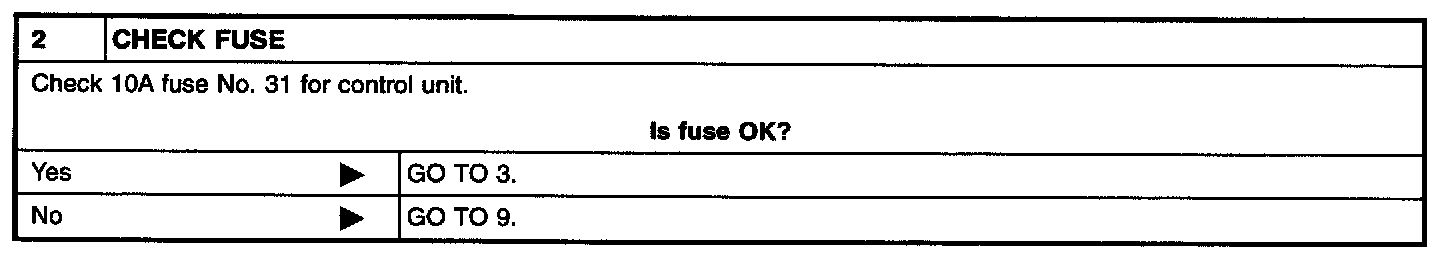

CHECK FUSE

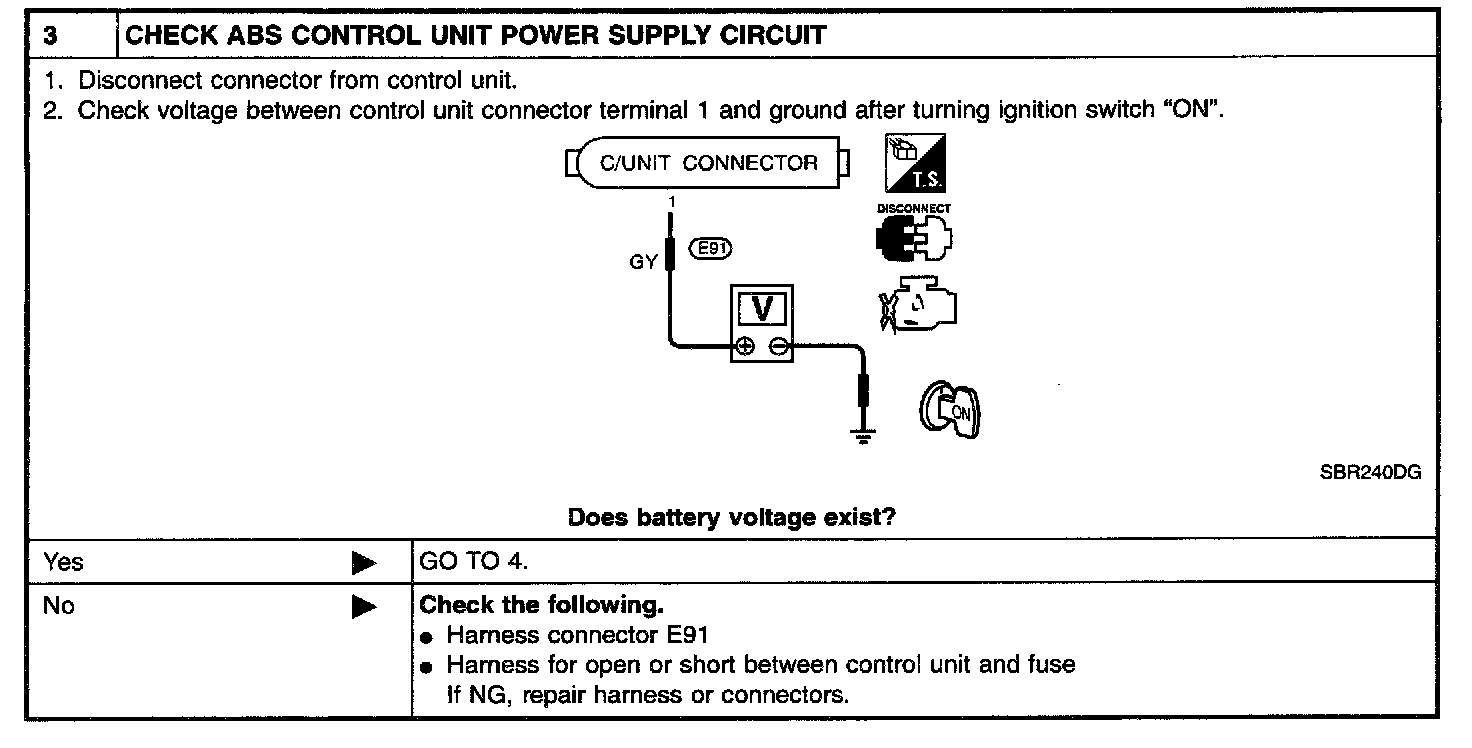

CHECK ABS CONTROL UNIT POWER SUPPLY CIRCUIT

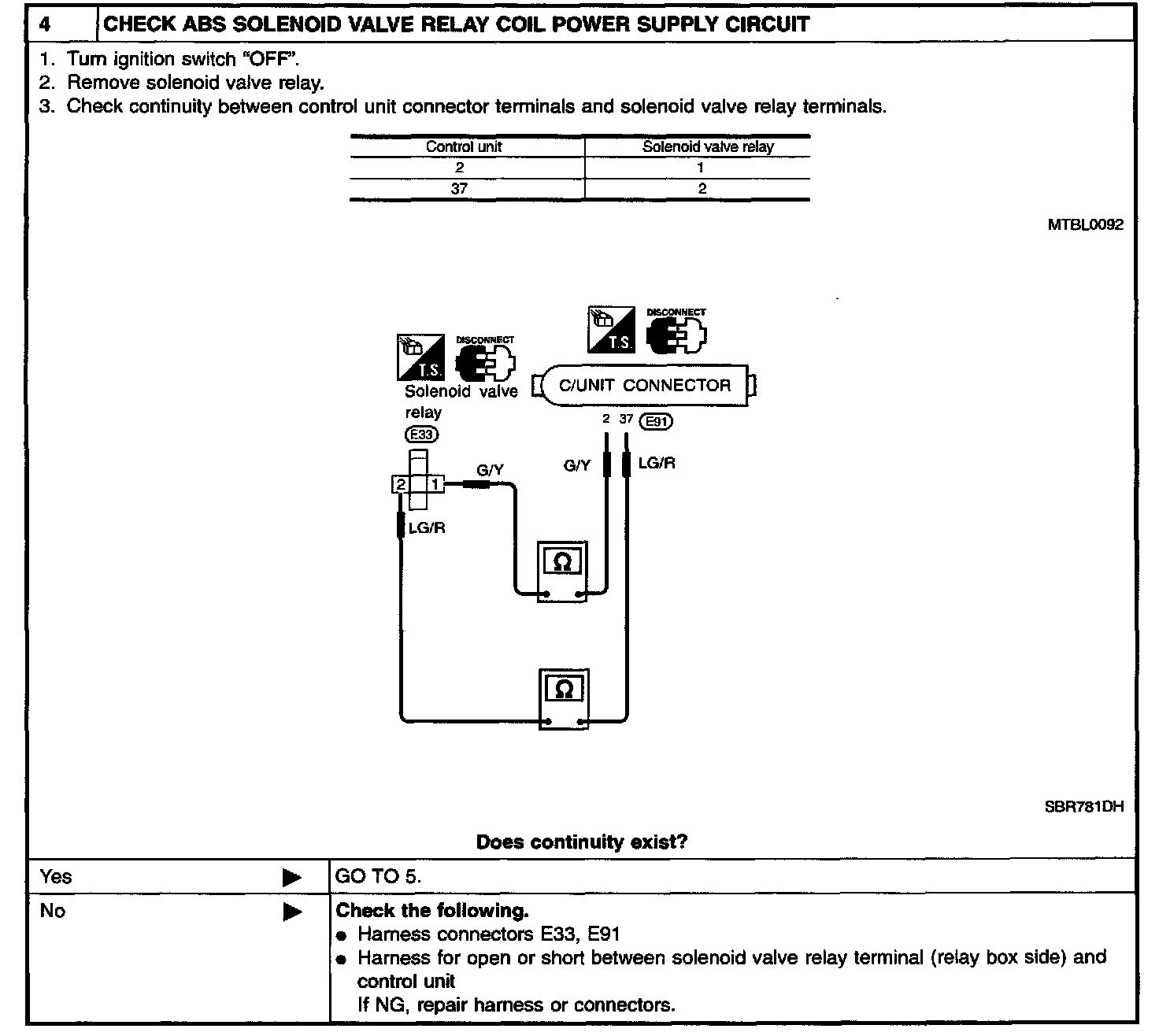

CHECK ABS SOLENOID VALVE RELAY COIL POWER SUPPLY CIRCUIT

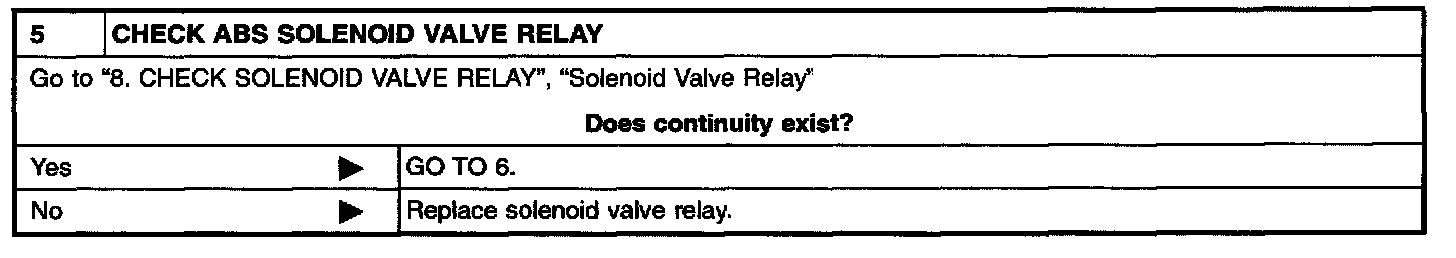

CHECK ABS SOLENOID VALVE RELAY

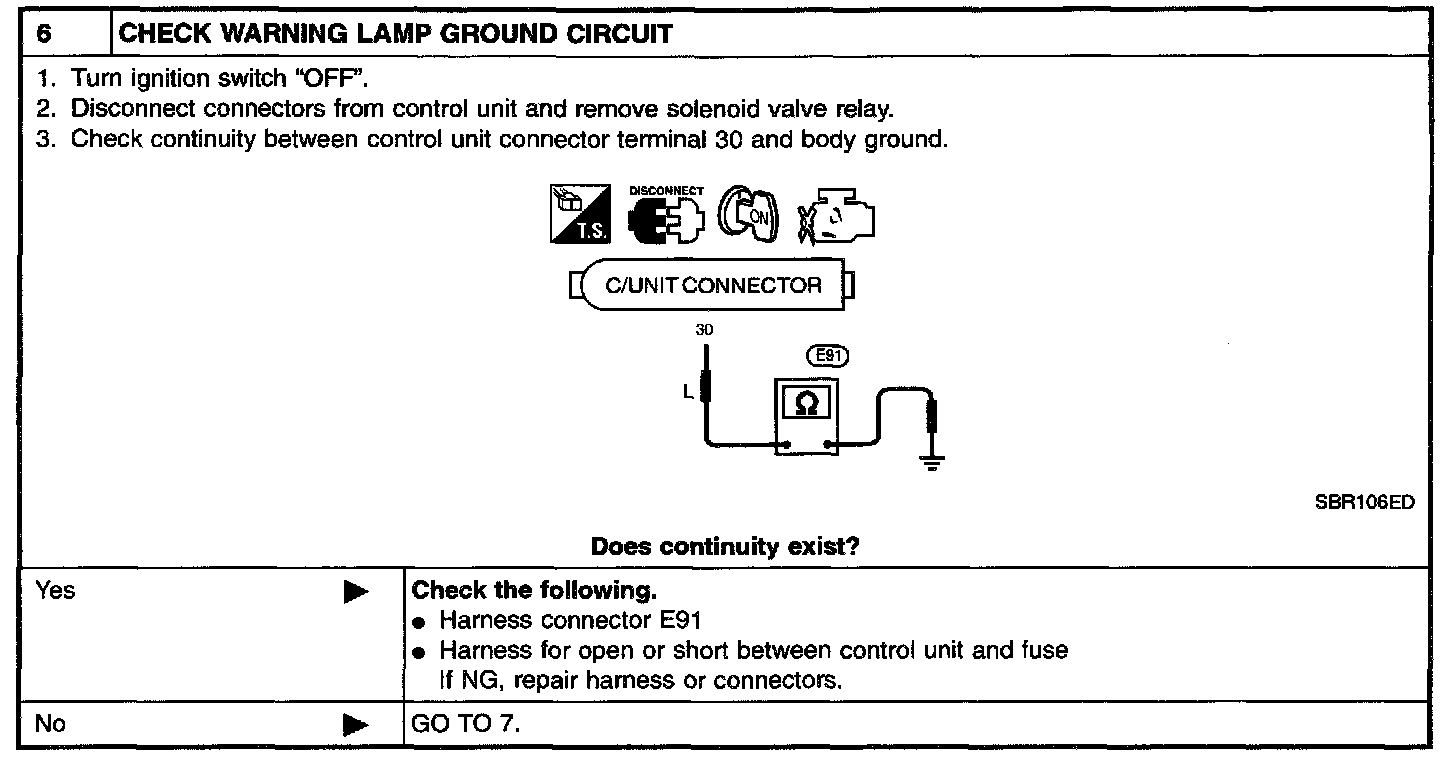

CHECK WARNING LAMP GROUND CIRCUIT

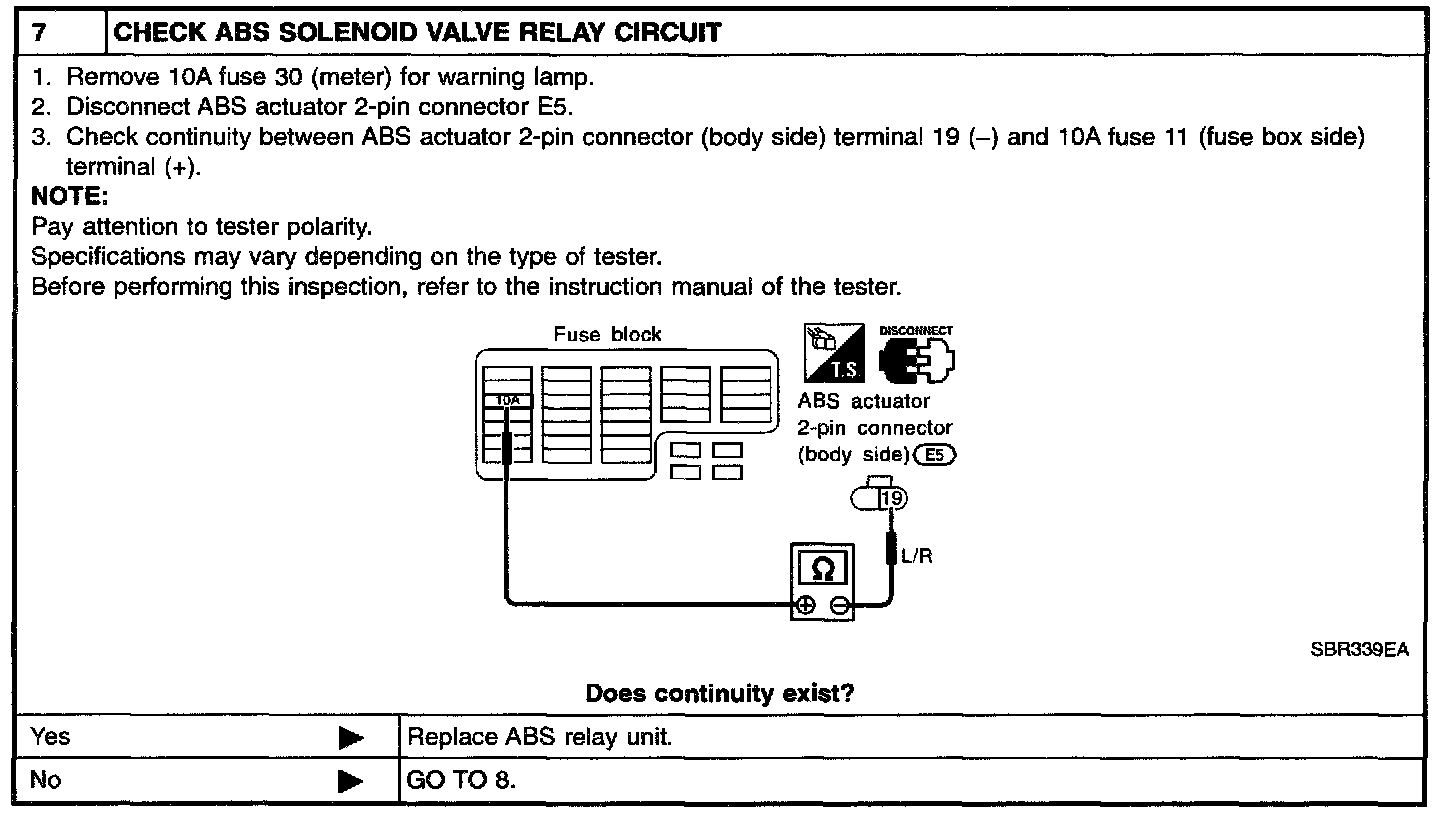

CHECK ABS SOLENOID VALVE RELAY CIRCUIT

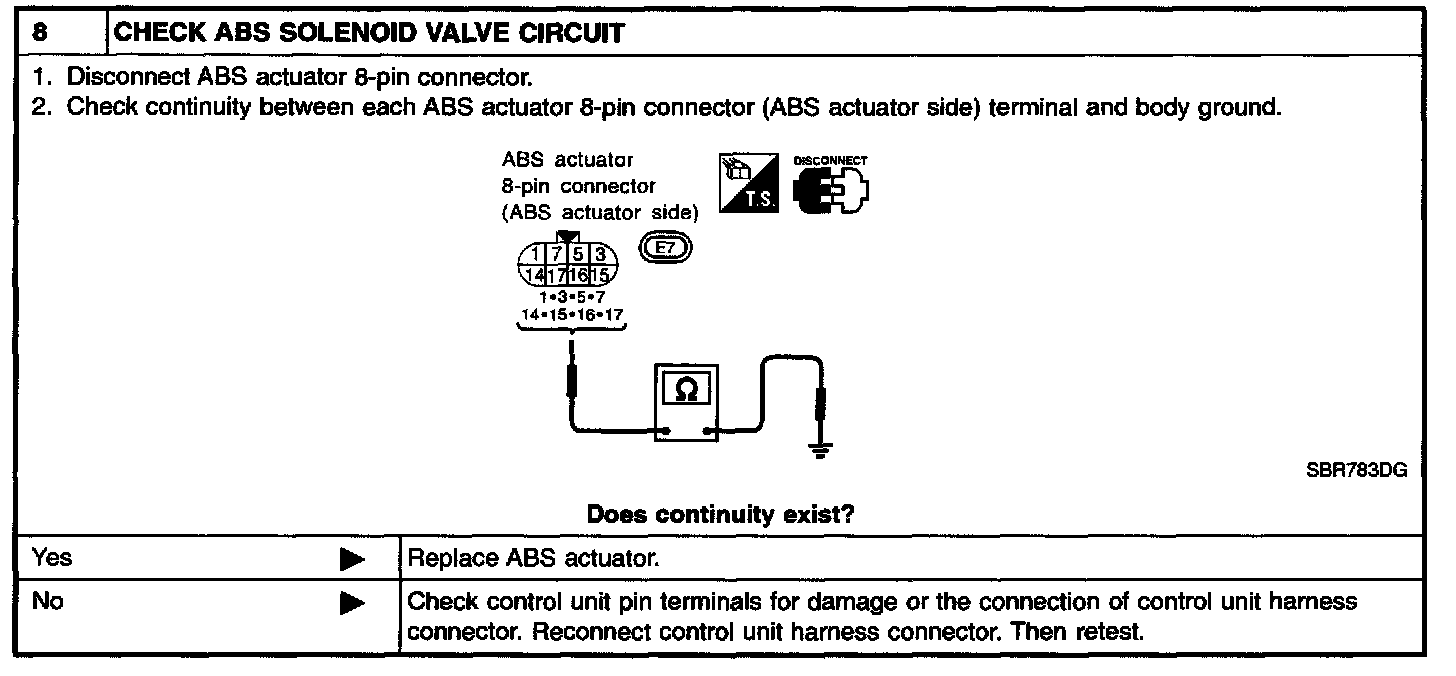

CHECK ABS SOLENOID VALVE CIRCUIT

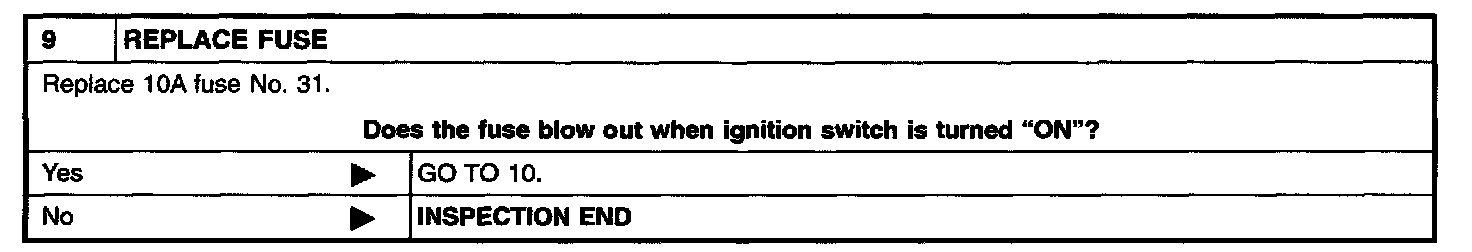

REPLACE FUSE

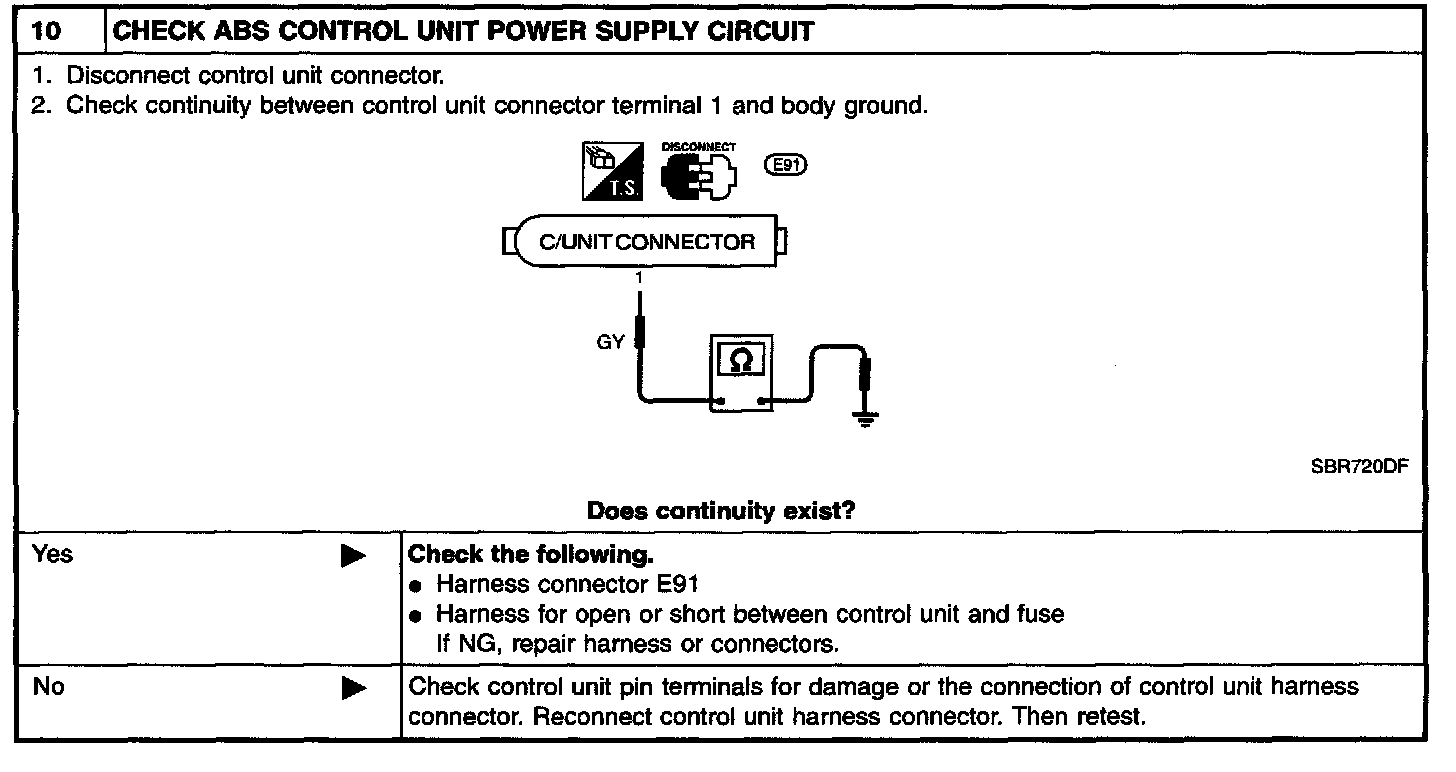

CHECK ABS CONTROL UNIT POWER SUPPLY CIRCUIT
