6. ABS Lamp Does Not Come On When Ignition Switch Is On

ABS Warning Lamp Does Not Come On When Ignition Switch Is Turned On

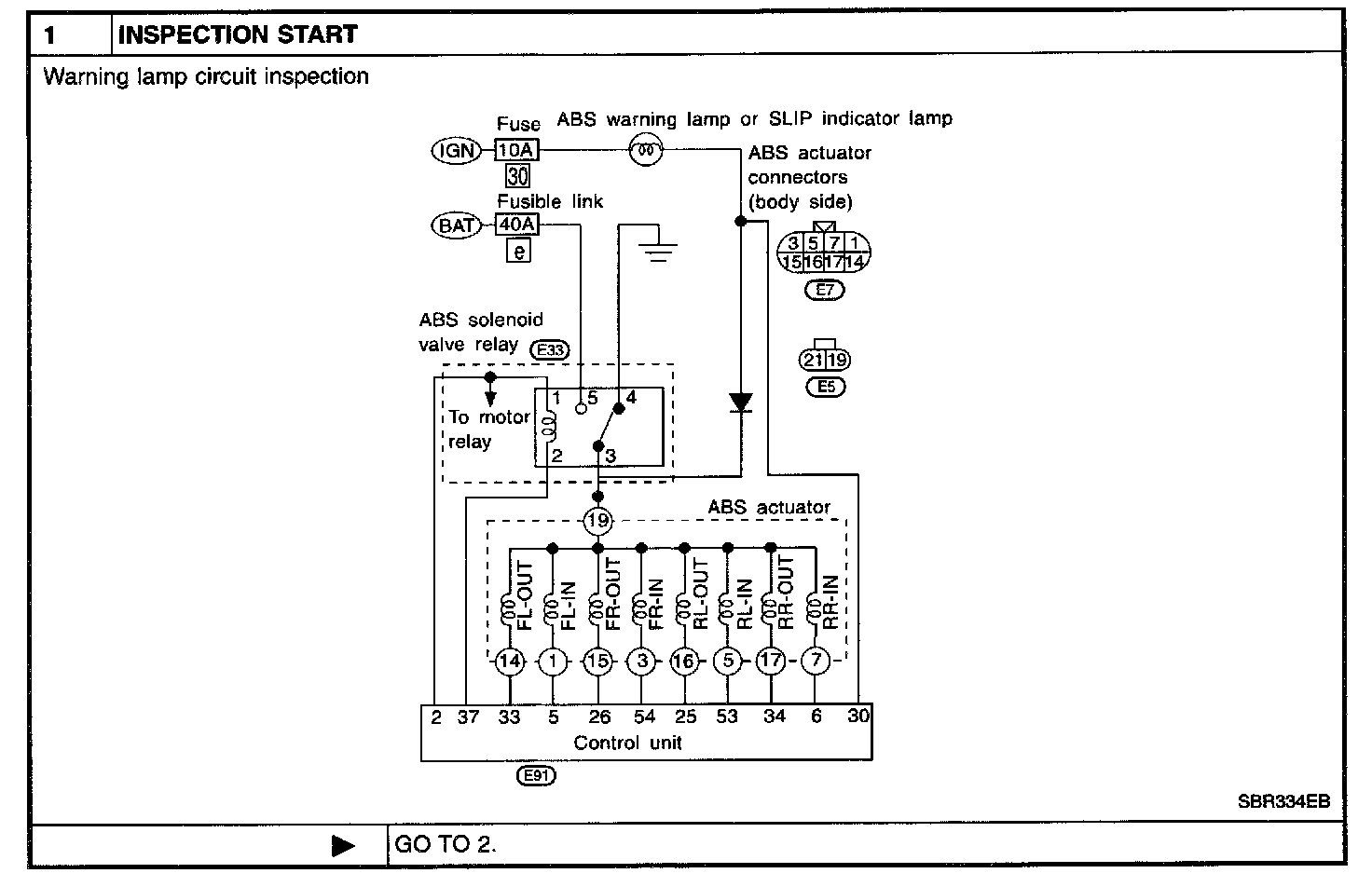

INSPECTION START

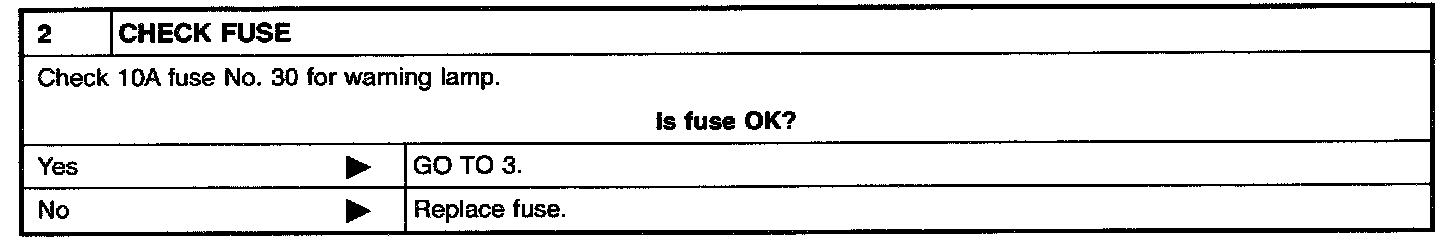

CHECK FUSE

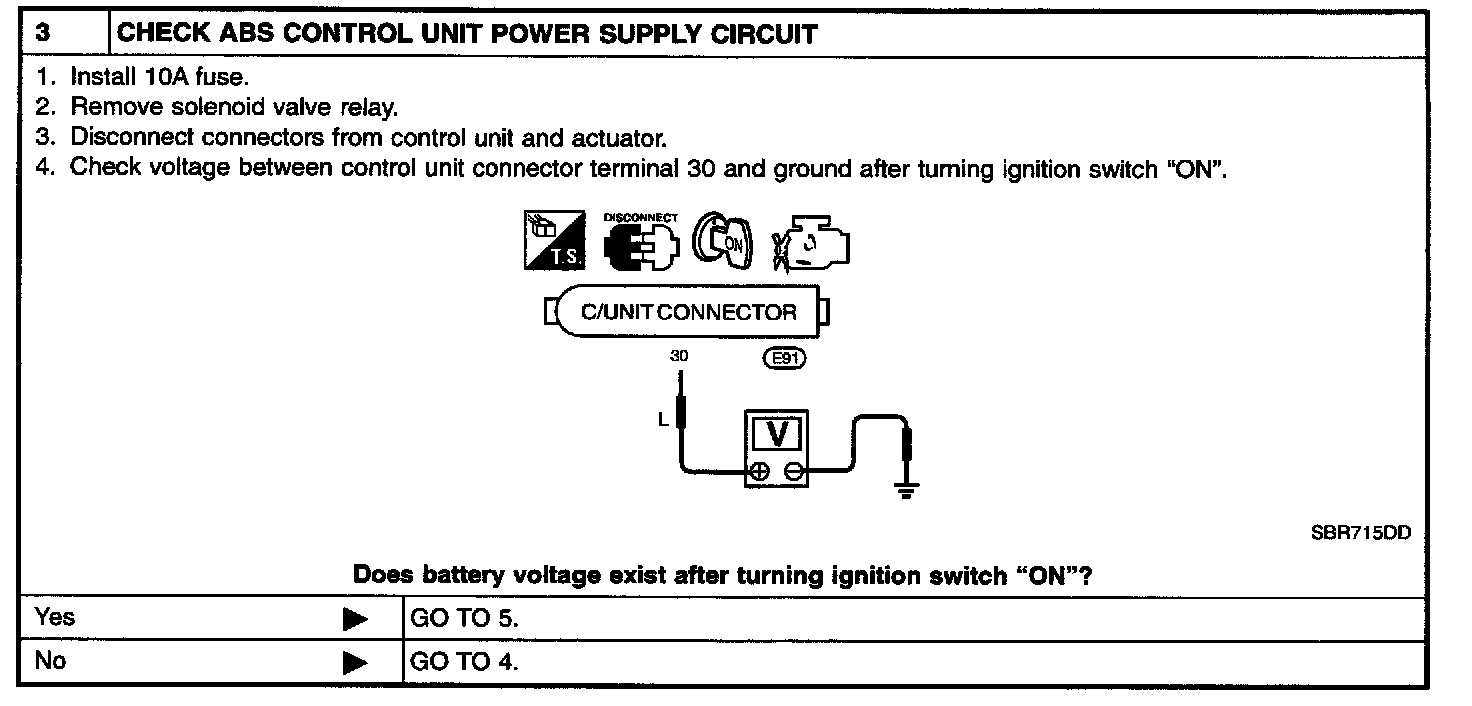

CHECK ABS CONTROL UNIT POWER SUPPLY CIRCUIT

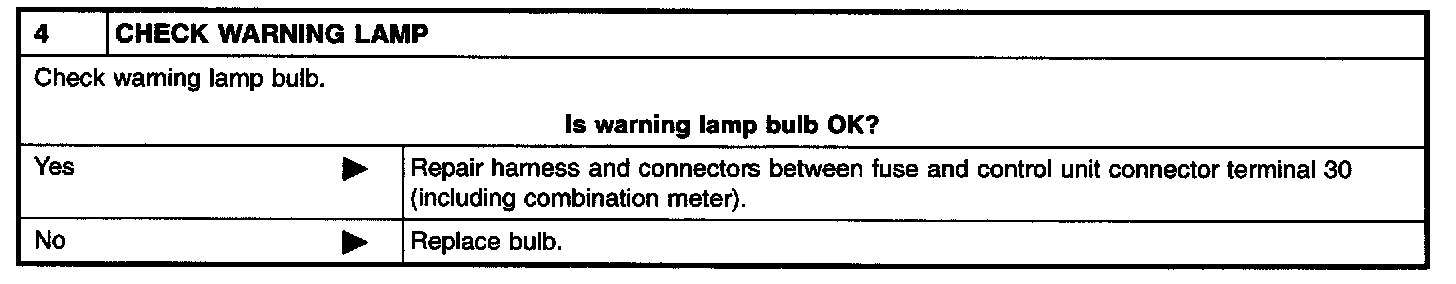

CHECK WARNING LAMP

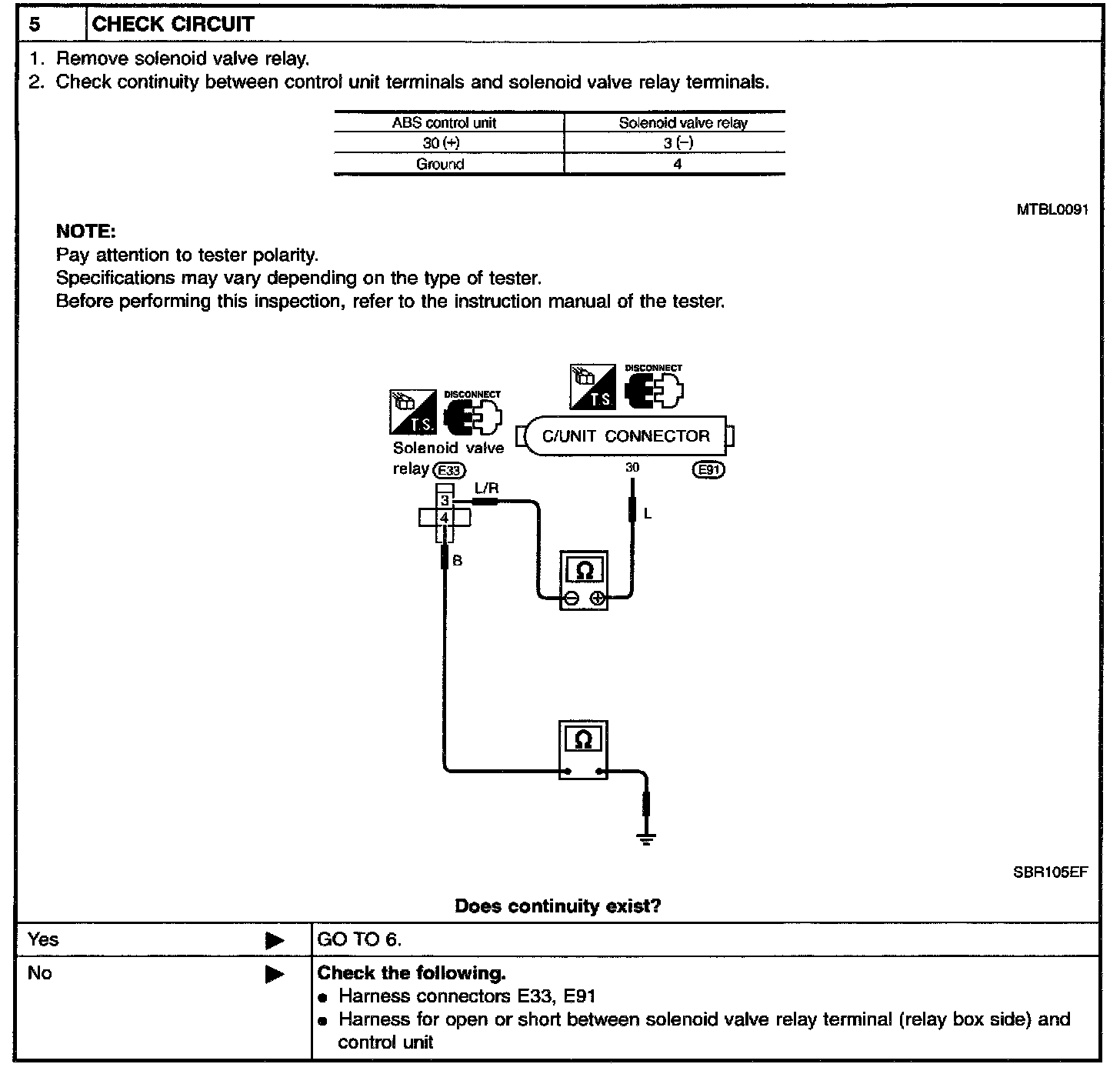

CHECK CIRCUIT

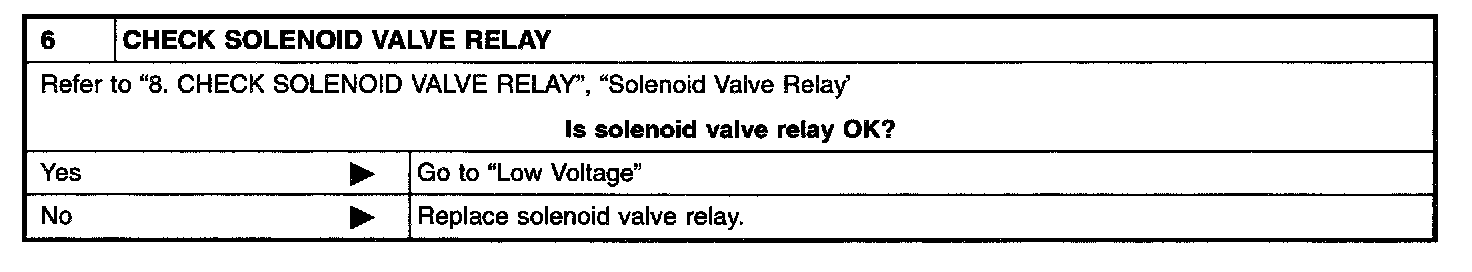

CHECK SOLENOID VALVE RELAY
