7. ABS Warning Lamp Stays On When Ignition Switch Is On

ABS Warning Lamp Stays On When Ignition Switch Is Turned On

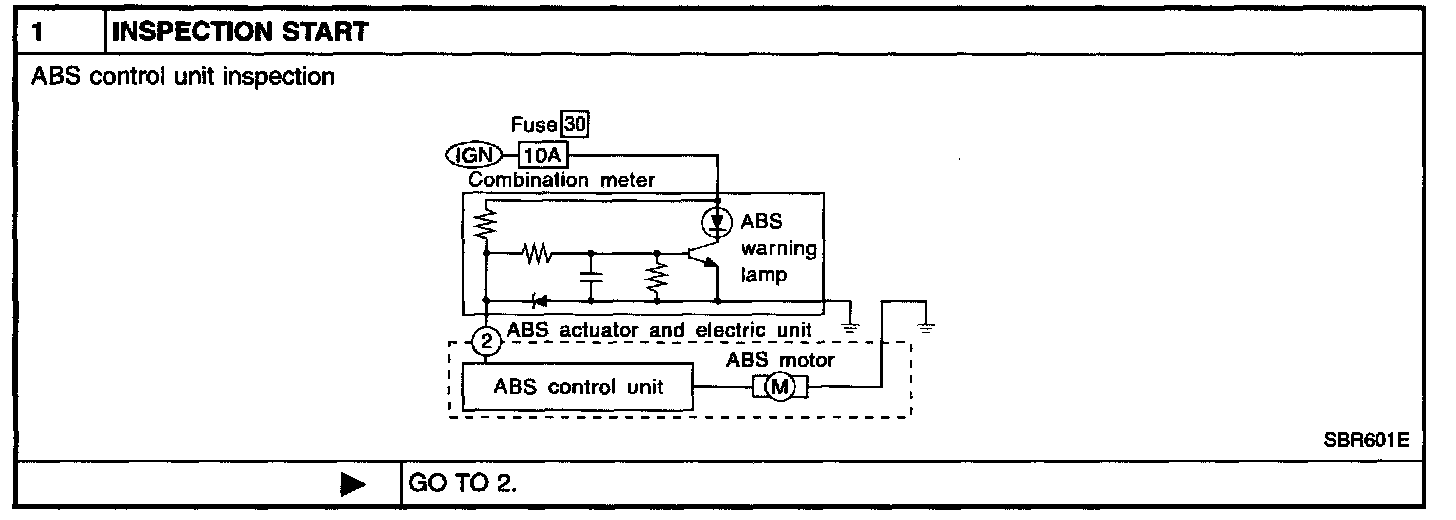

INSPECTION START

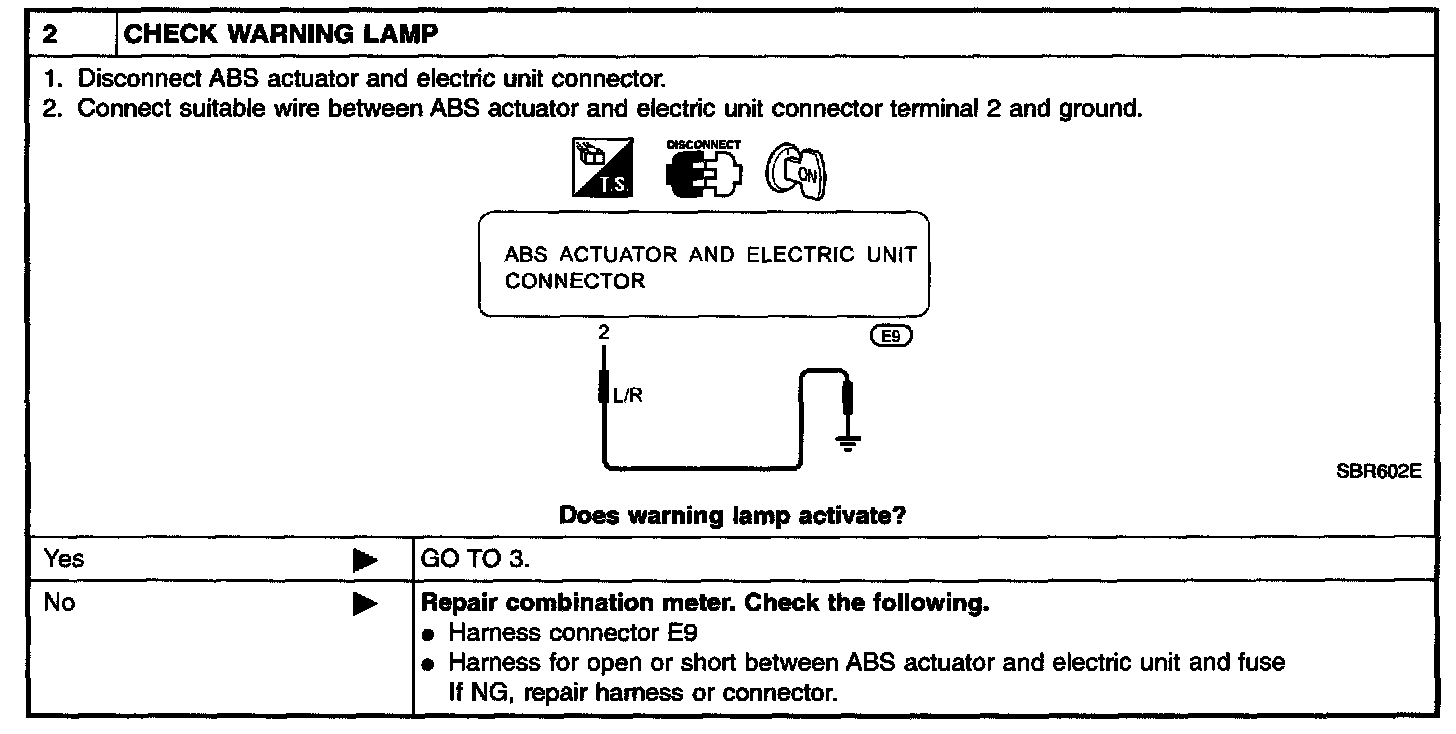

CHECK WARNING LAMP

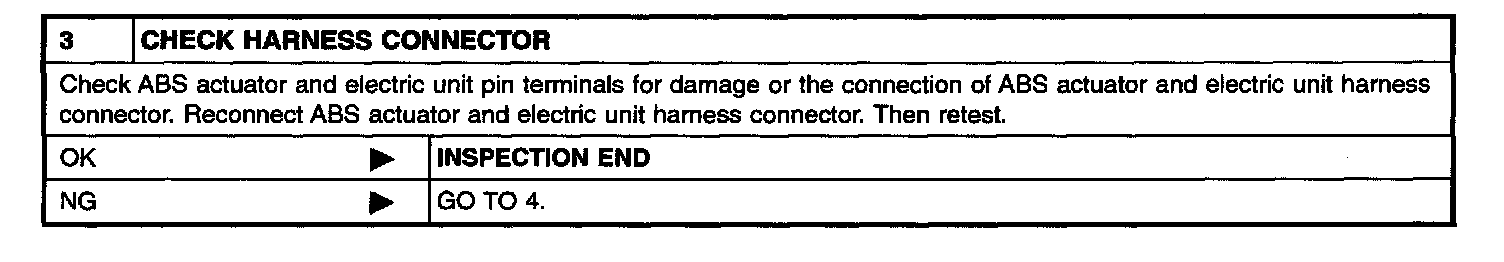

CHECK HARNESS CONNECTOR





CHECK ABS MOTOR GROUND
