Home >> Nissan-Datsun >> 2001 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> ABS >> Non-Trouble Code Procedures >> 6. ABS Warning Lamp Does Not Come On When Ignition Switch Is On

6. ABS Warning Lamp Does Not Come On When Ignition Switch Is On

ABS Warning Lamp Does Not Come On When Ignition Switch Is Turned On





INSPECTION START

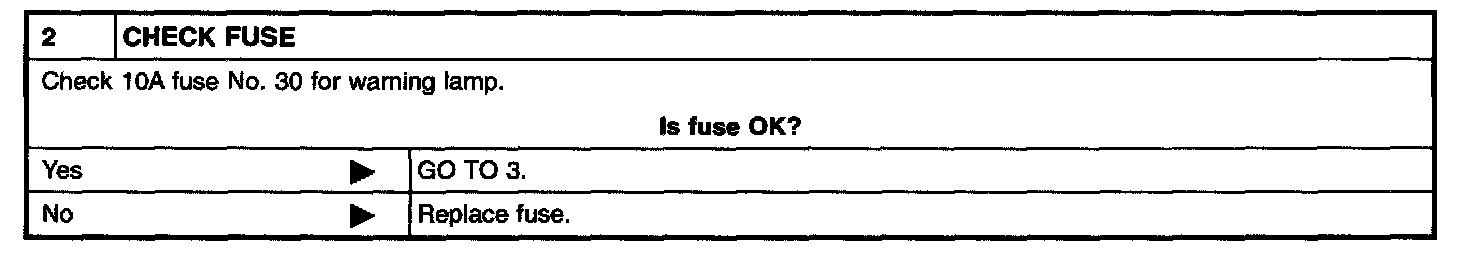

CHECK FUSE





CHECK ABS CONTROL UNIT POWER SUPPLY CIRCUIT

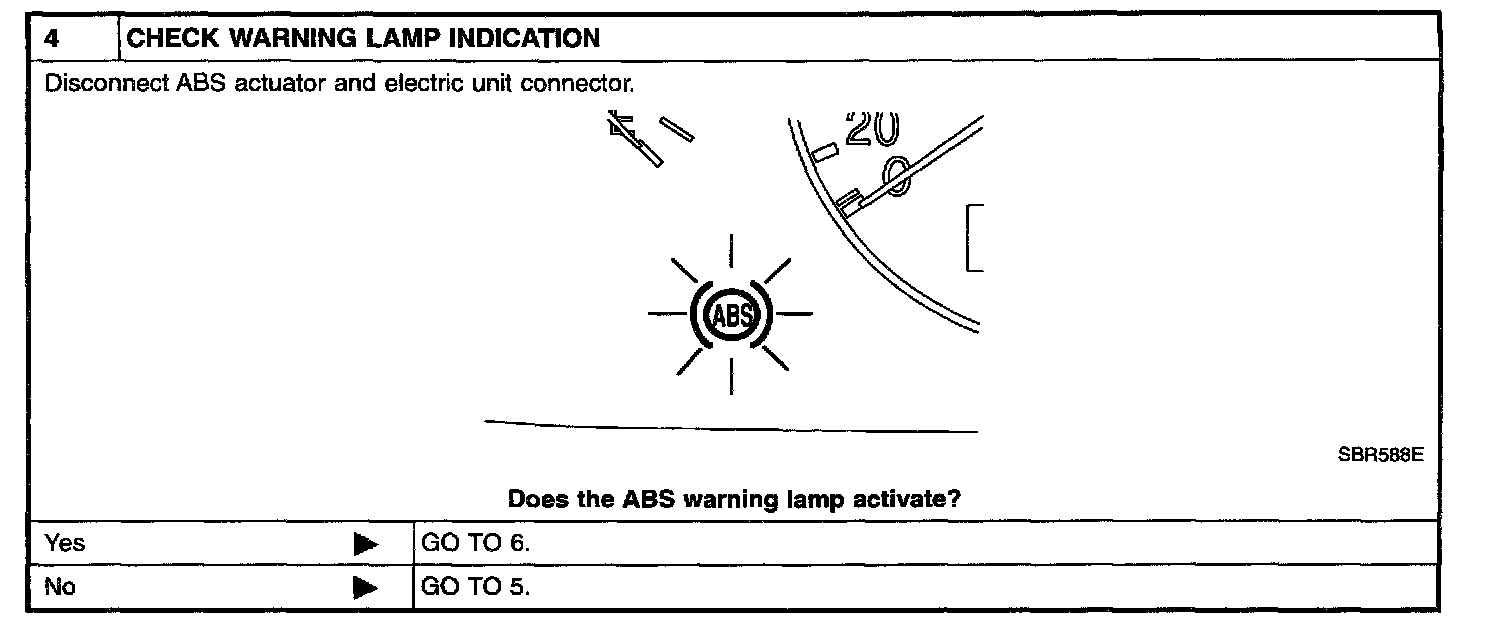

CHECK WARNING LAMP INDICATION

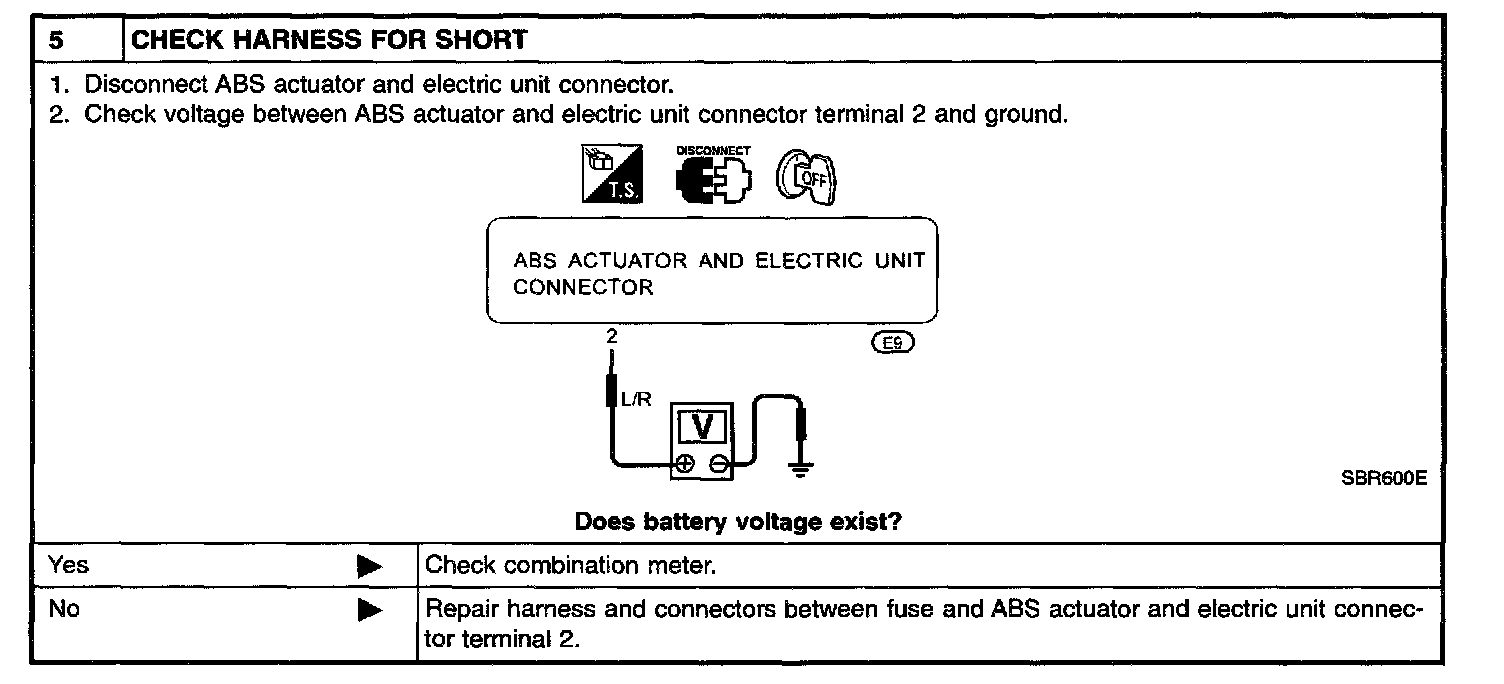

CHECK HARNESS FOR SHORT





CHECK HARNESS CONNECTOR
