5. Pedal Vibration and Noise

Pedal Vibration and Noise

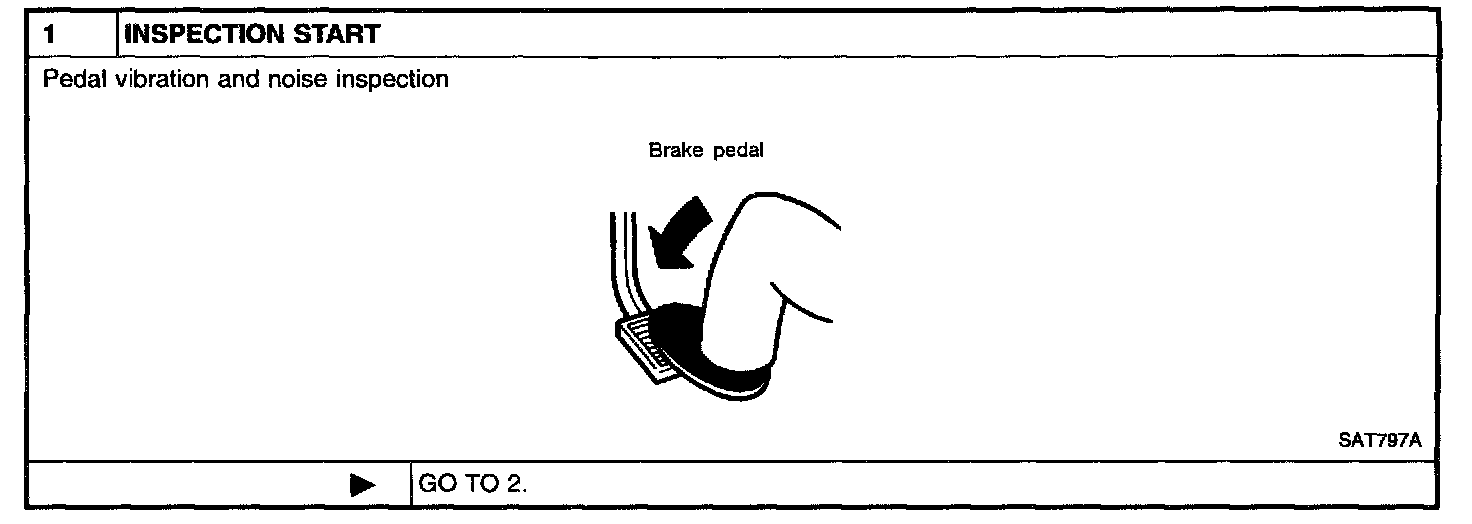

INSPECTION START

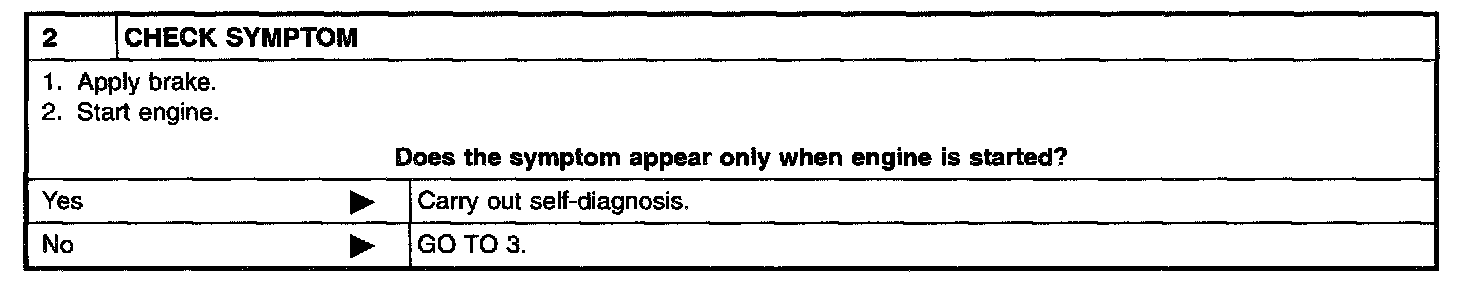

CHECK SYMPTOM





RECHECK SYMPTOM

NOTE: ABS may operate and cause vibration under any of the following conditions.
- Applying brake gradually when shifting or operating clutch.
- Low friction (slippery) road.
- High speed cornering.
- Driving over bumps and pot holes.
- Engine speed is over 5,000 rpm with vehicle stopped.
