2. Unexpected Pedal Action

Unexpected Pedal Action

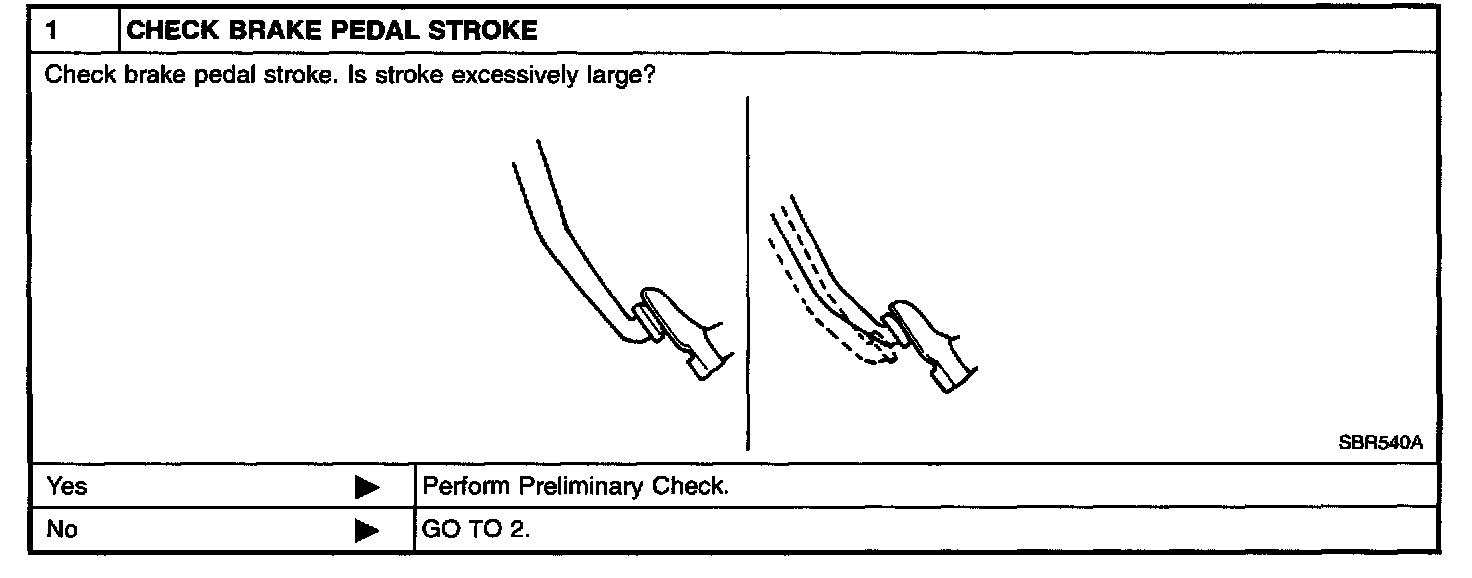

CHECK BRAKE PEDAL STROKE

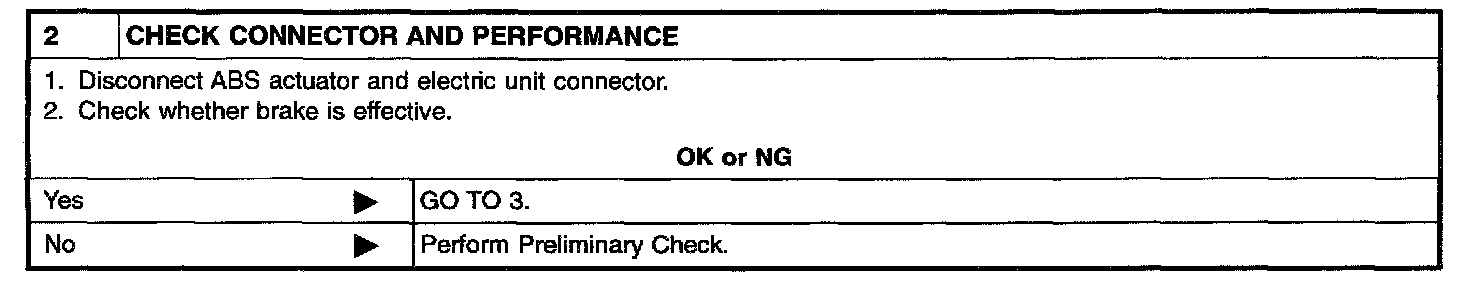

CHECK CONNECTOR AND PERFORMANCE

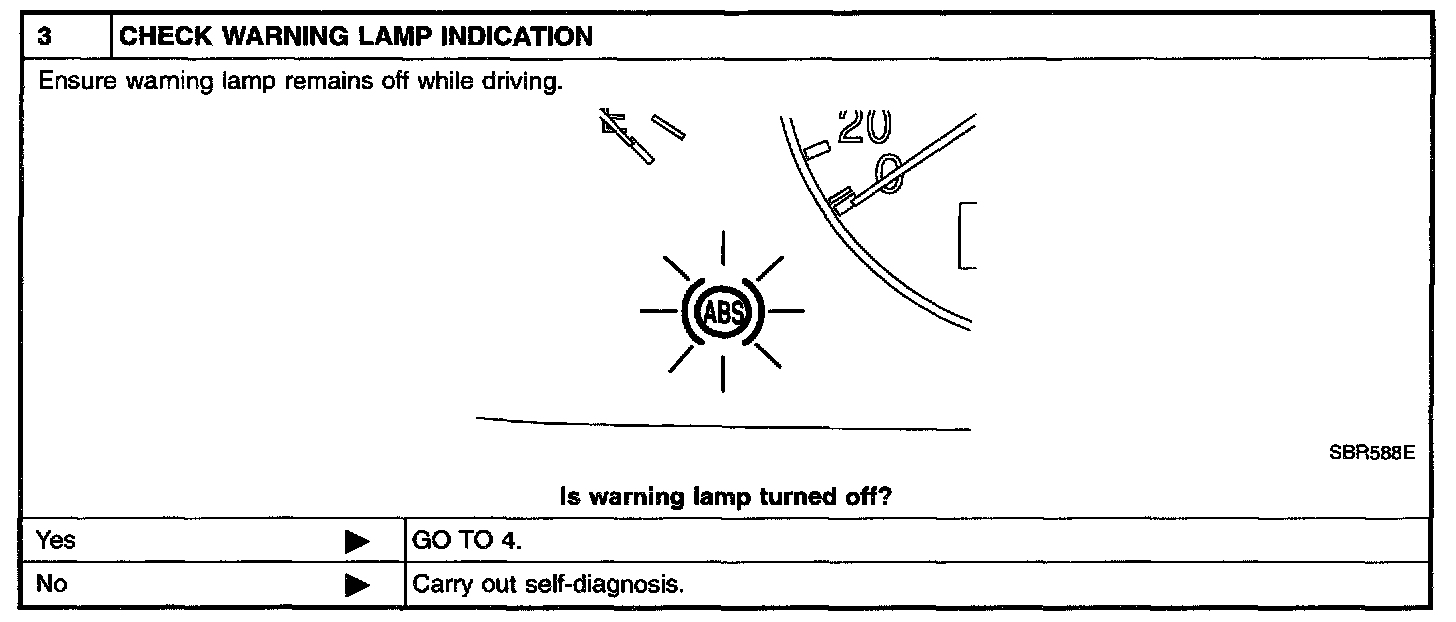

CHECK WARNING LAMP INDICATION

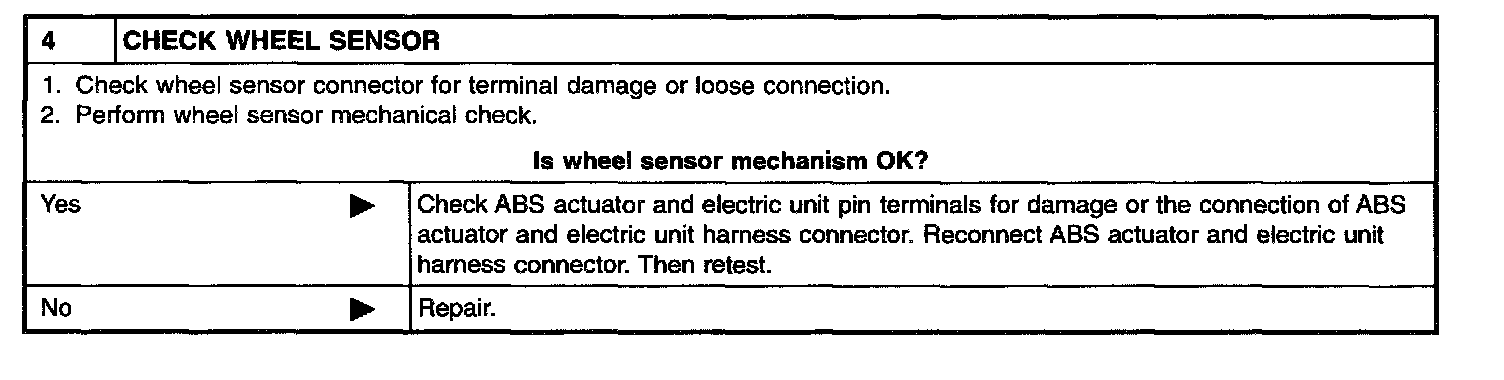

CHECK WHEEL SENSOR
