ABS
ABS
PRELIMINARY CHECK

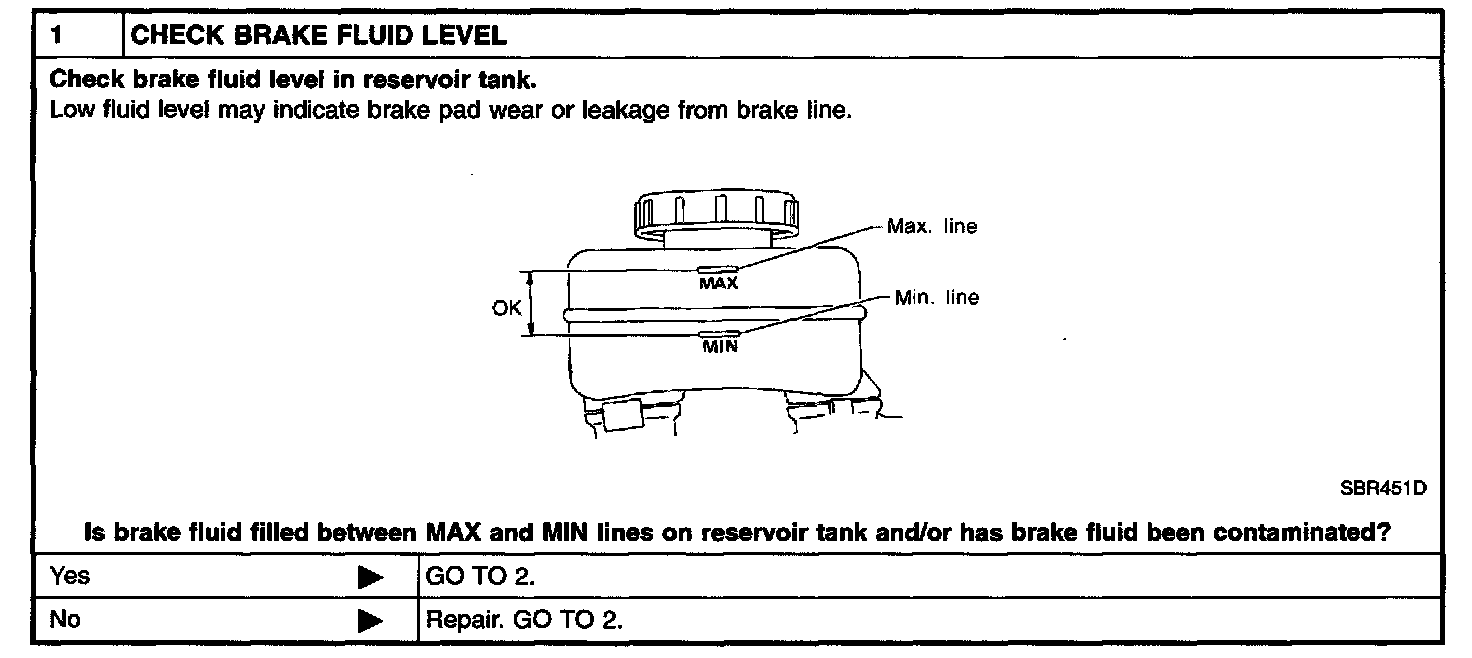

Check
Brake Fluid
Level

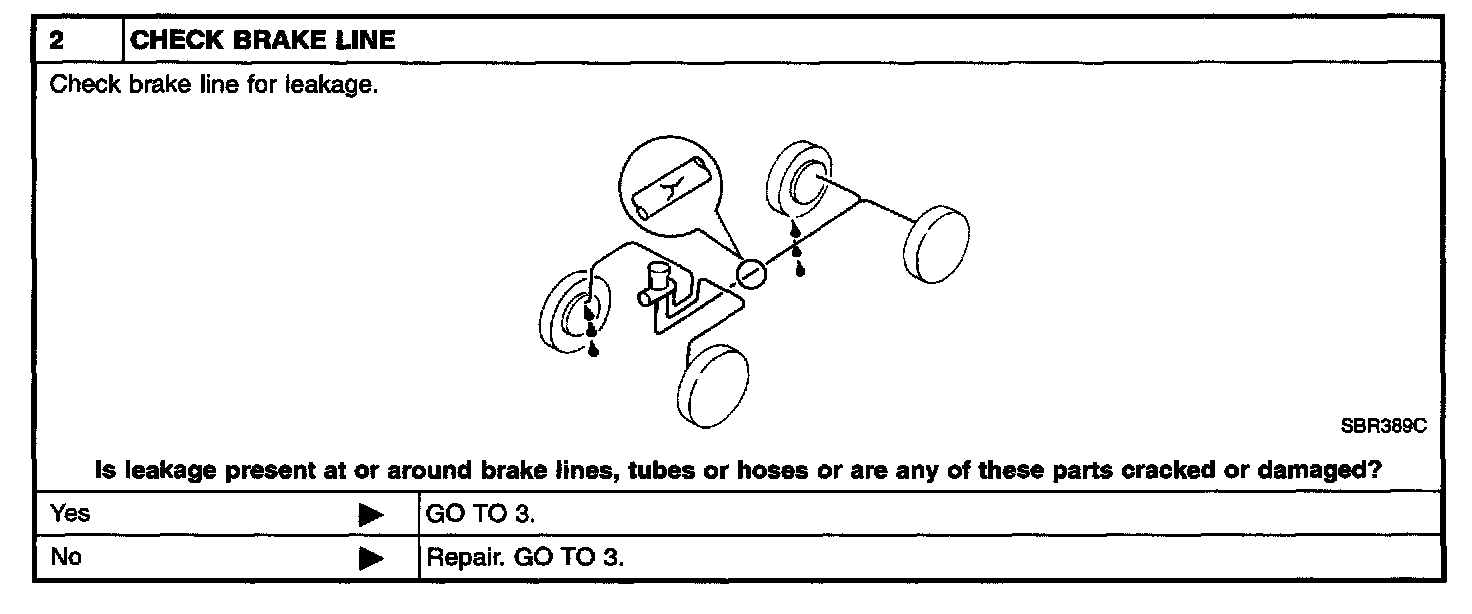

Check Brake Line

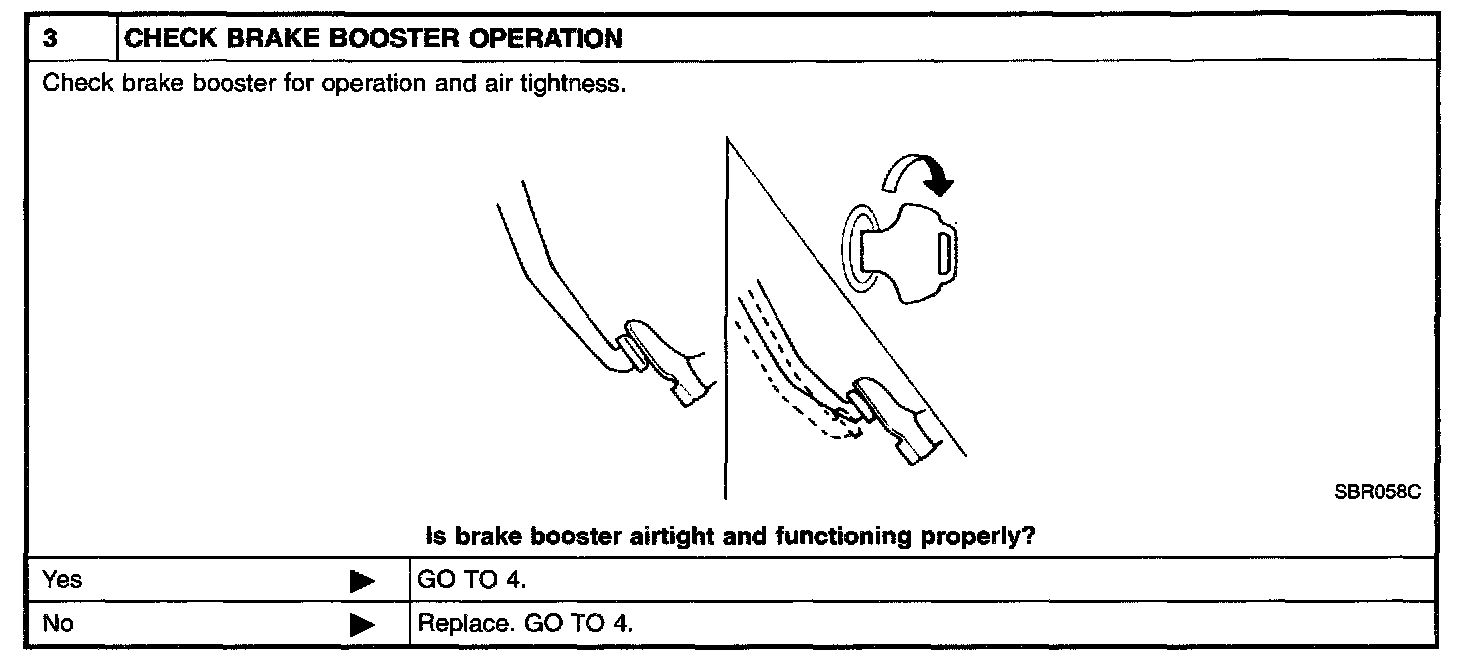

Check Brake Booster Operation

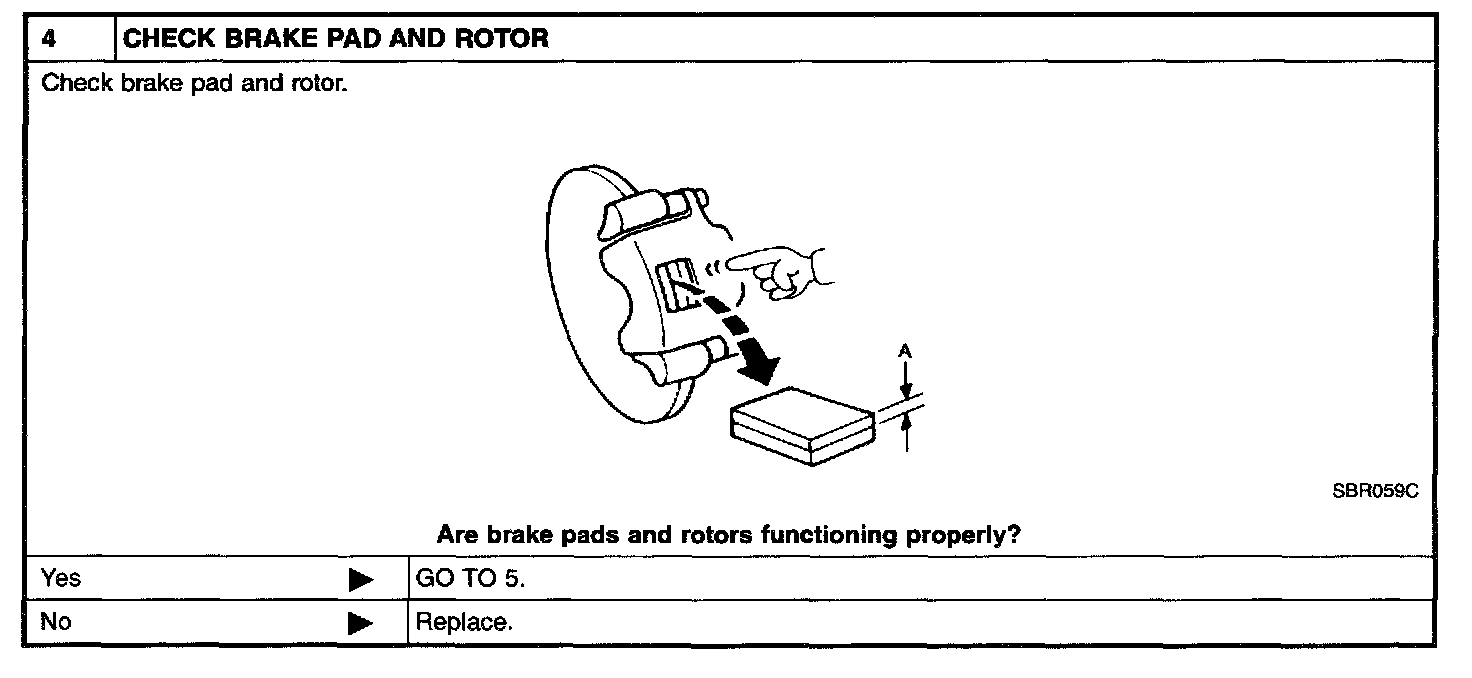

Check
Brake Pad
and Rotor

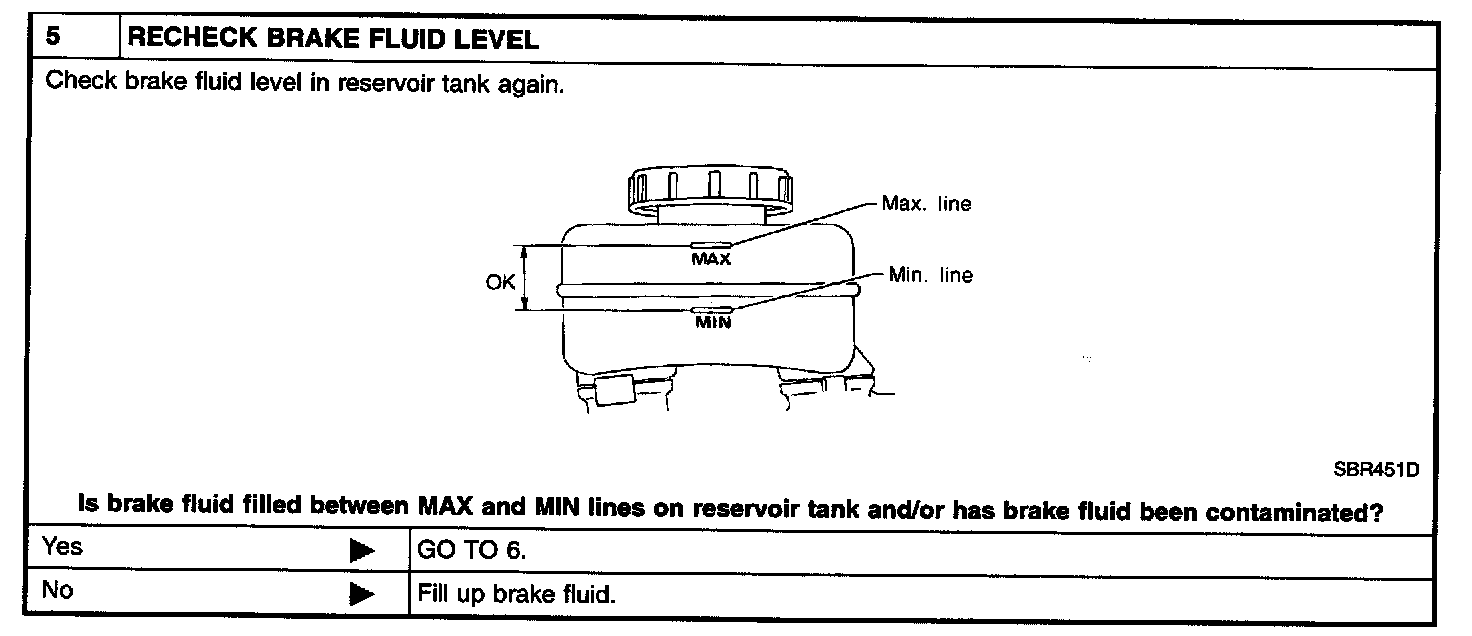

Recheck
Brake Fluid
Level

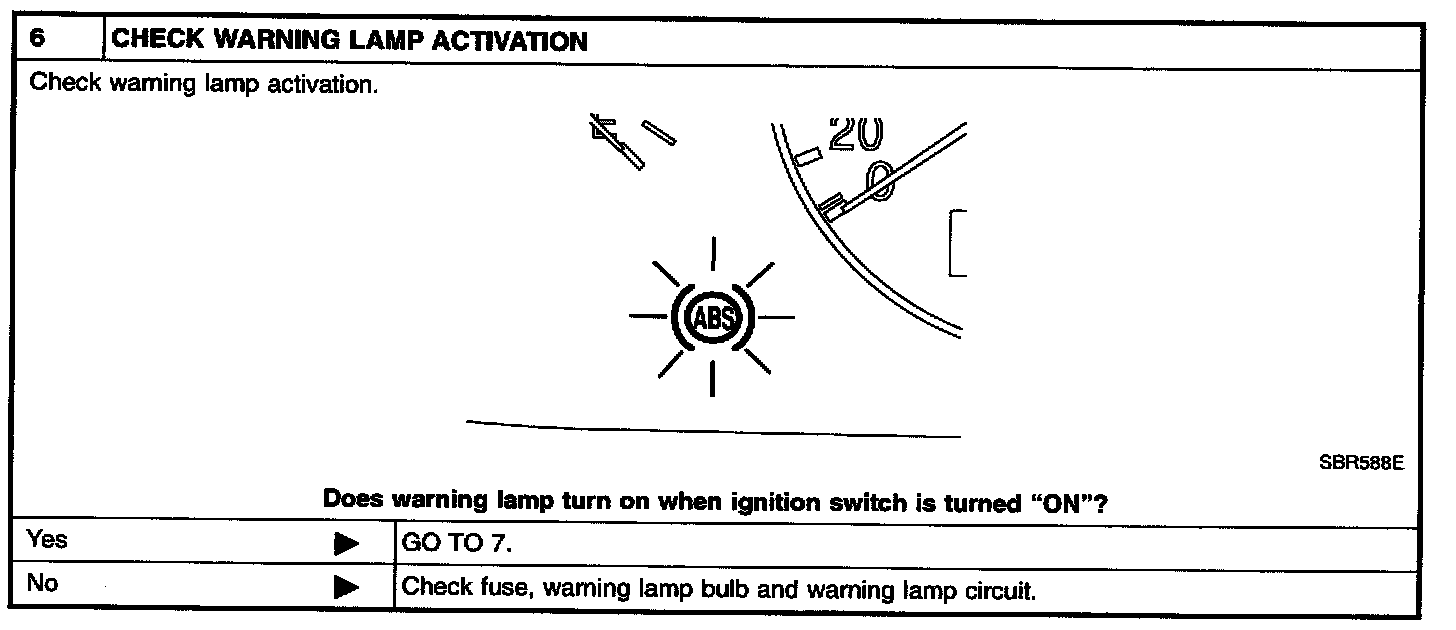

Check Warning Lamp Activation

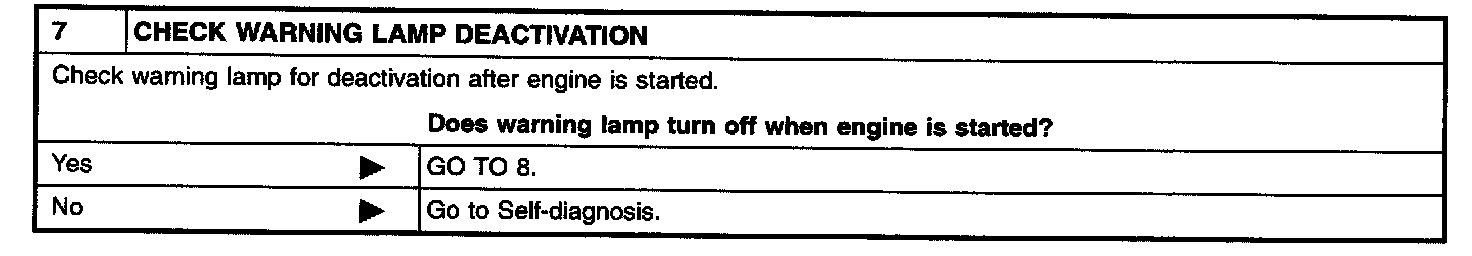

Check Warning Lamp Deactivation

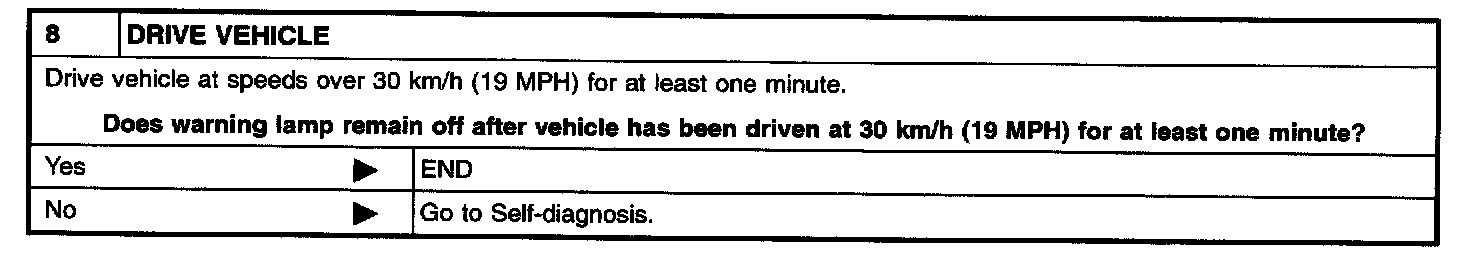

Drive Vehicle
