Home >> Nissan-Datsun >> 2001 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Multi-Remote Control System >> Consult-II Application Items

Consult-II Application Items

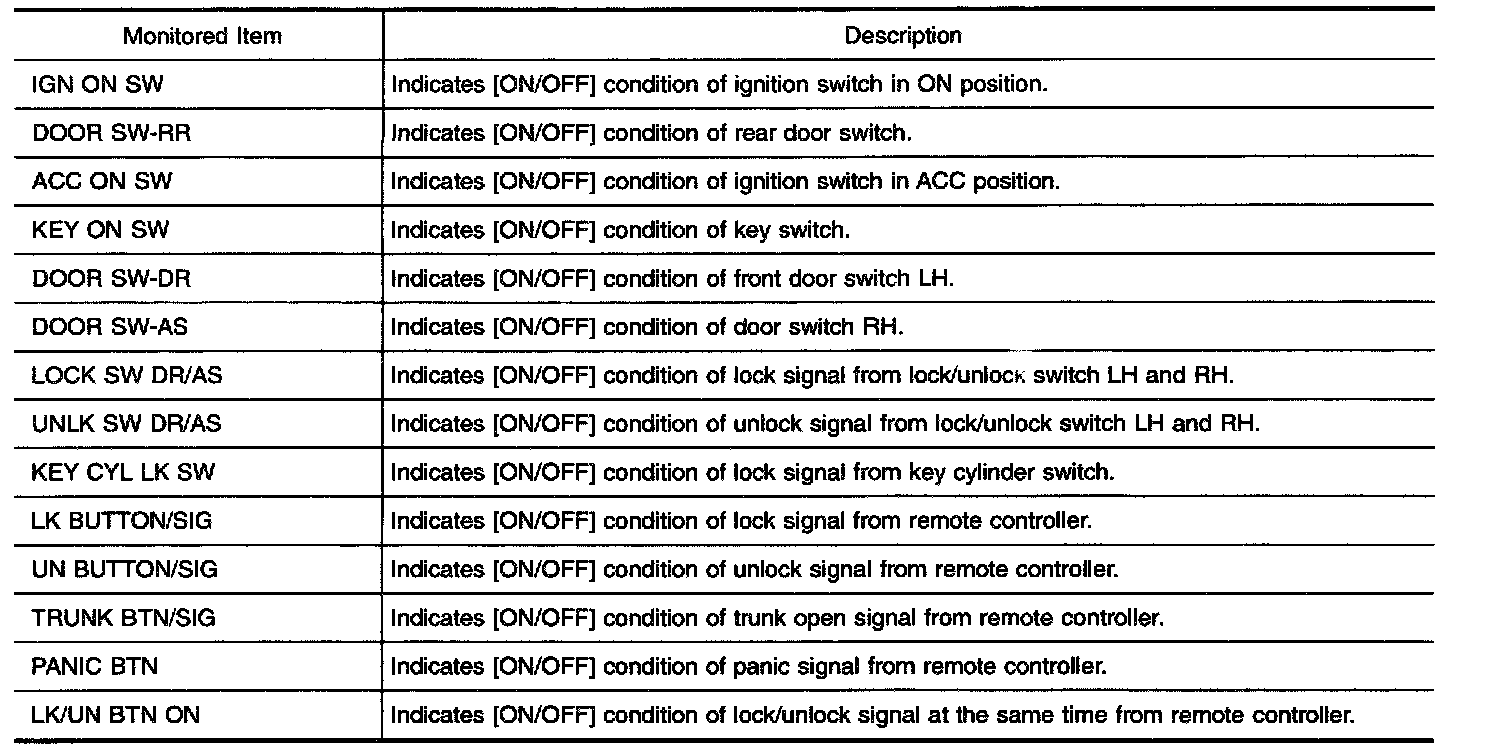

MULTI REMOTE ENT - Data Monitor:

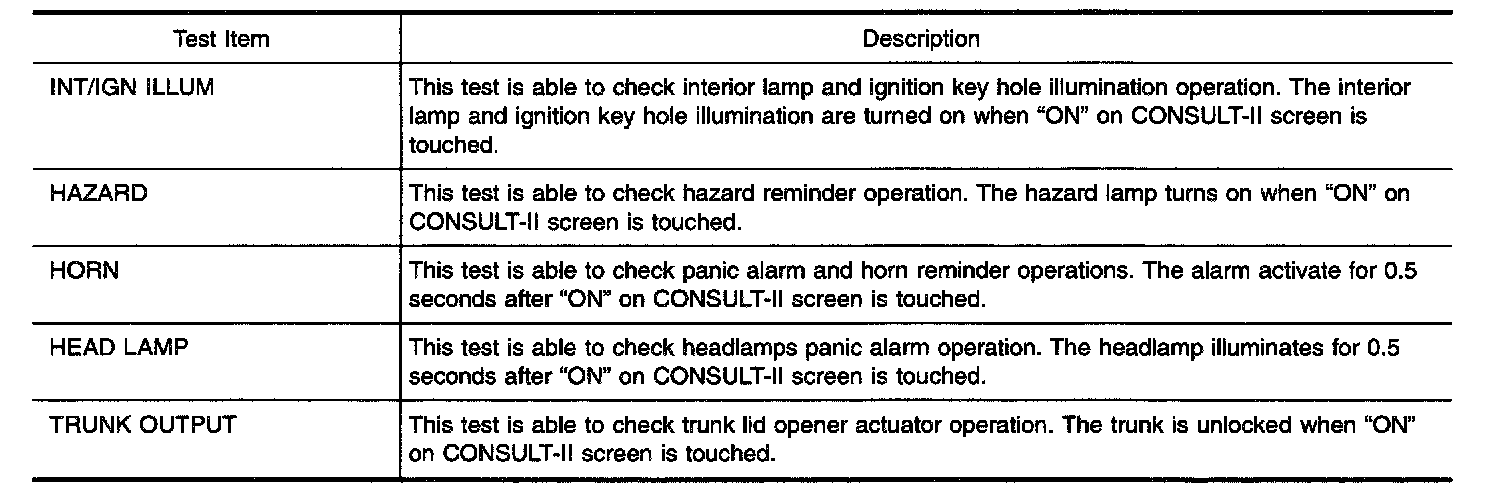

MULTI REMOTE ENT - Active Test:

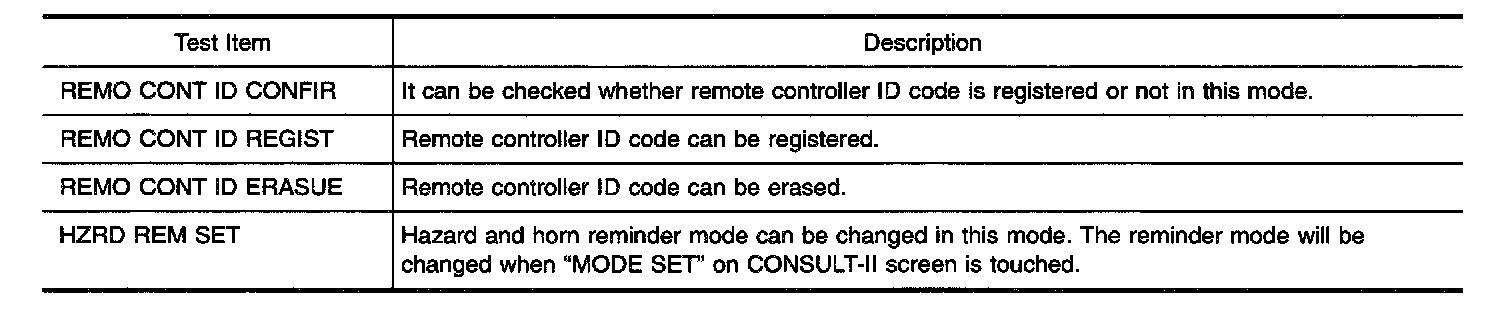

MULTI REMOTE ENT - Work Support:
