Front Door Panel: Service and Repair

Part 1:

Part 2:

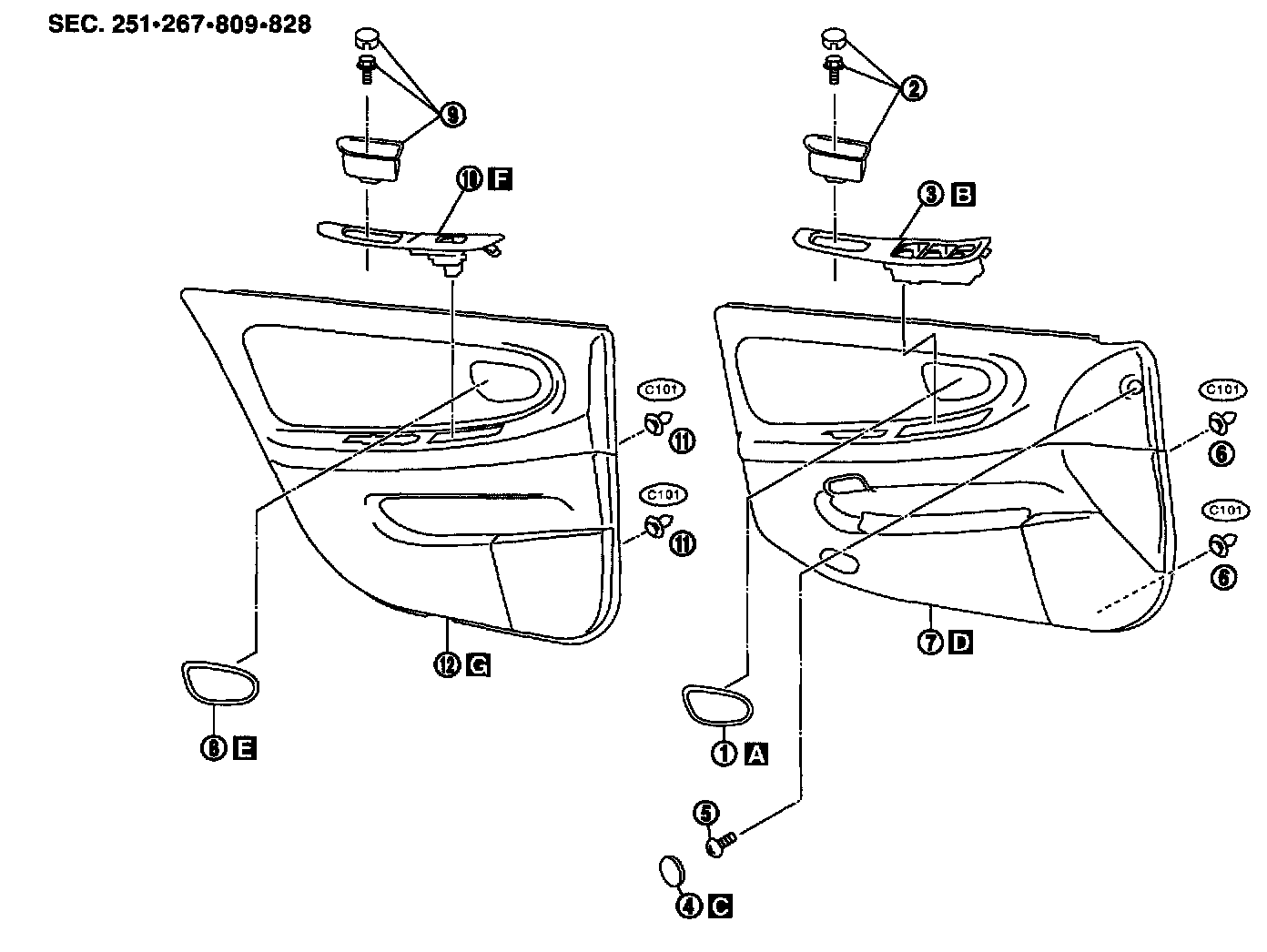

Removal and Installation

Front door finisher

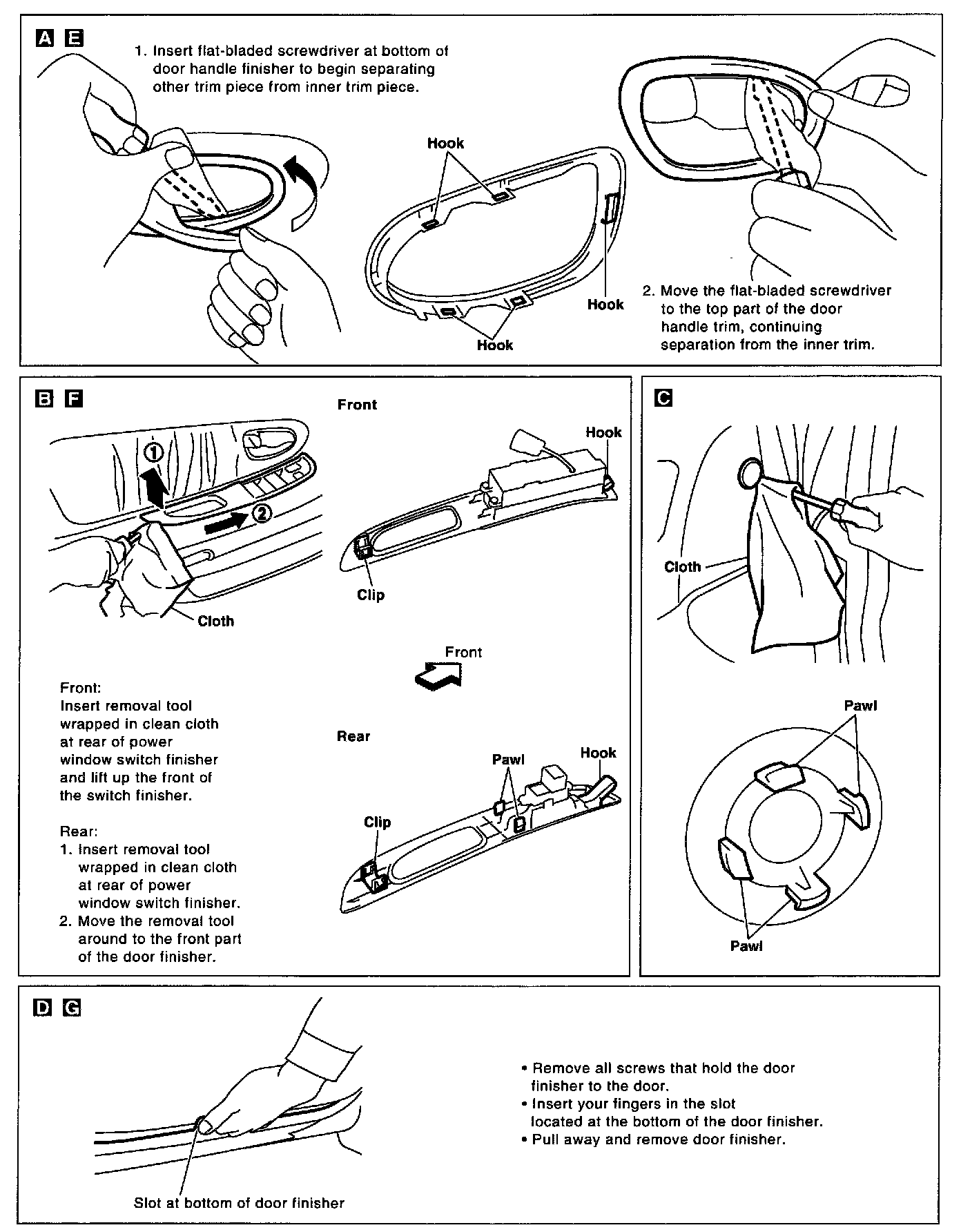

1. Remove inside handle escutcheon. A
2. Remove screw securing pull handle, and then remove pull handle.
3. Remove power window switch finisher, then disconnect the connectors. B
4. Remove mask securing front door finisher. C
5. Remove screw securing front door finisher.
6. Remove clips securing front door finisher.
7. Lift out front door finisher. Disconnect harness connectors. D
