Diagnostic Procedure 7
Diagnostic Procedure 7

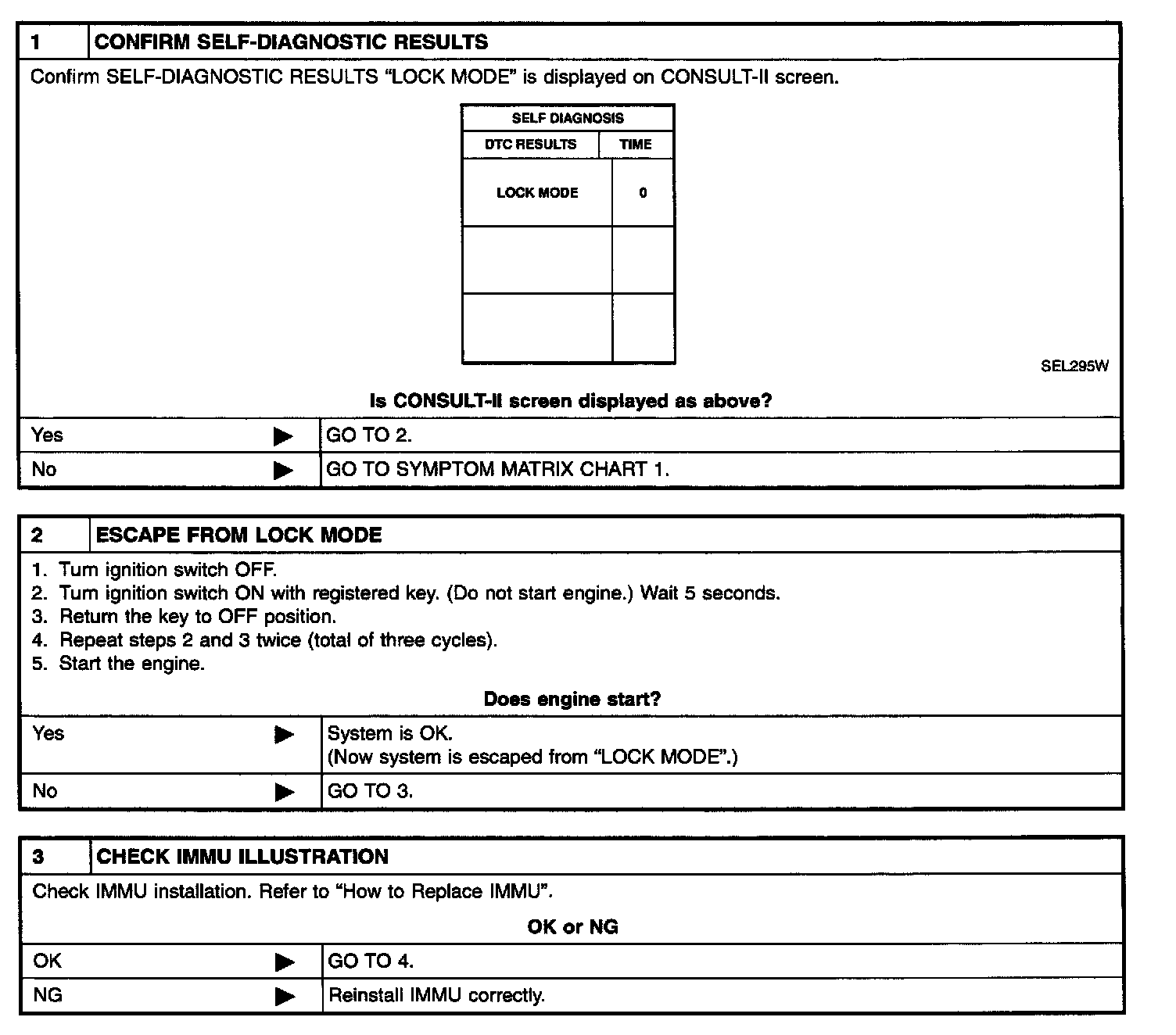

Steps 1 - 3:

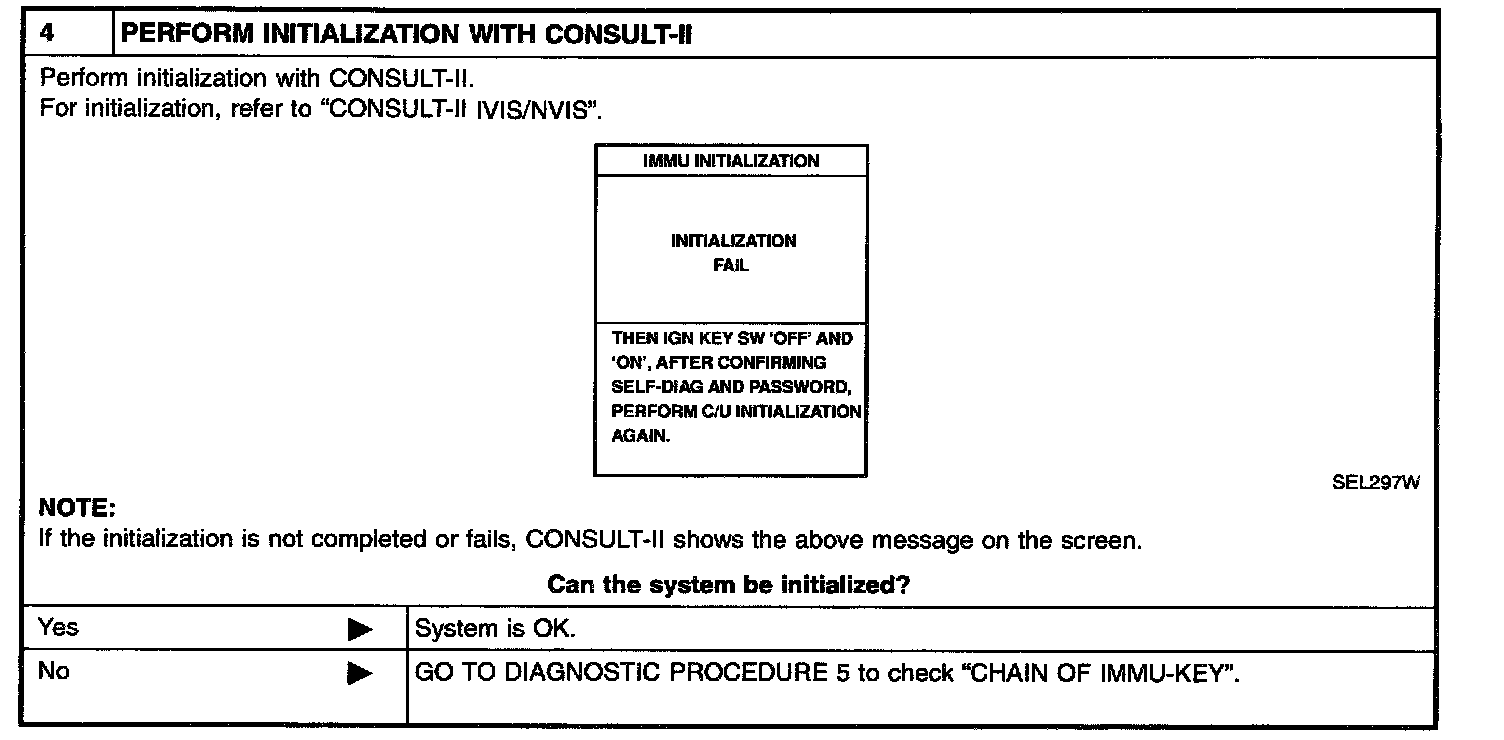

Step 4:
DIAGNOSTIC PROCEDURE 7
Self-diagnostic results: "LOCK MODE" displayed on CONSULT-II screen
