NVIS (Nissan Vehicle Immobilizer System-NATS)
>>
Diagnosis By Symptom
>>
Diagnostic Procedure 6
Diagnostic Procedure 6

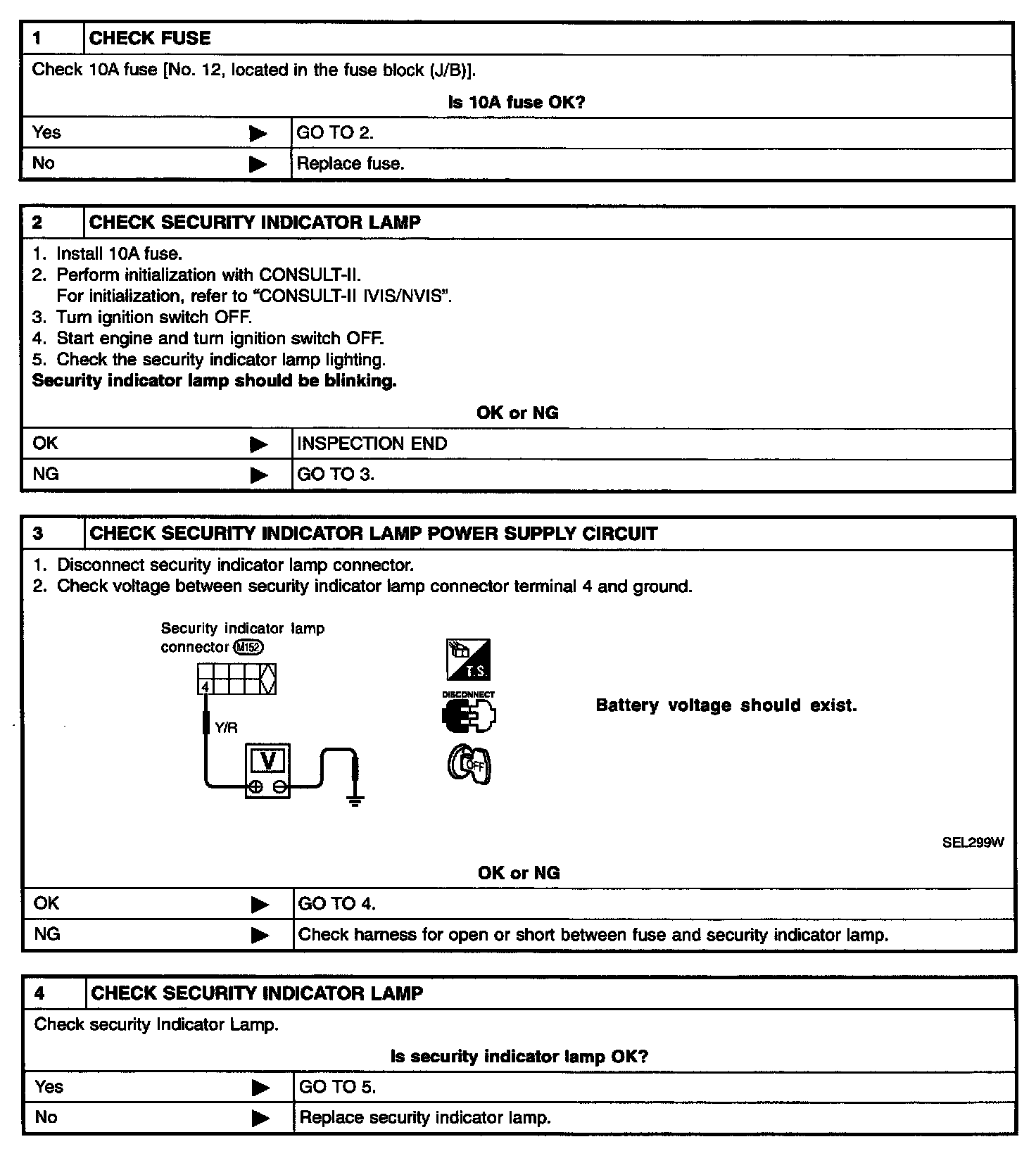

Steps 1 - 4:

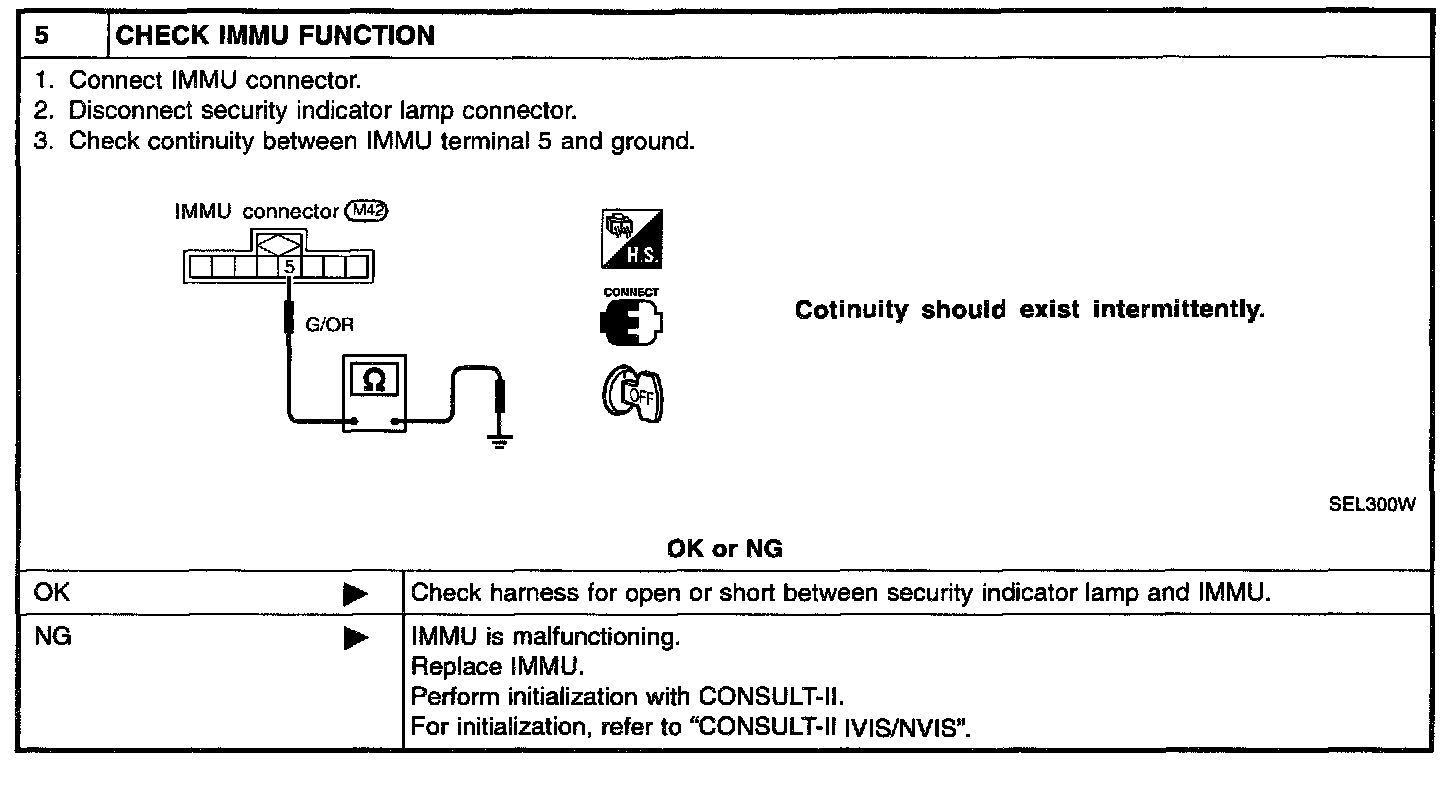

Step 5:
DIAGNOSTIC PROCEDURE 6
"SECURITY INDICATOR LAMP DOES NOT LIGHT UP"
