Diagnostic Procedure 2

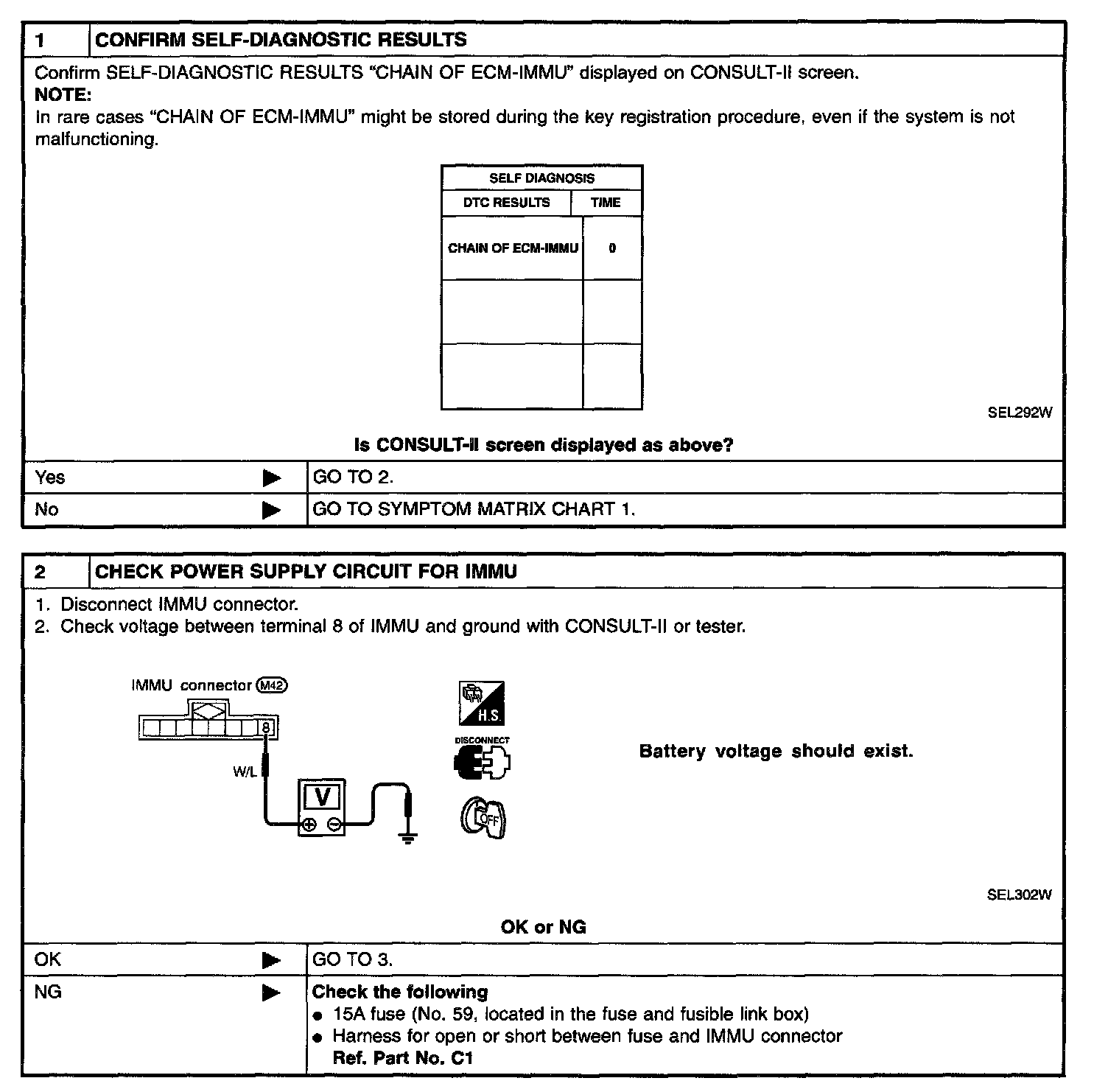

Steps 1 - 2:

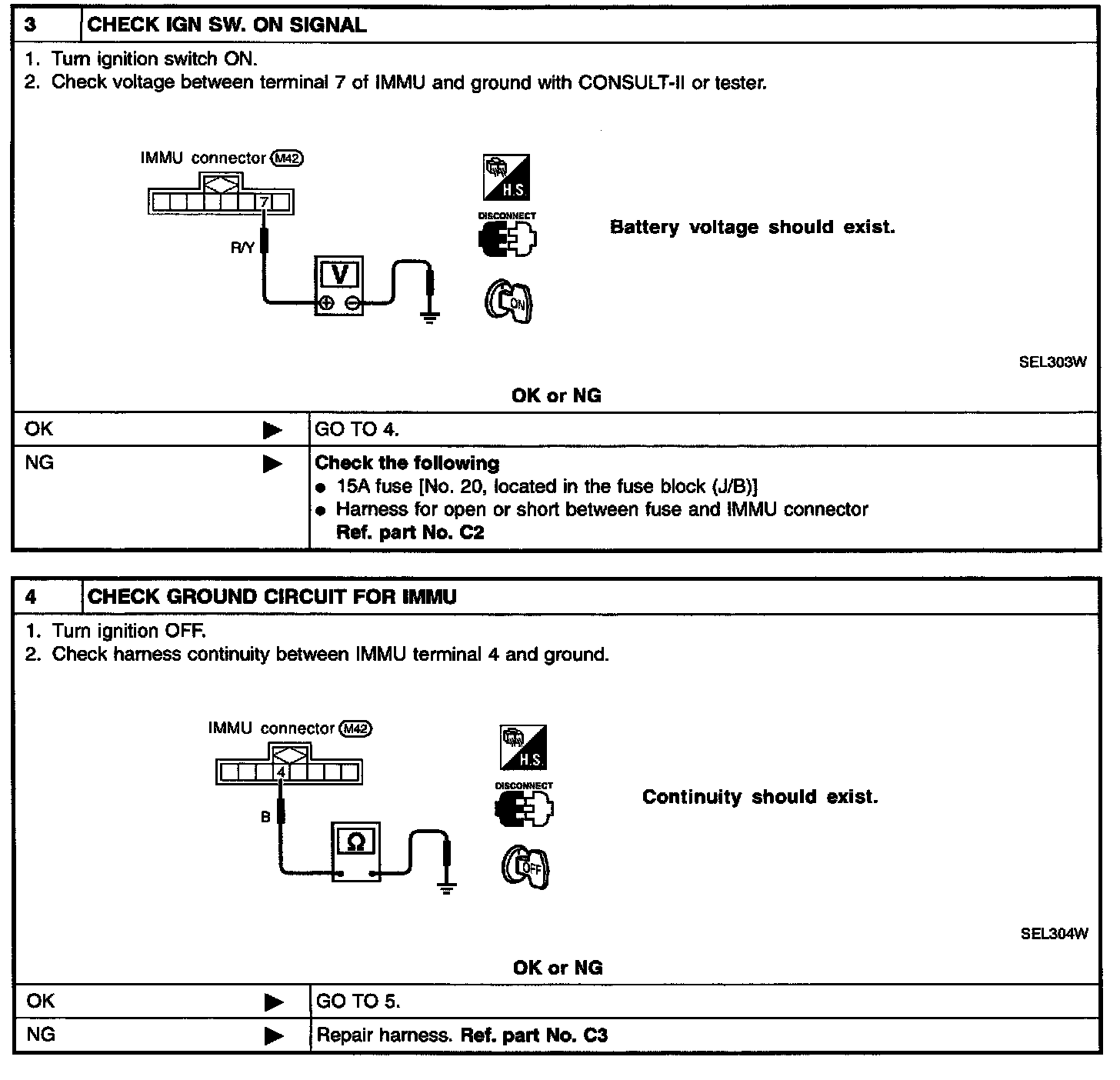

Steps 3 - 4:

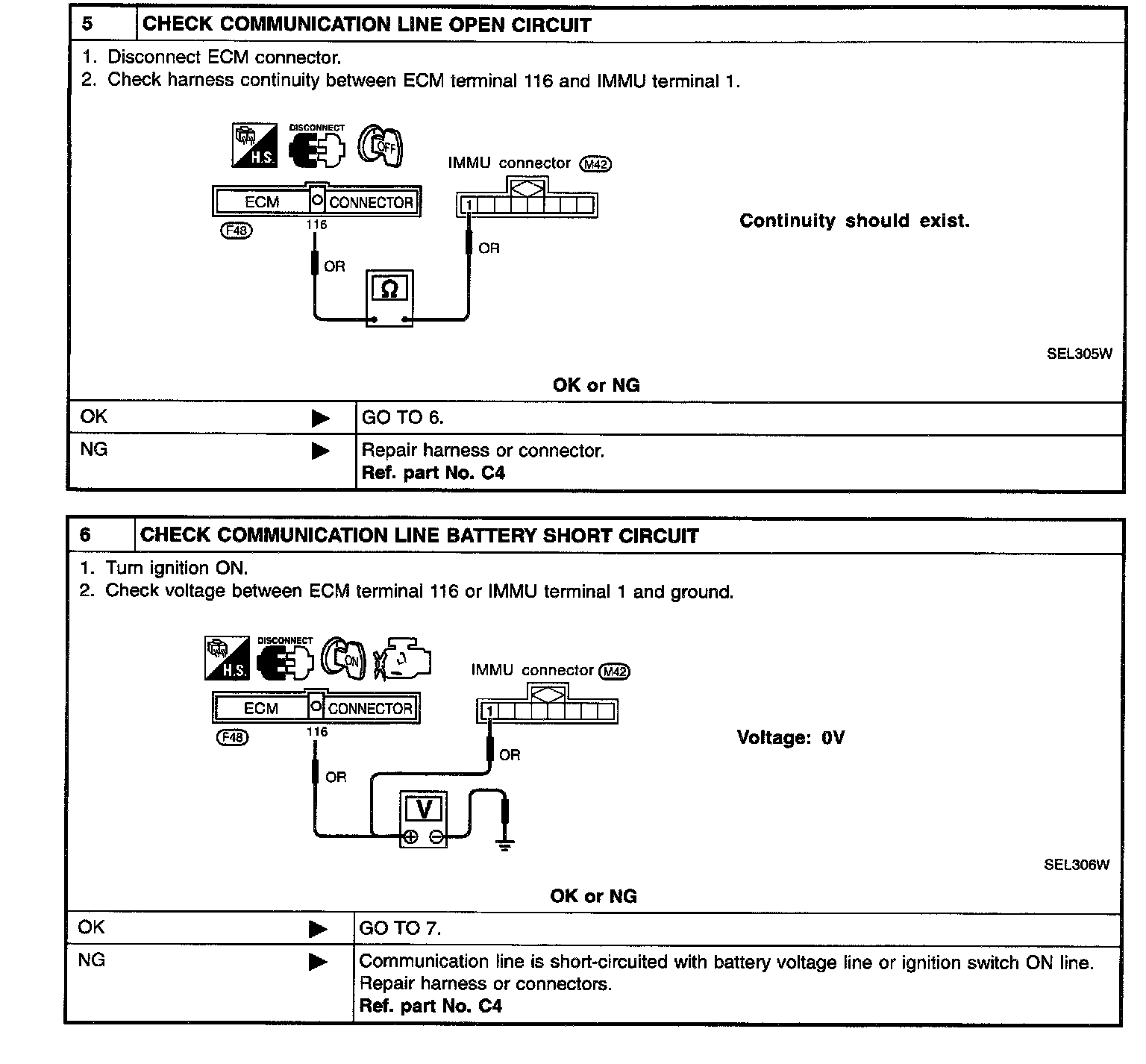

Steps 5 - 6:

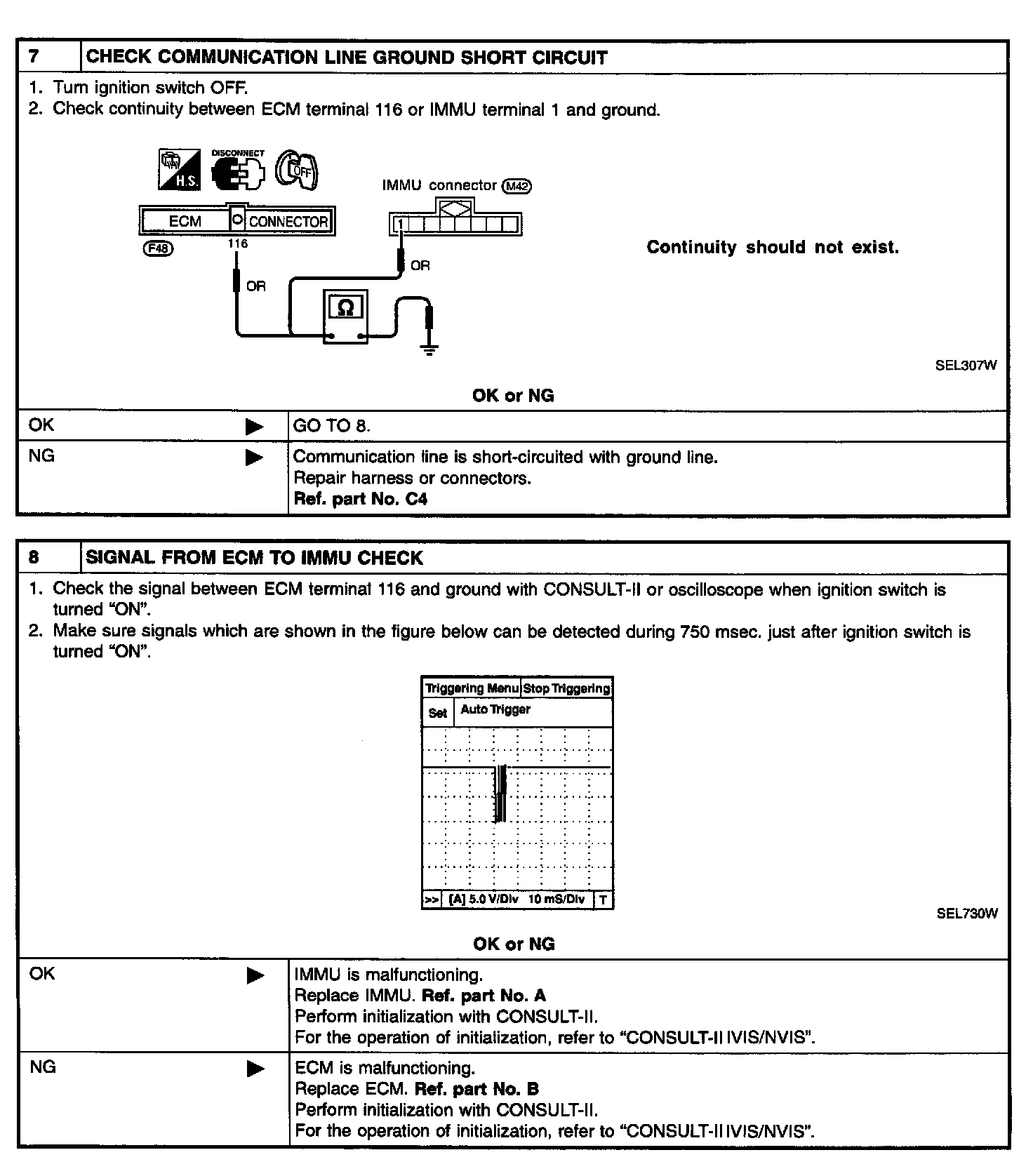

Steps 7 - 8:




DIAGNOSTIC PROCEDURE 2
Self-diagnostic results: "CHAIN OF ECM-IMMU" displayed on CONSULT-II screen
