Inspection Table

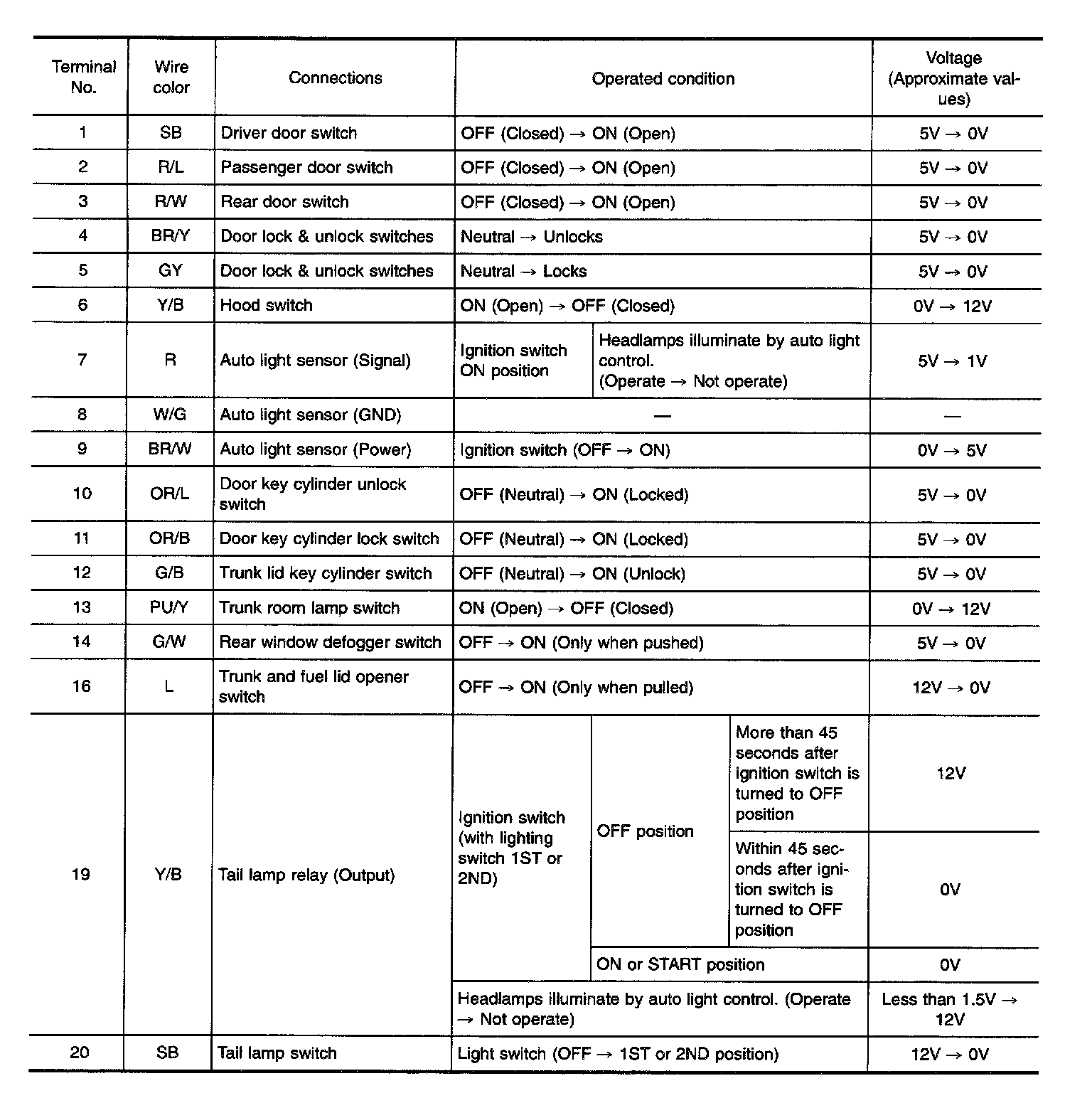

Smart Entrance Control Unit Inspection Table (Terminal No. 1 - 20):

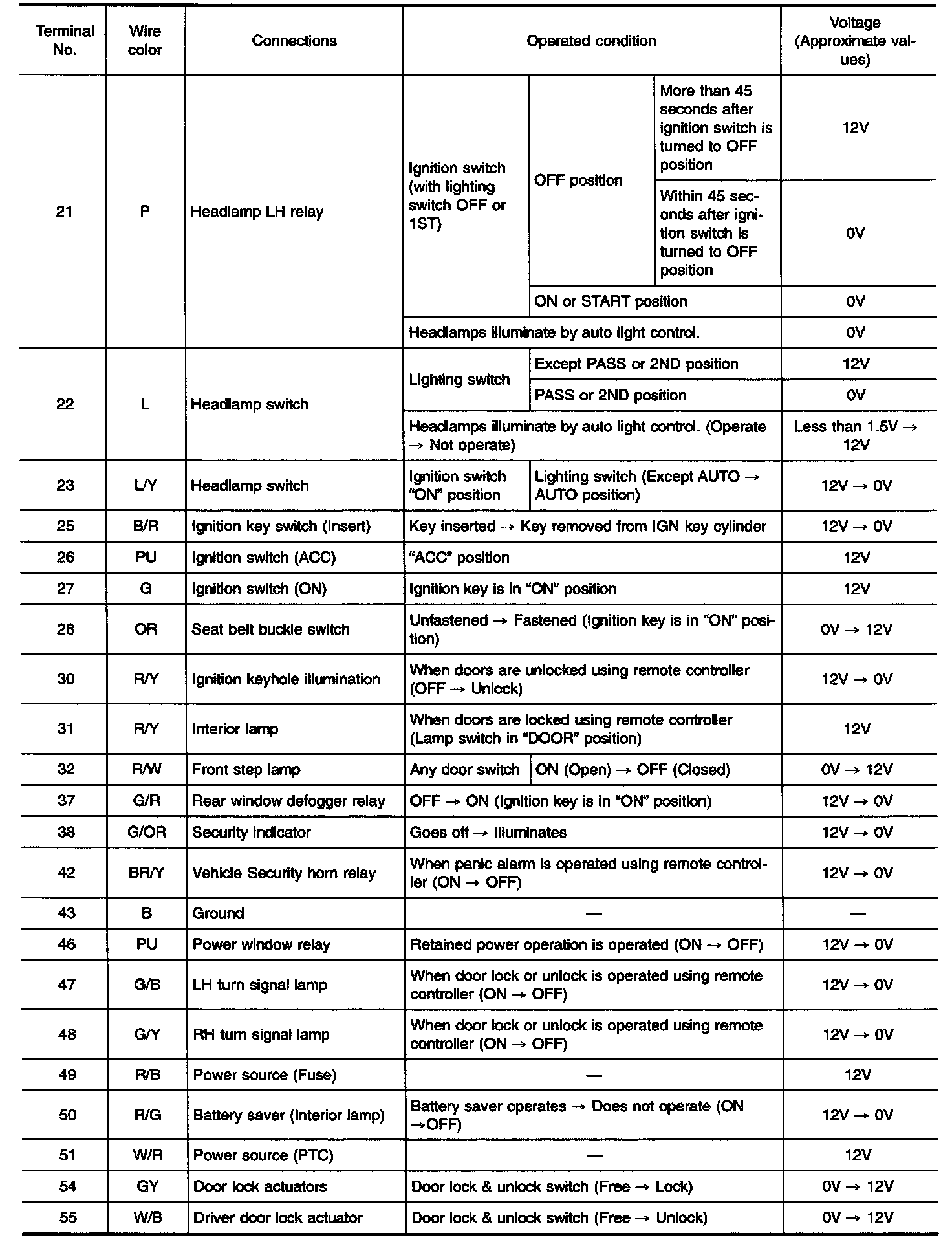

Smart Entrance Control Unit Inspection Table (Terminal No. 21 - 55):

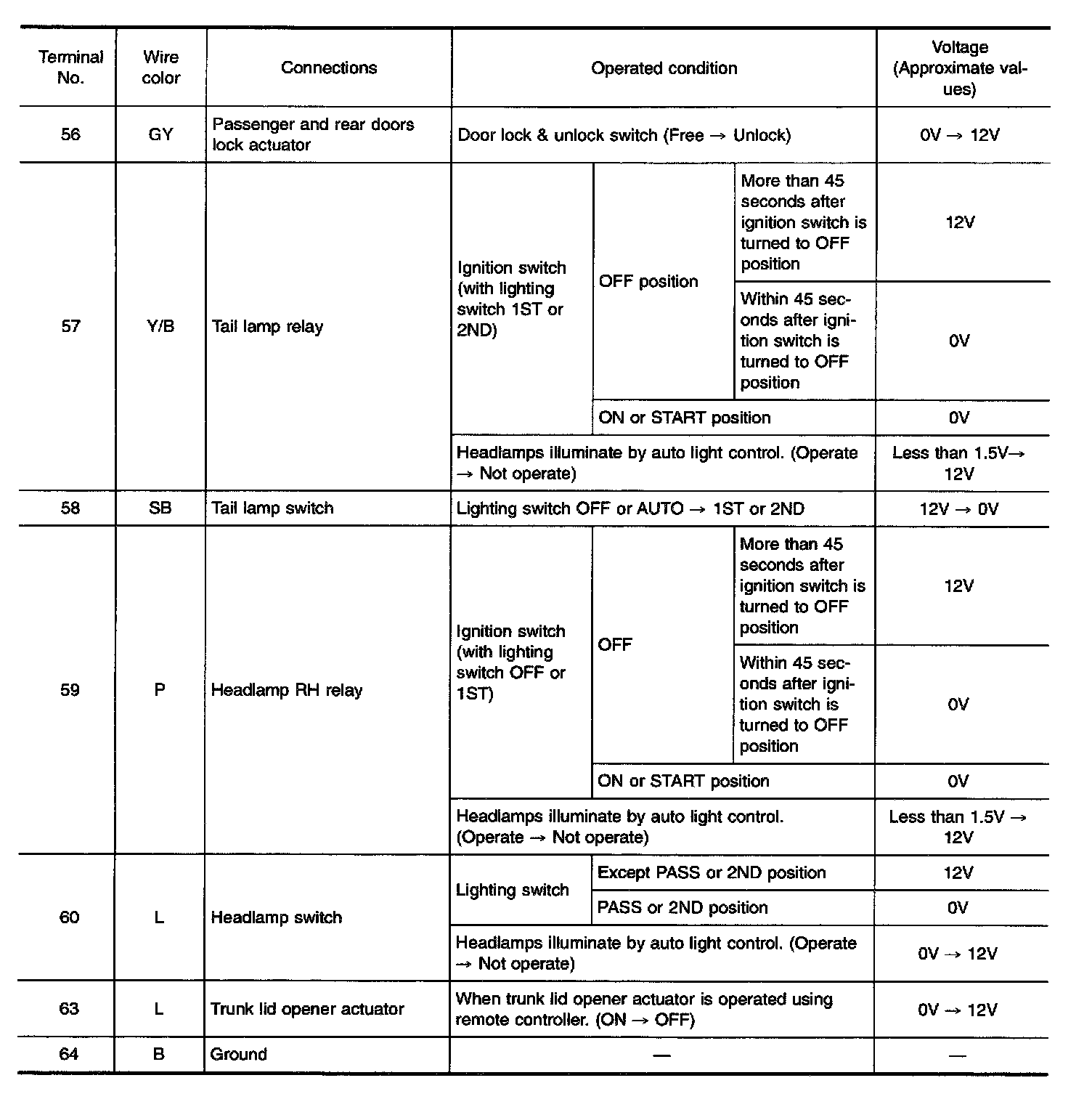

Smart Entrance Control Unit Inspection Table (Terminal No. 56 - 64):
