Connector Views

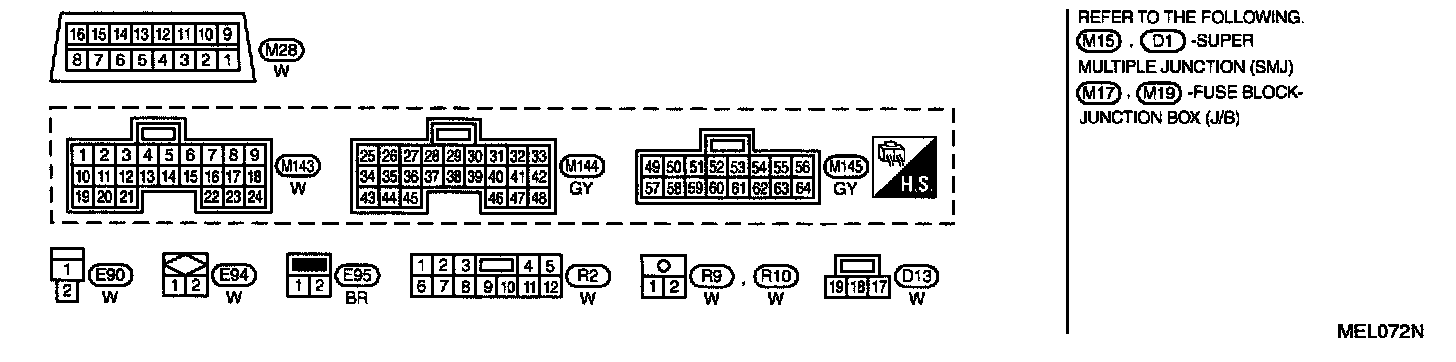

EL-MULTI-01 Connector Views:

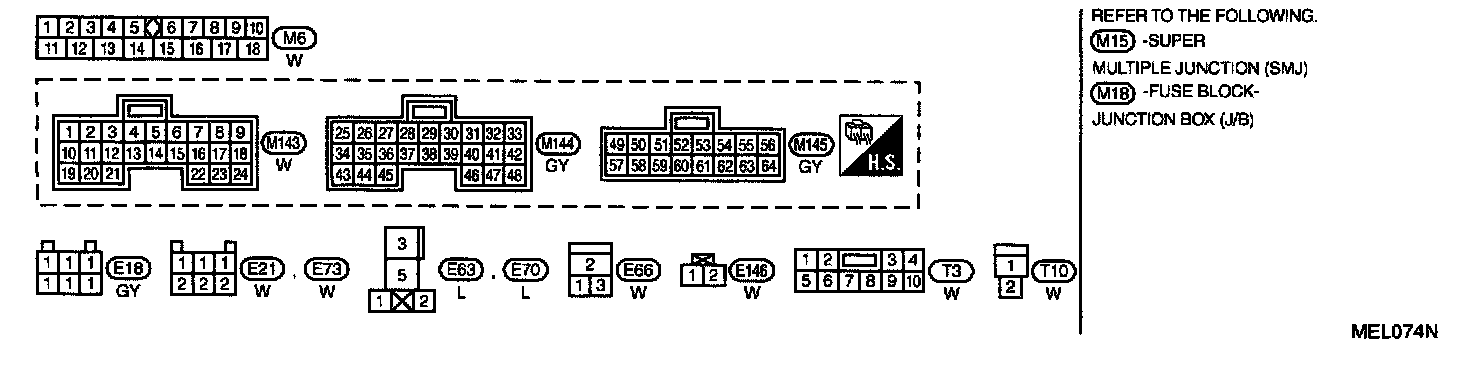

EL-MULTI-02 Connector Views:

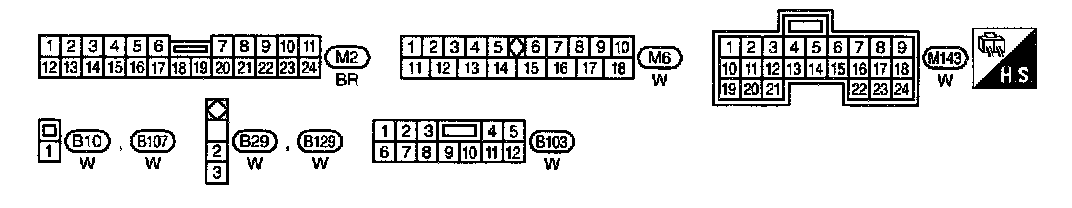

EL-MULTI-03 Connector Views:

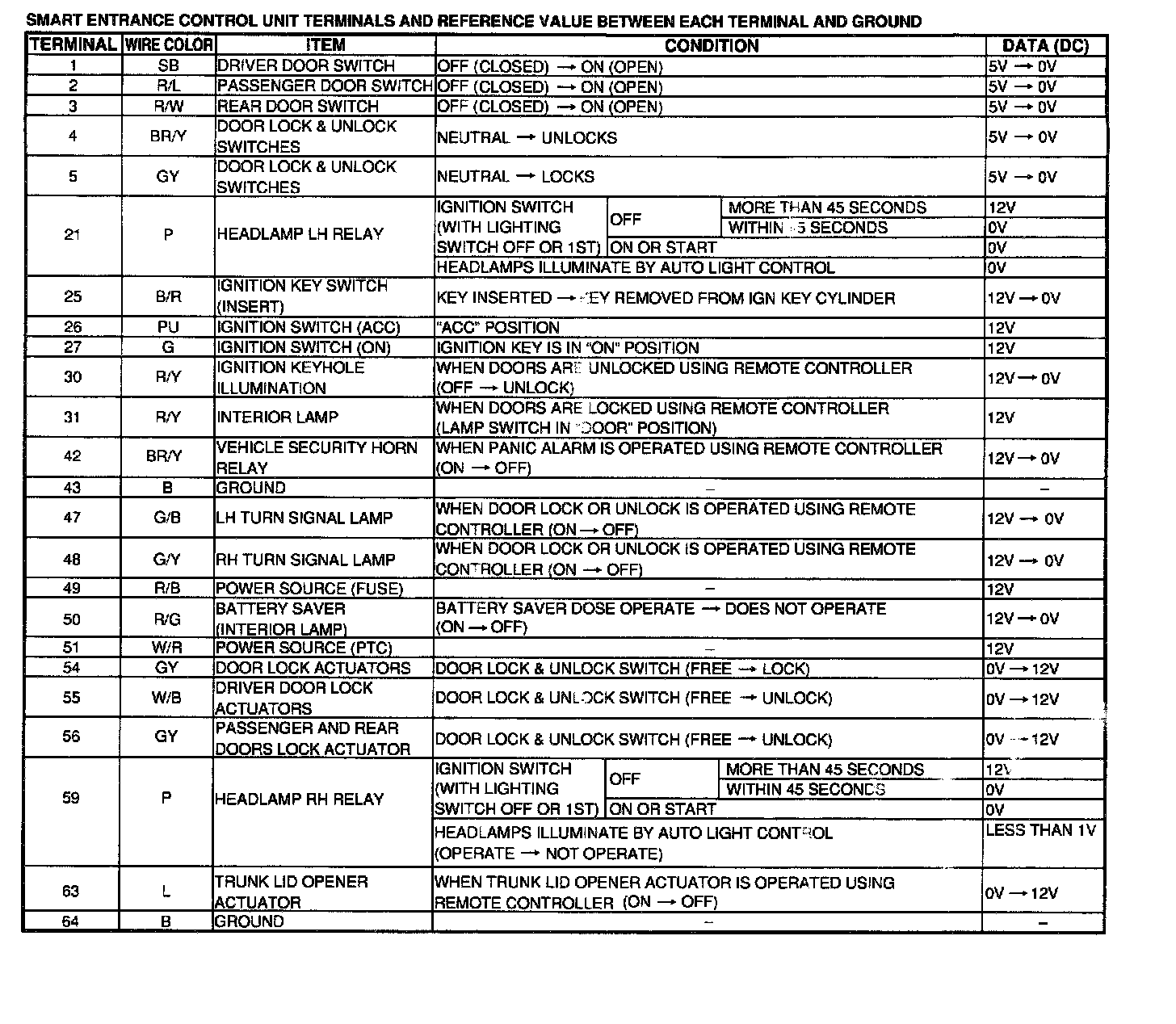

Smart Entrance Control Unit Terminals And Reference Value:
