P0161
DESCRIPTIONSYSTEM DESCRIPTION

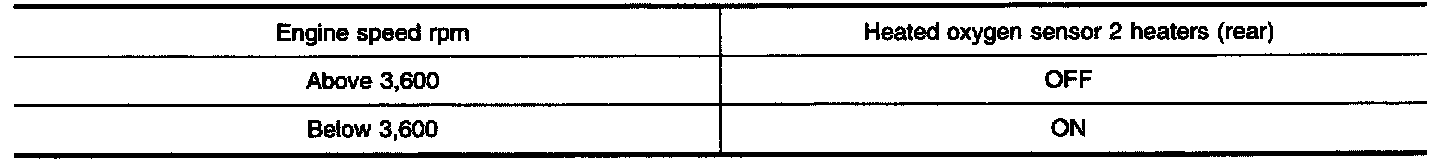

The ECM performs ON/OFF control of the heated oxygen sensor 2 heaters (rear) corresponding to the engine speed.
Operation:

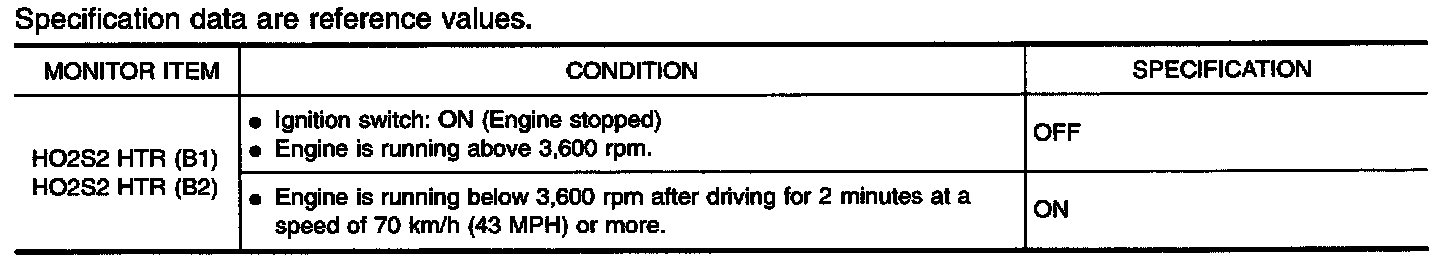

Consult-II Reference Value In Data Monitor Mode:
ON BOARD DIAGNOSIS LOGIC
Malfunction is detected when the current amperage in the heated oxygen sensor 2 heater (rear) circuit is out of the normal range. [An improper voltage drop signal is sent to ECM through the heated oxygen sensor 2 heater (rear).]
Possible Cause
- Harness or connectors
[The heated oxygen sensor 2 heater (rear) circuit is open or shorted.]
- Heated oxygen sensor 2 heater (rear)
DTC Confirmation Procedure
NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.
TESTING CONDITION: Before performing the following procedure, confirm that battery voltage is between 10.5 V and 16 V at idle.
WITH CONSULT-II

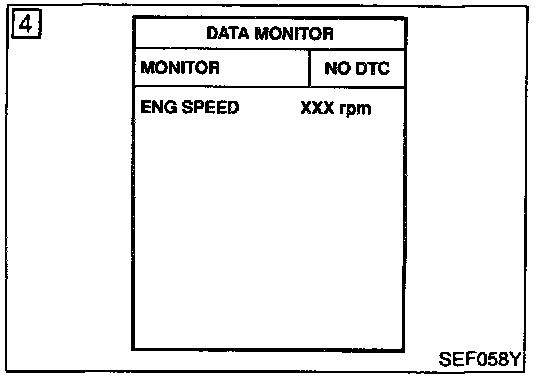

1. Turn ignition switch "ON" and select "DATA MONITOR" mode with CONSULT-II.
2. Start engine.
3. Drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.
4. Stop vehicle and let engine idle for at least 6 seconds.
5. If 1st trip DTC is detected, go to "Diagnostic Procedure" at the end of the article.
WITH GST
1. Start engine.
2. Drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.
3. Stop vehicle and let engine idle for at least 6 seconds.
4. Turn ignition switch "OFF" and wait at least 10 seconds.
5. Start engine.
6. Drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.
7. Stop vehicle and let engine idle for at least 6 seconds.
8. Select "MODE 3" with GST.
9. If DTC is detected, go to "Diagnostic Procedure" at the end of the article.
- When using GST, "DTC Confirmation Procedure" should be performed twice as much as when using CONSULT-II because GST cannot display MODE 7 (1st trip DTC) concerning this diagnosis. Therefore, using CONSULT-II is recommended.
EC-O2H2B2-01:
EC-O2H2B2-01 - Connector View:
ECM Terminals And Reference Value:
WIRING DIAGRAM
Fuse Block - Junction Block (J/B) - Terminal Arrangement (B5, E83, E87, E89, M17, M18, M19):

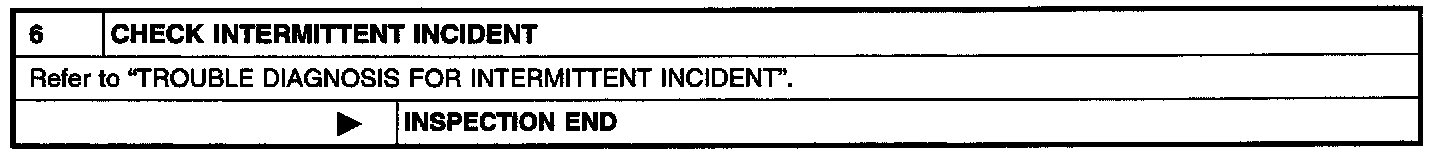

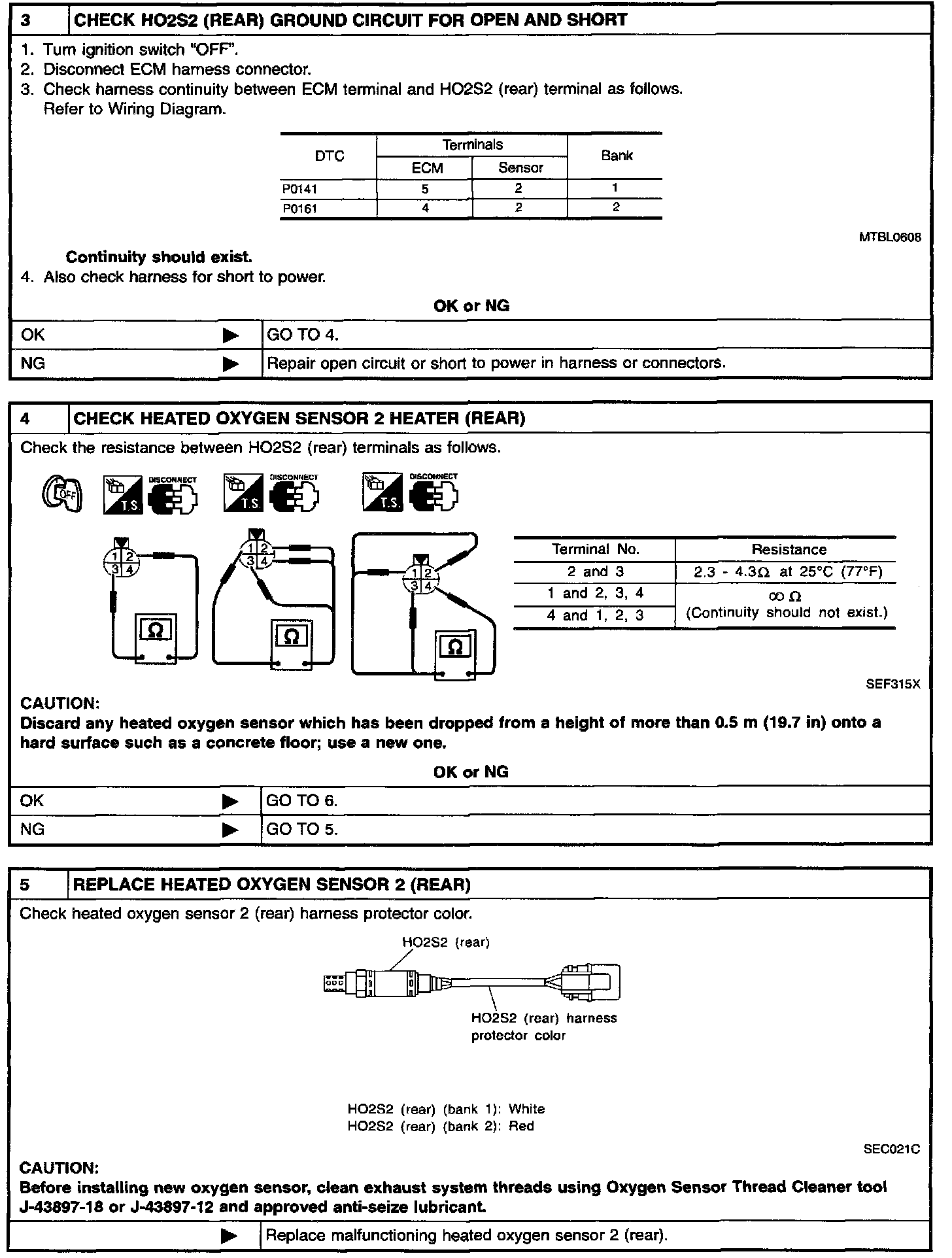

DIAGNOSTIC PROCEDURE
