Home >> Nissan-Datsun >> 2001 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control System >> TCS >> DTC 81

DTC 81

ENG SPEED SIG-Engine Speed Signal

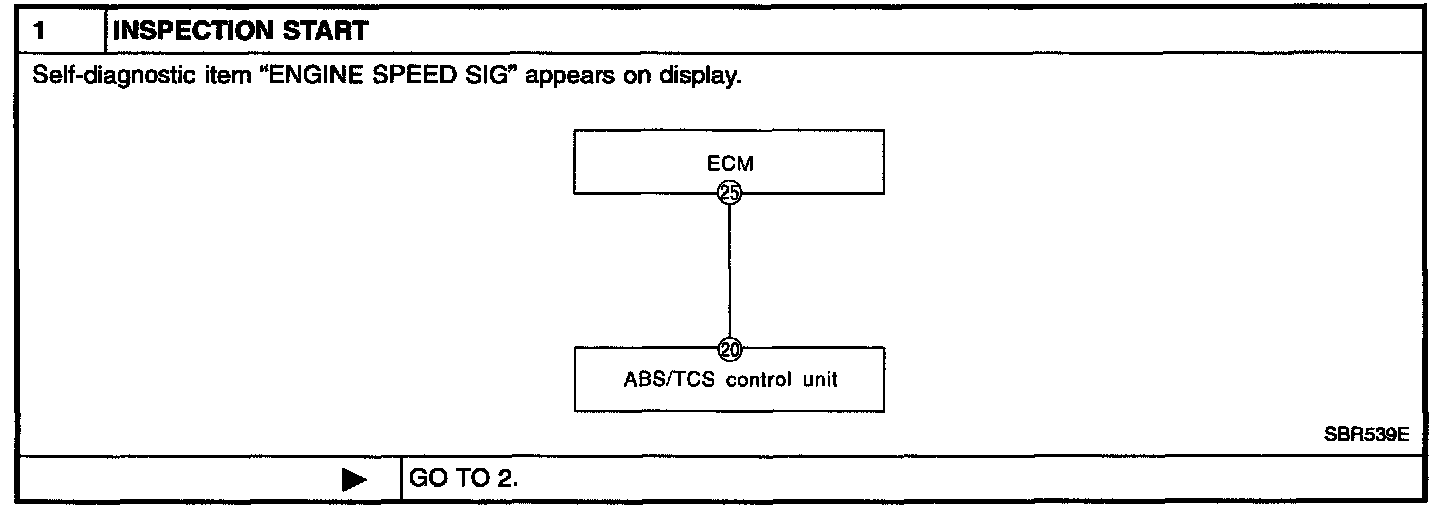

INSPECTION START





CHECK ENGINE SYSTEM

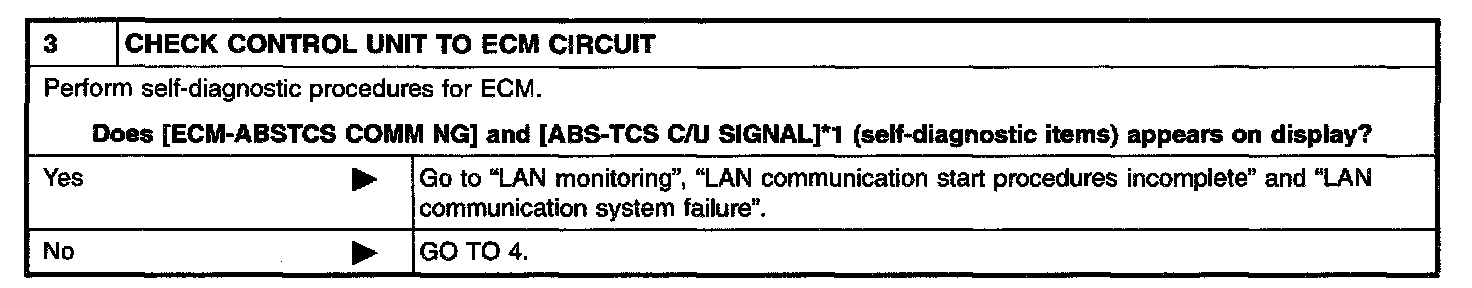

CHECK CONTROL UNIT TO ECM CIRCUIT

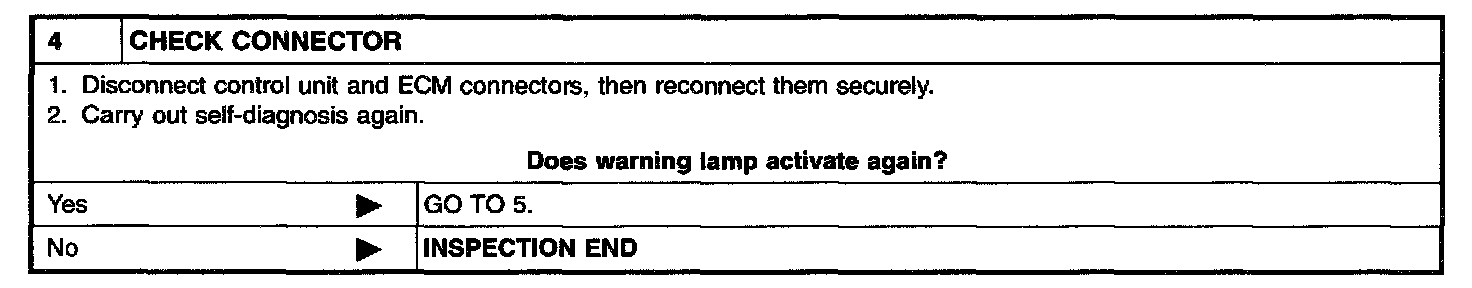

CHECK CONNECTOR

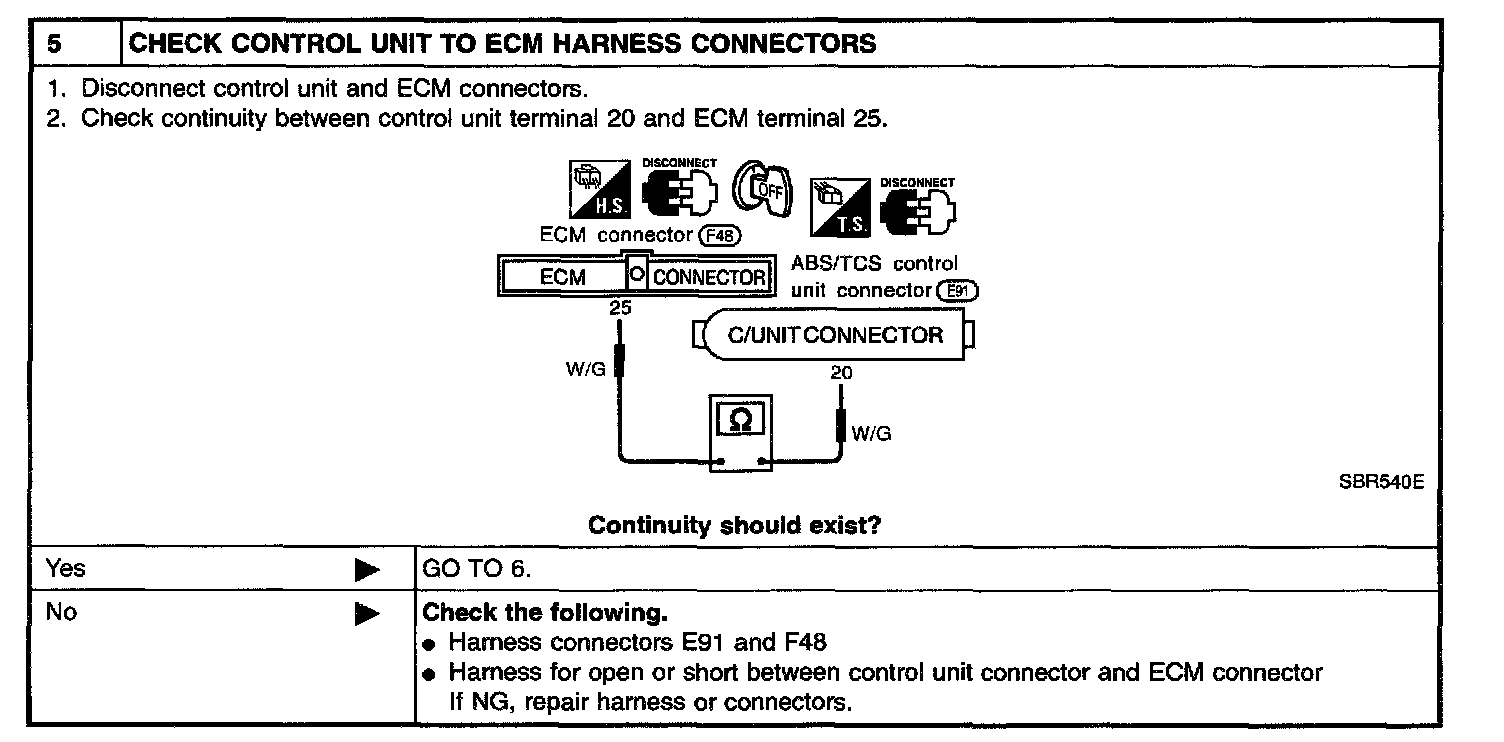

CHECK CONTROL UNIT TO ECM HARNESS CONNECTORS

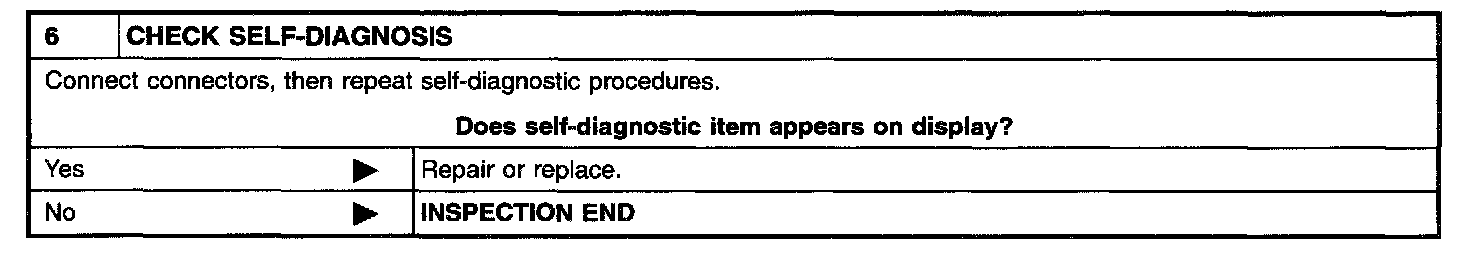

CHECK SELF-DIAGNOSIS
