DTC 71

Control Unit

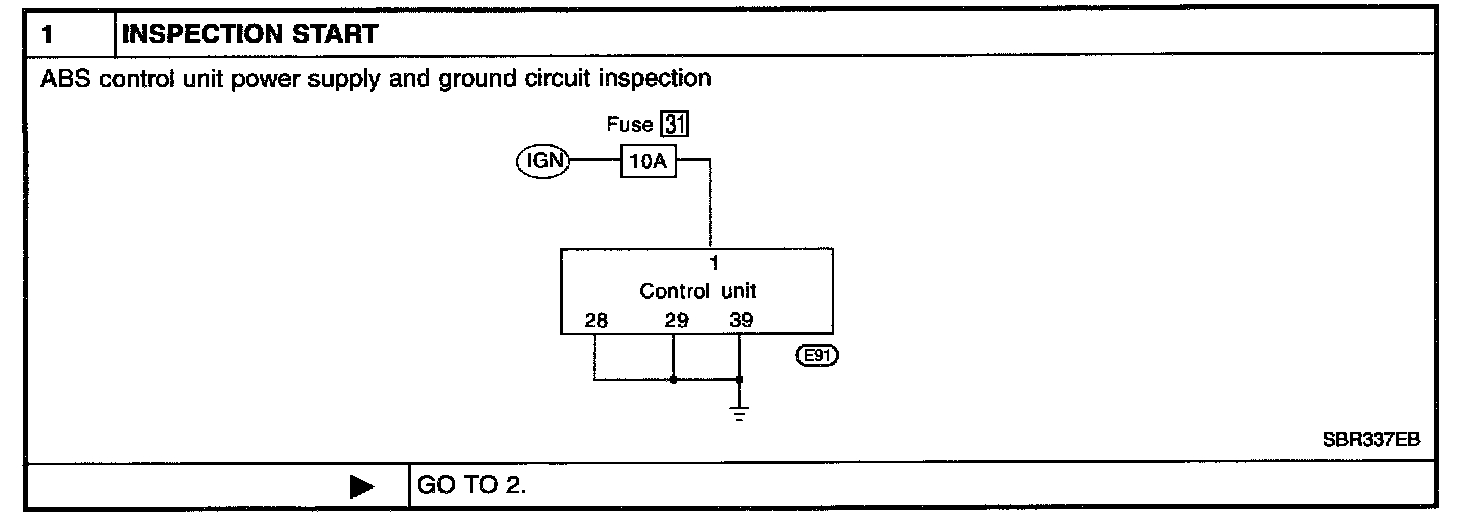

INSPECTION START





CHECK CONNECTOR





CHECK ABS CONTROL UNIT POWER SUPPLY CIRCUIT

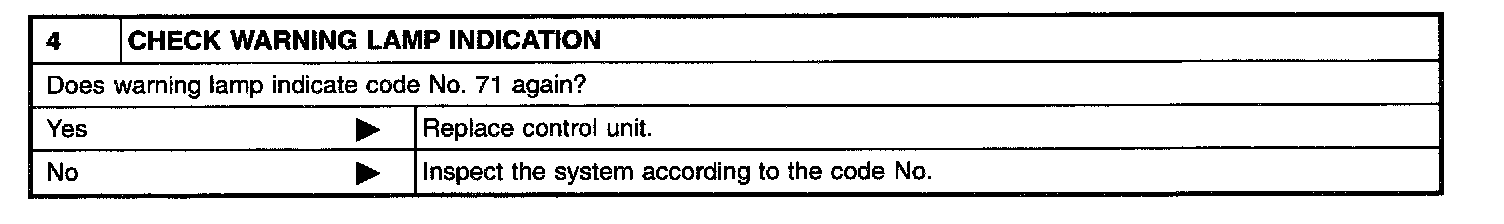

CHECK WARNING LAMP INDICATION
