Home >> Nissan-Datsun >> 2001 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control System >> ABS >> DTC 57

DTC 57

Low Voltage

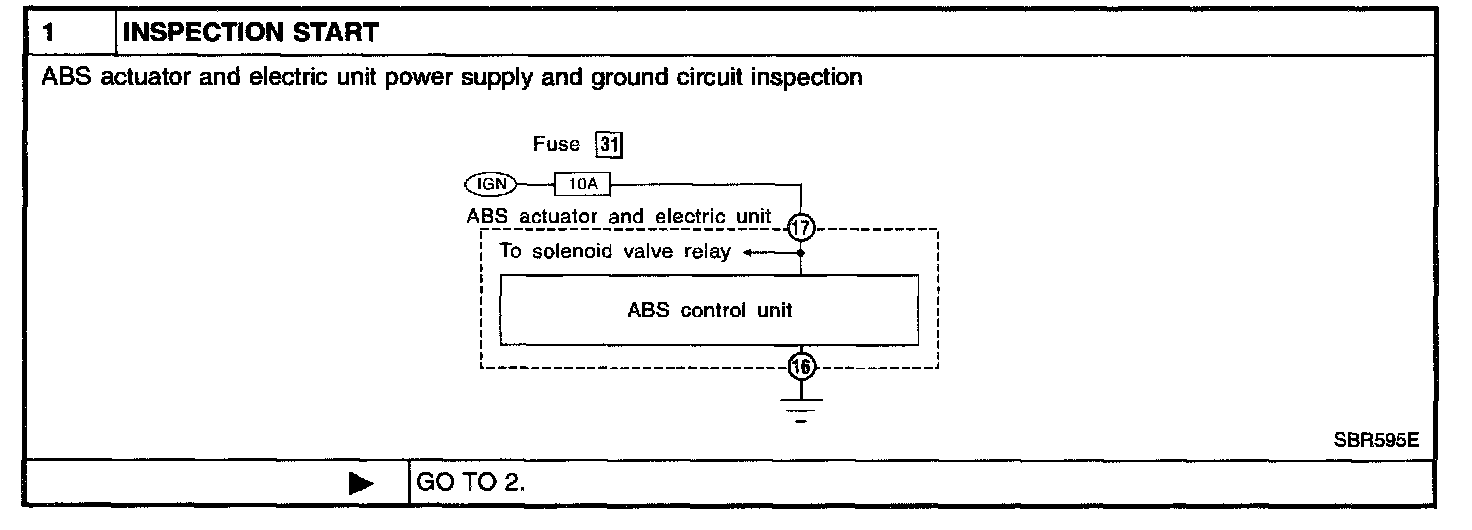

INSPECTION START

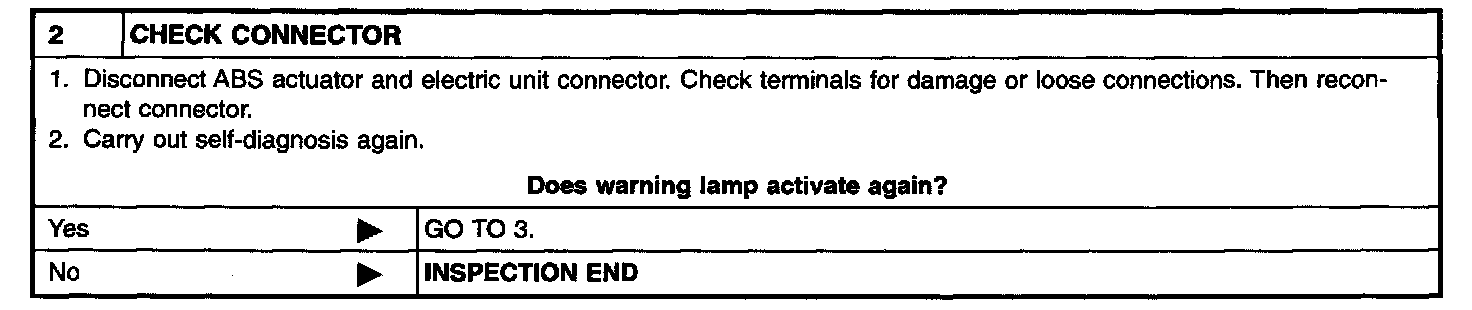

CHECK CONNECTOR

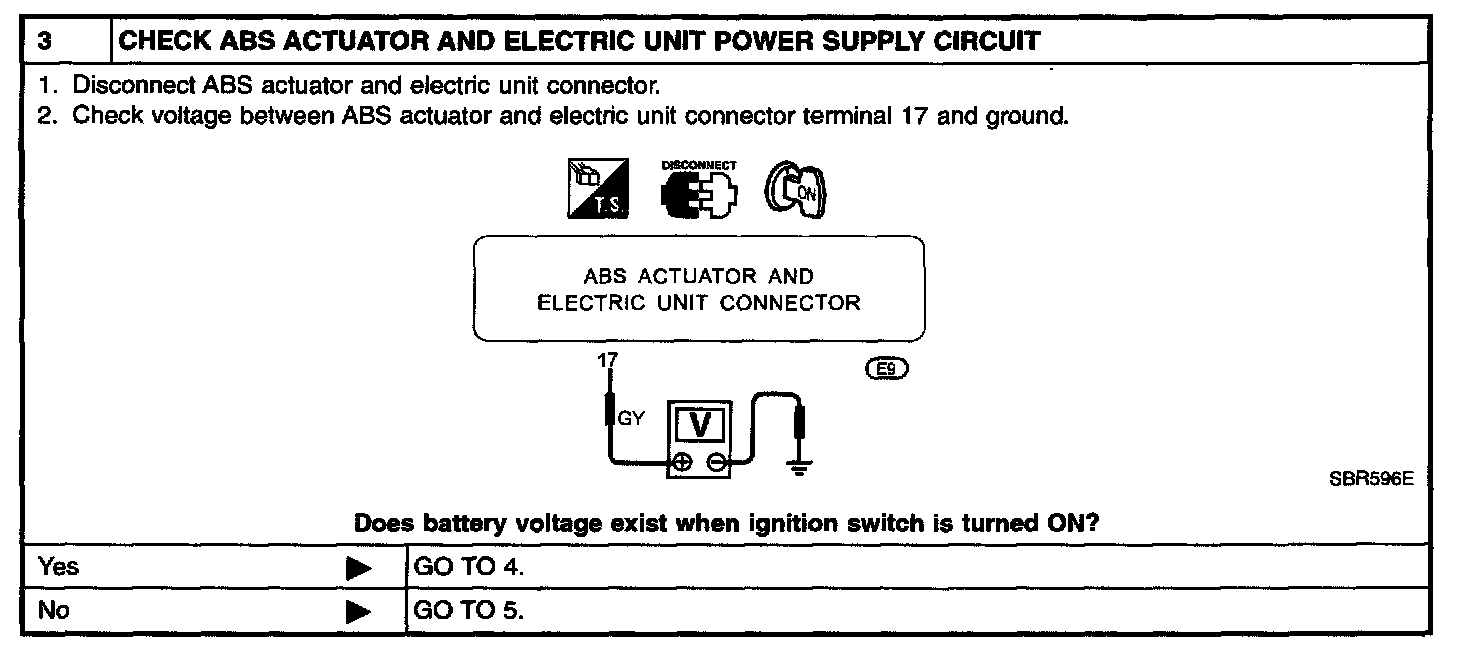

CHECK ABS ACTUATOR AND ELECTRIC UNIT POWER SUPPLY CIRCUIT

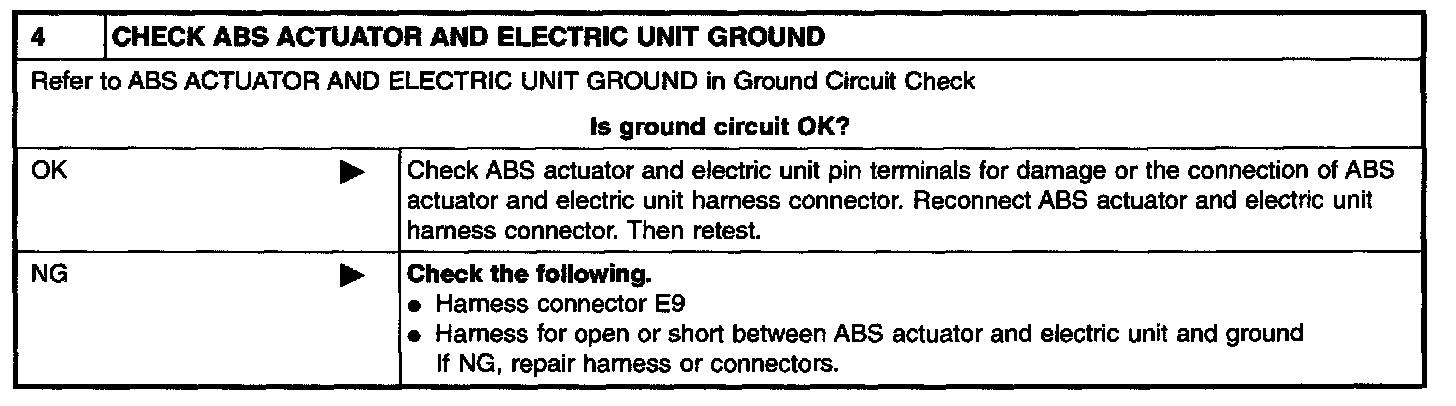

CHECK ABS ACTUATOR AND ELECTRIC UNIT GROUND

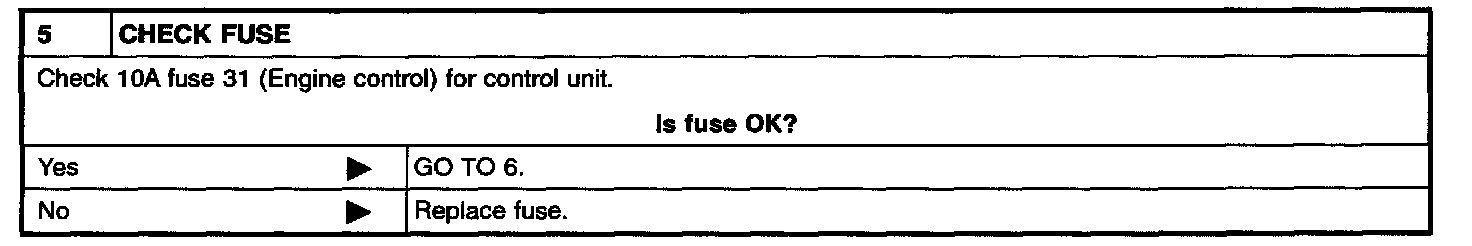

CHECK FUSE

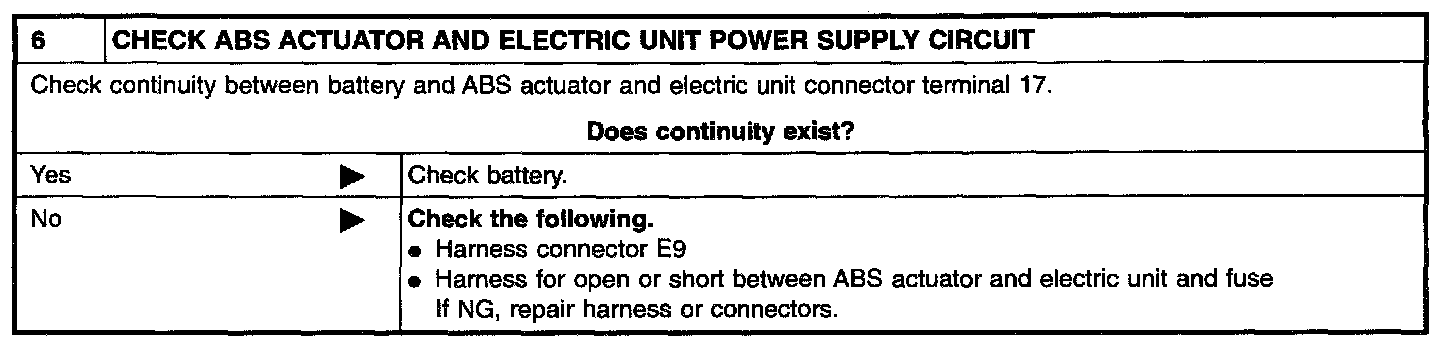

CHECK ABS ACTUATOR AND ELECTRIC UNIT POWER SUPPLY CIRCUIT
