DTC 36

Wheel Sensor or Rotor

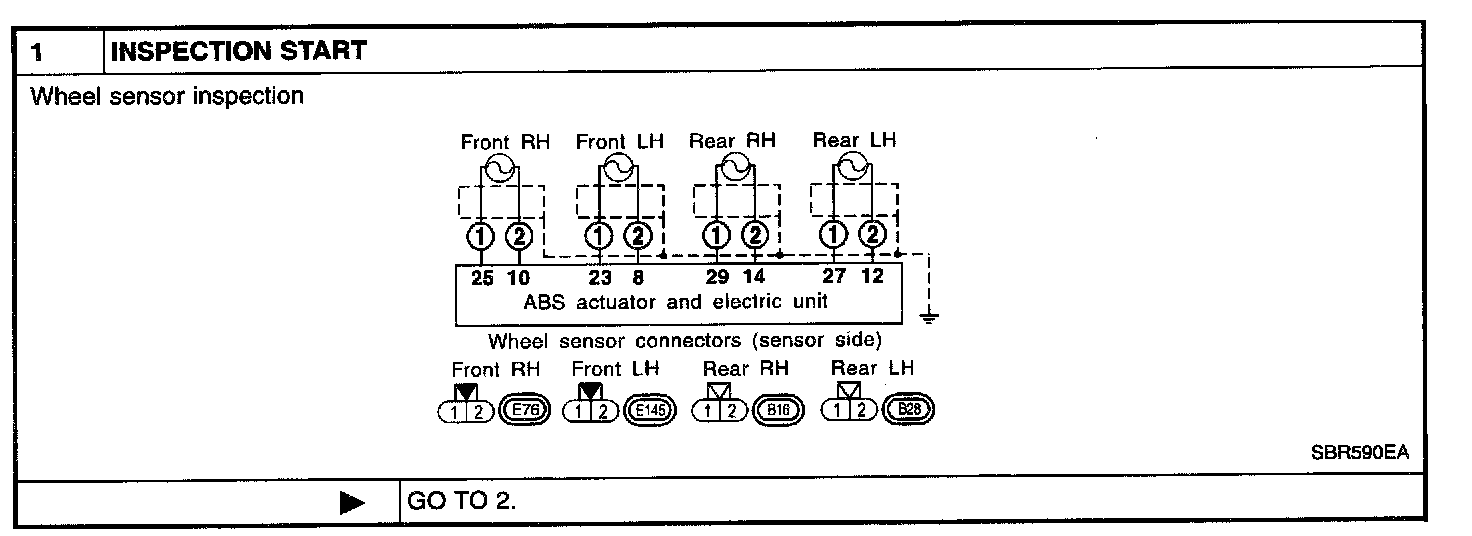

INSPECTION START

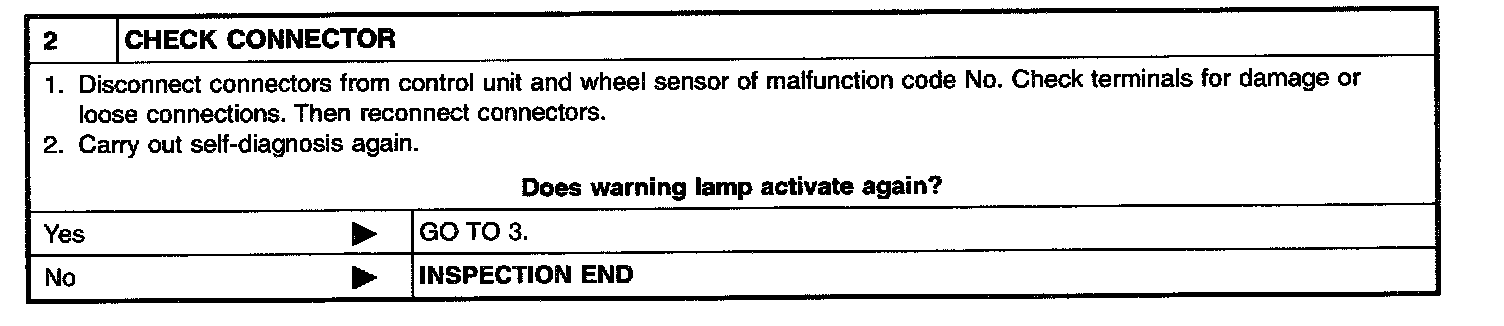

CHECK CONNECTOR

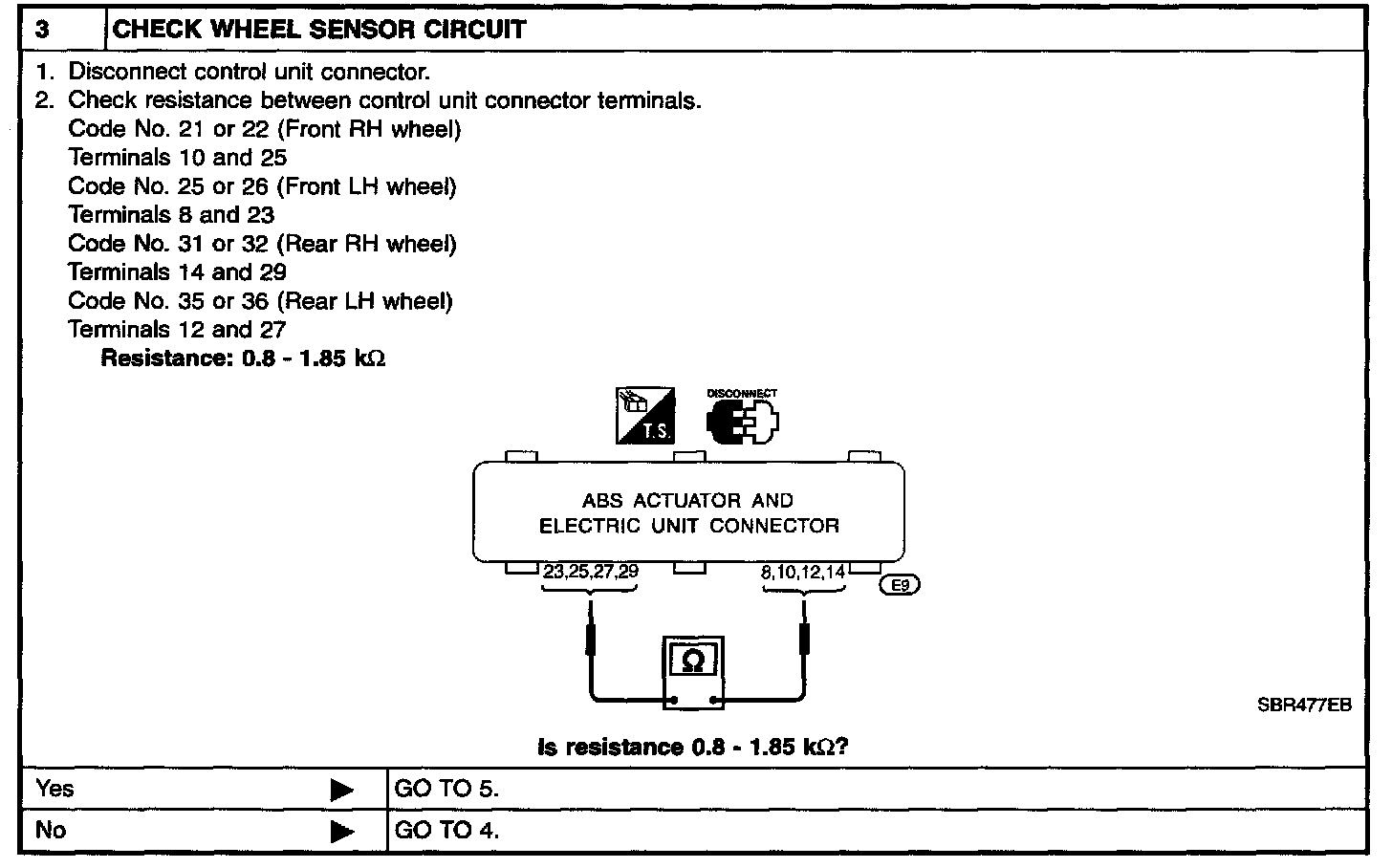

CHECK WHEEL SENSOR CIRCUIT

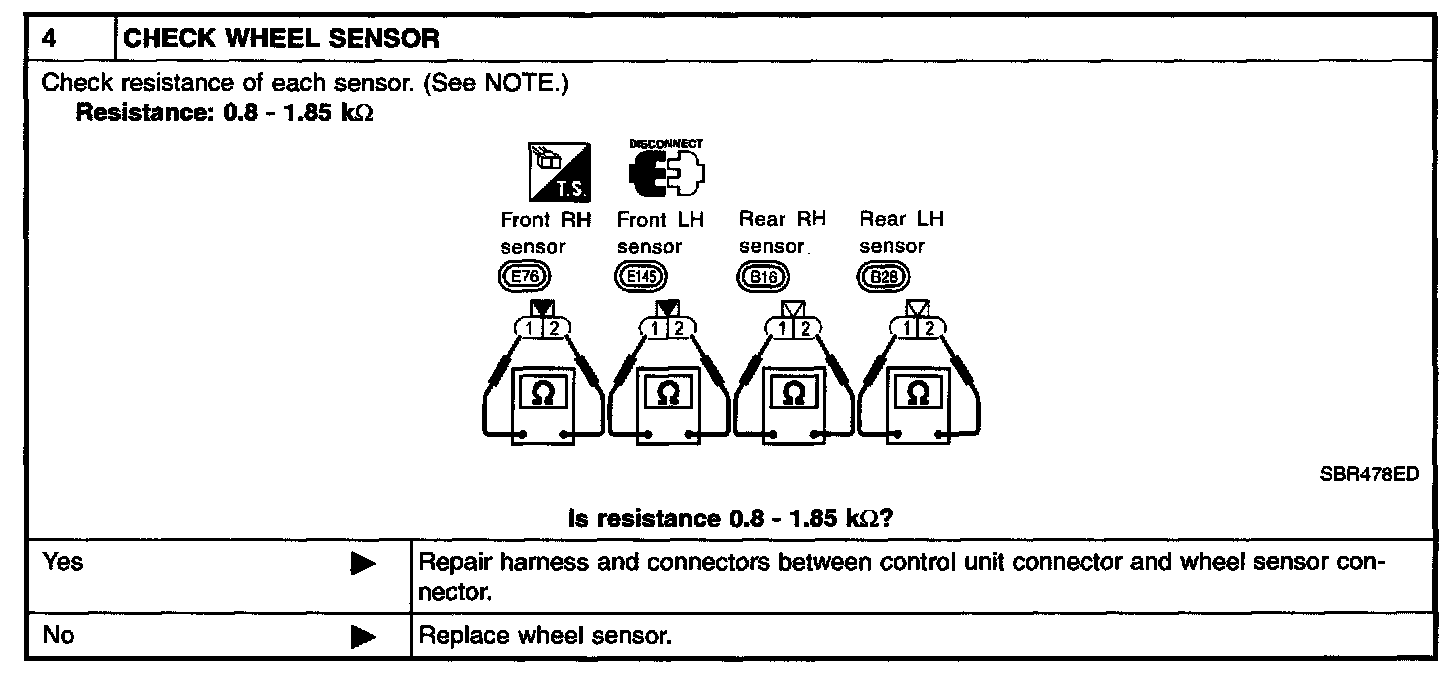

CHECK WHEEL SENSOR

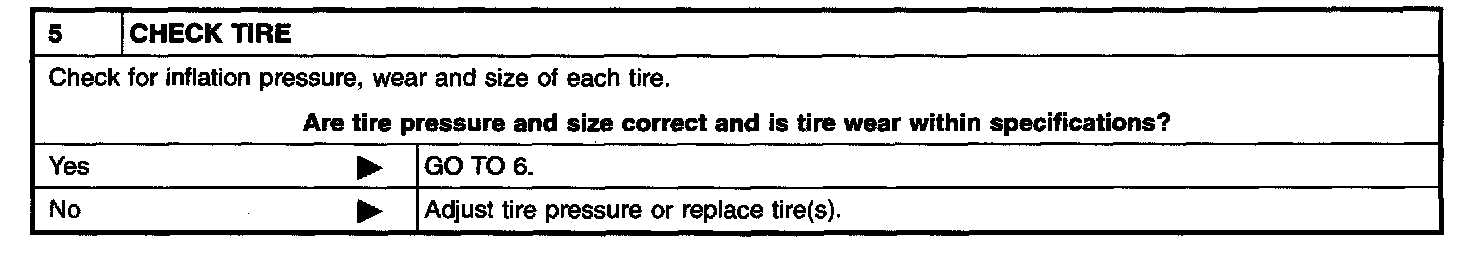

CHECK TIRE

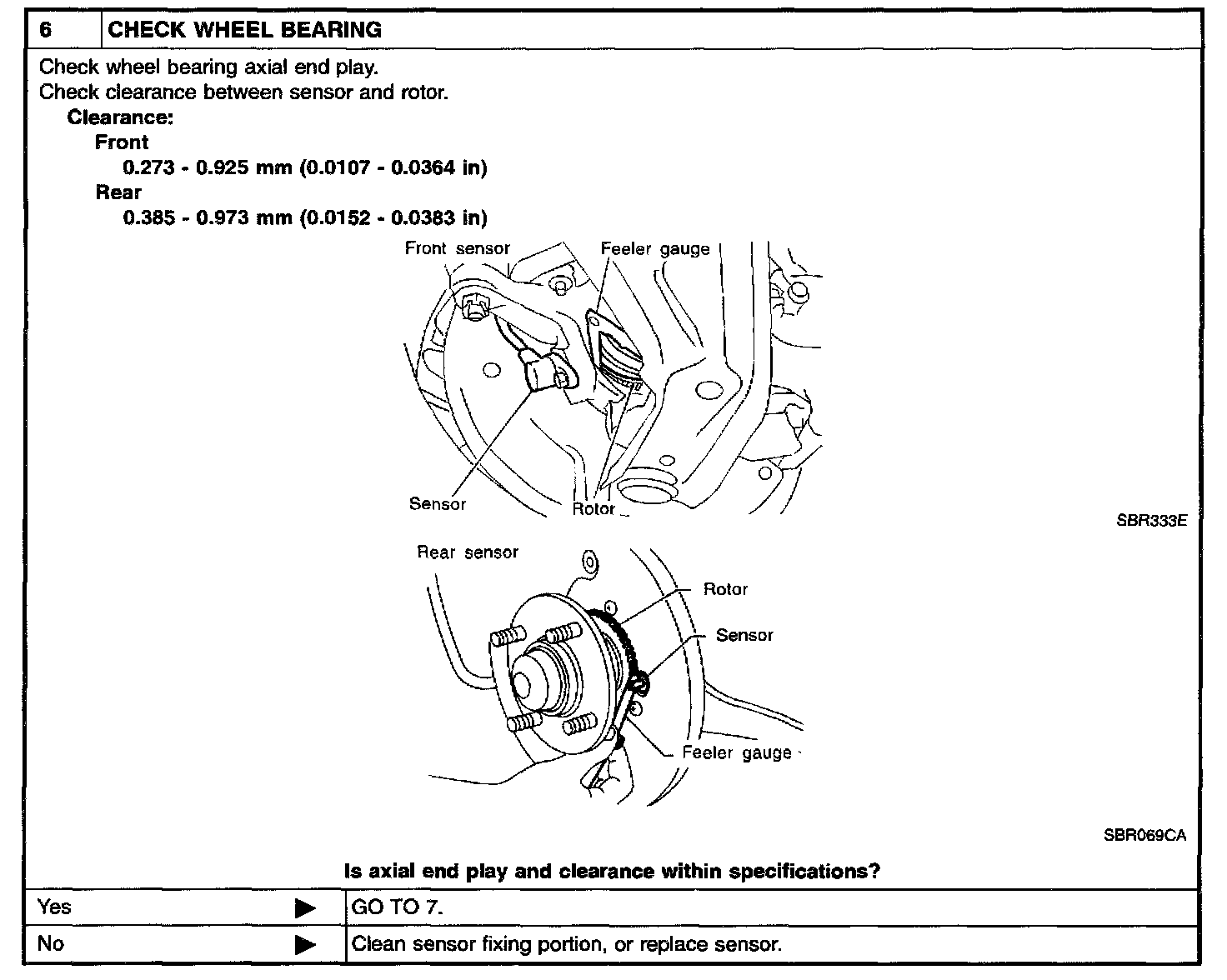

CHECK WHEEL BEARING

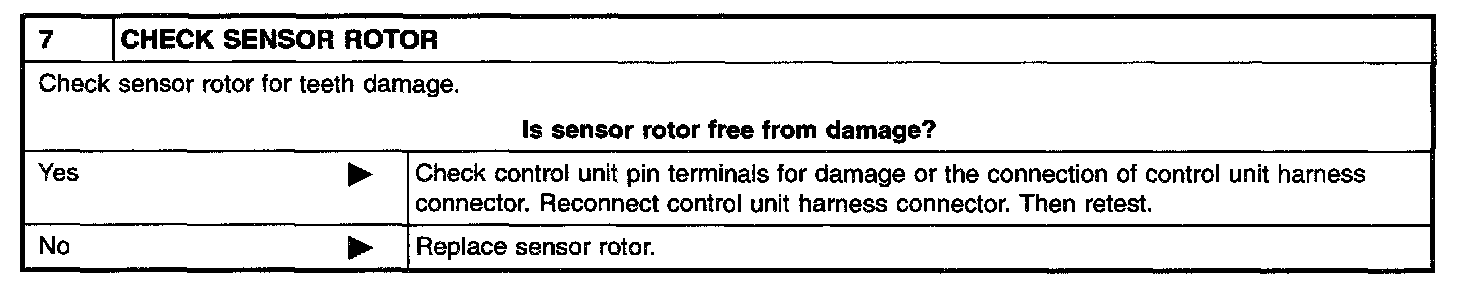

CHECK SENSOR ROTOR

NOTE: Wheel position should be identified by code No. except code No. 18 (sensor rotor).
