Engine Control System

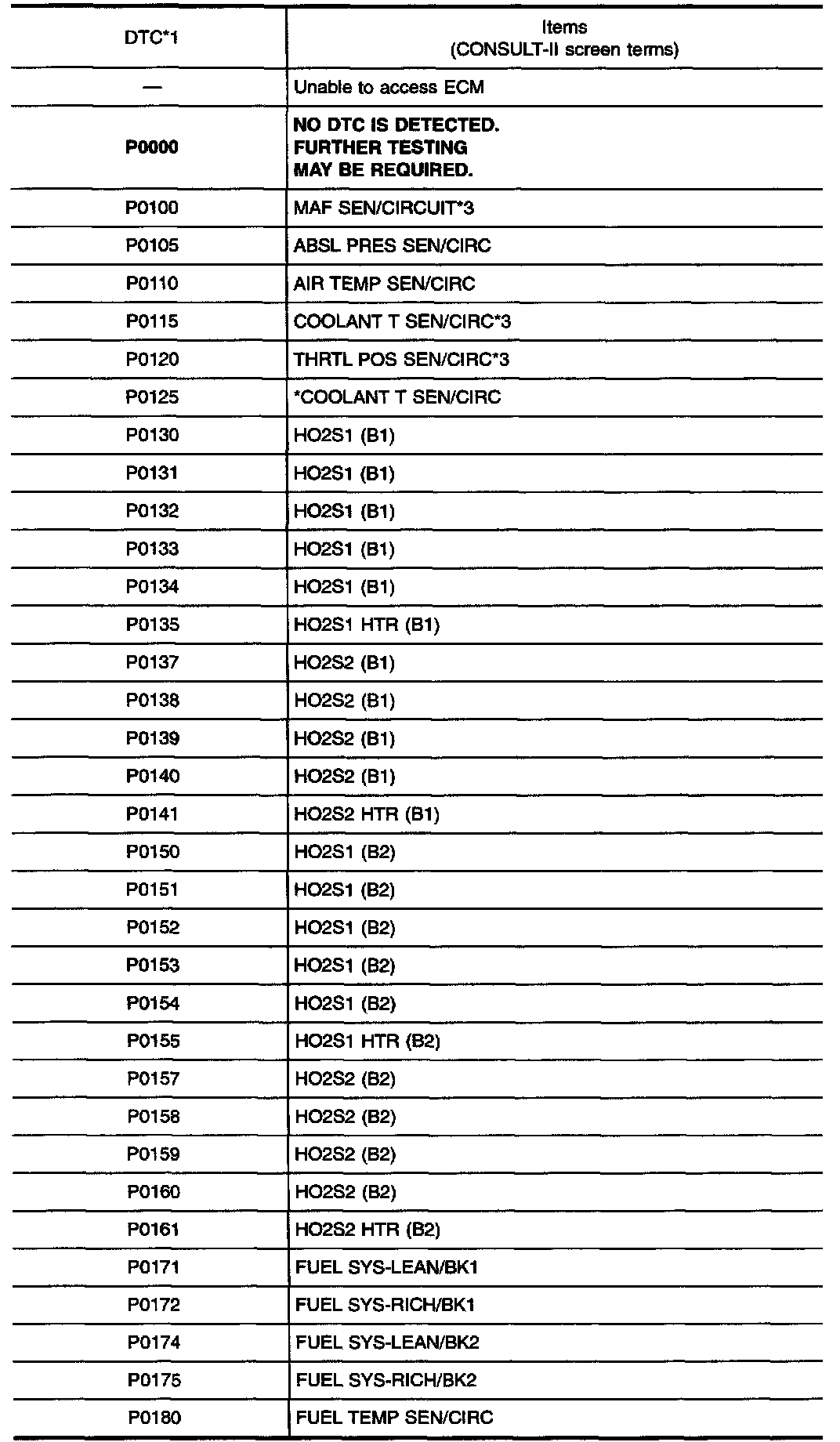

P No. Index For DTC: P0000 - P0180:

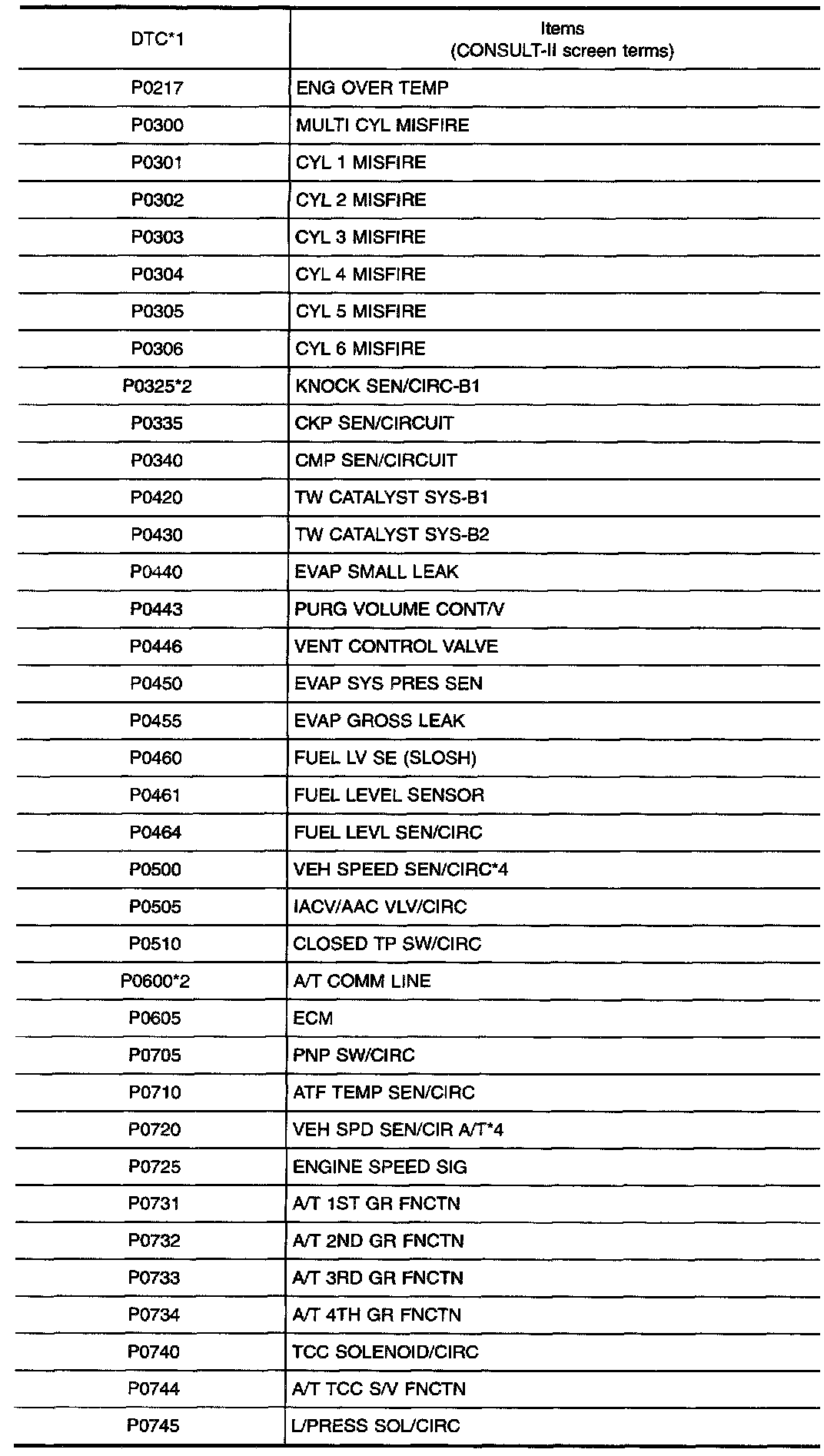

P No. Index For DTC: P0217 - P0745:

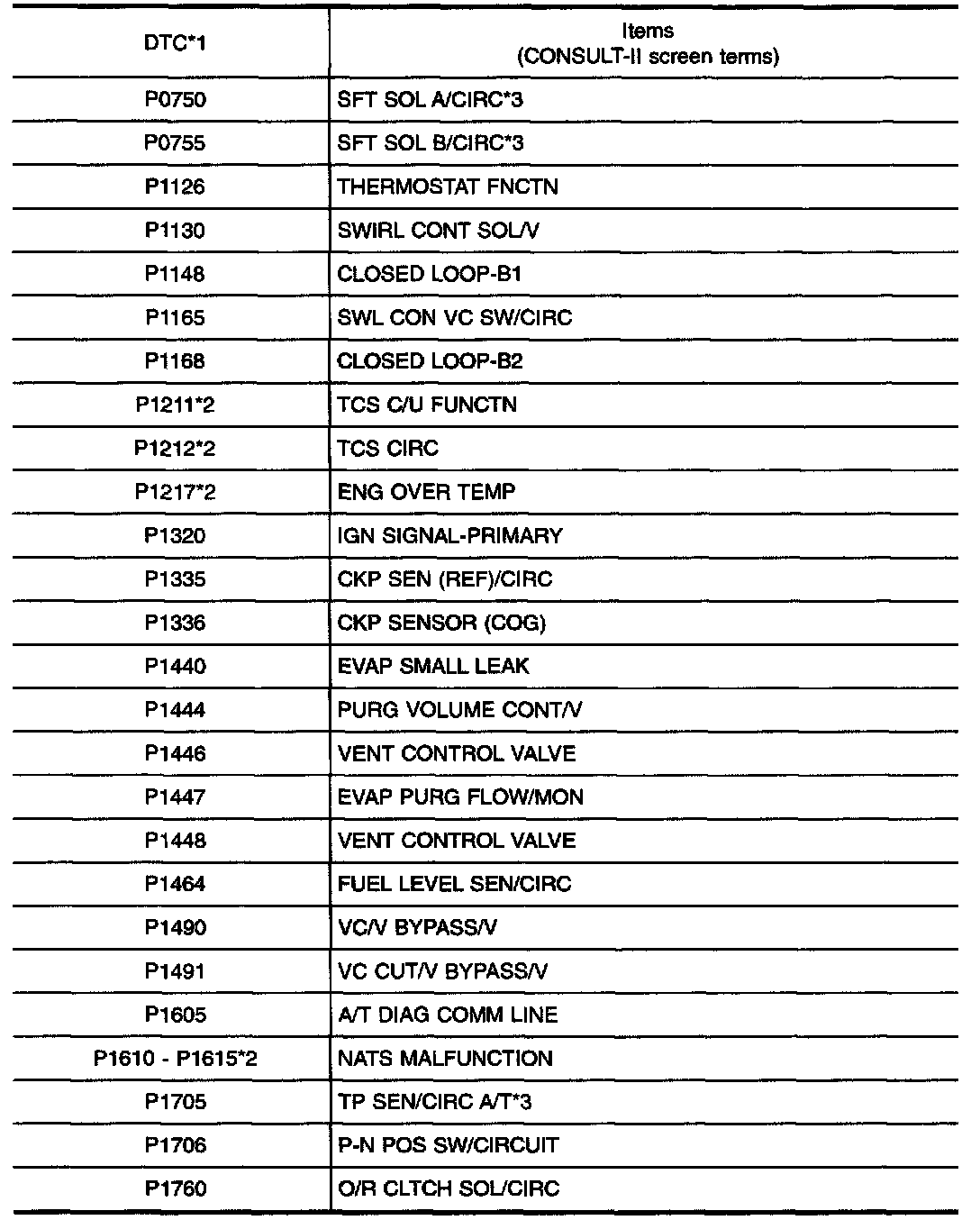

P No. Index For DTC: P0750 - P1760:

P NO. INDEX FOR DTC

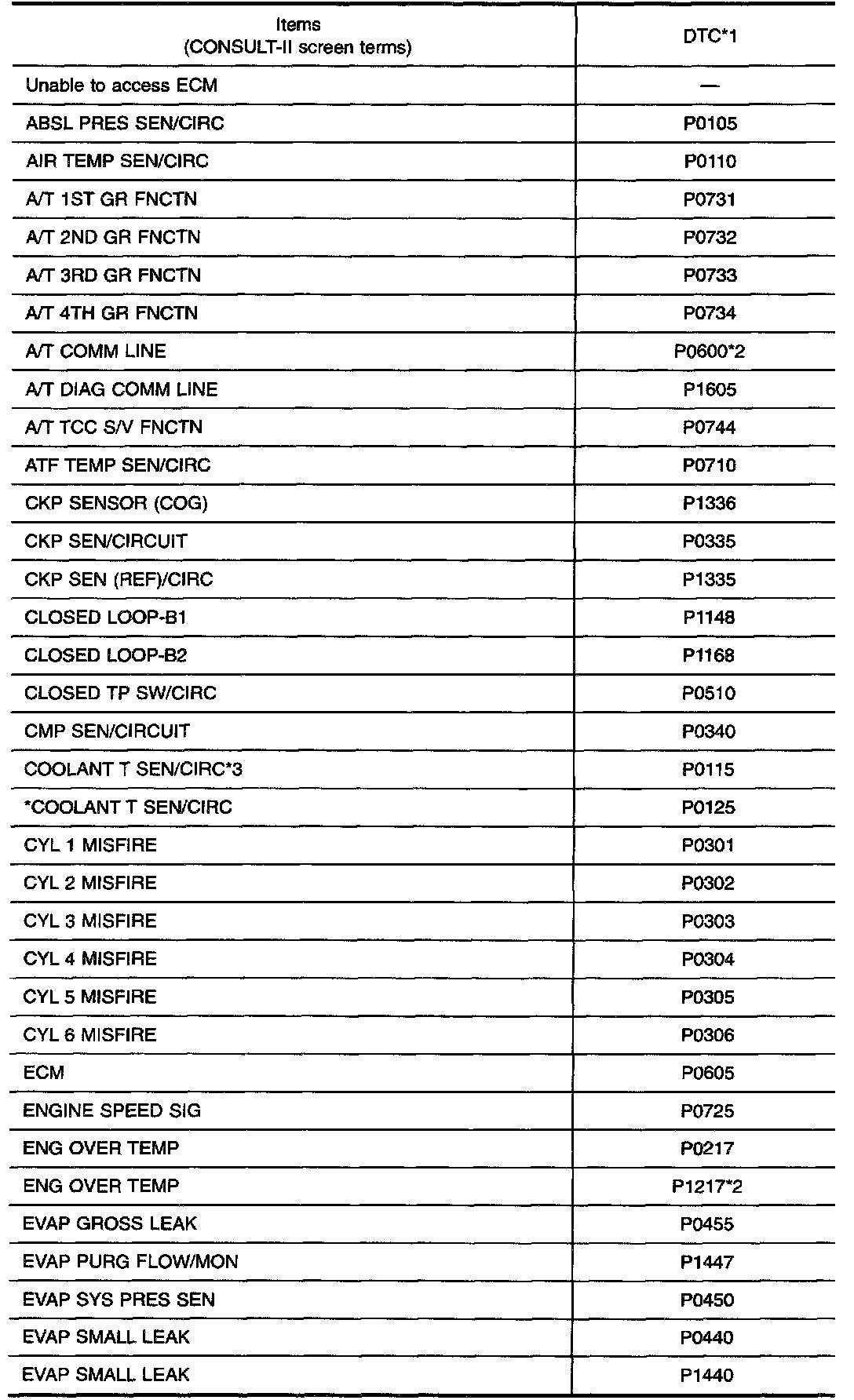

Alphabetical Index For DTC Part 1:

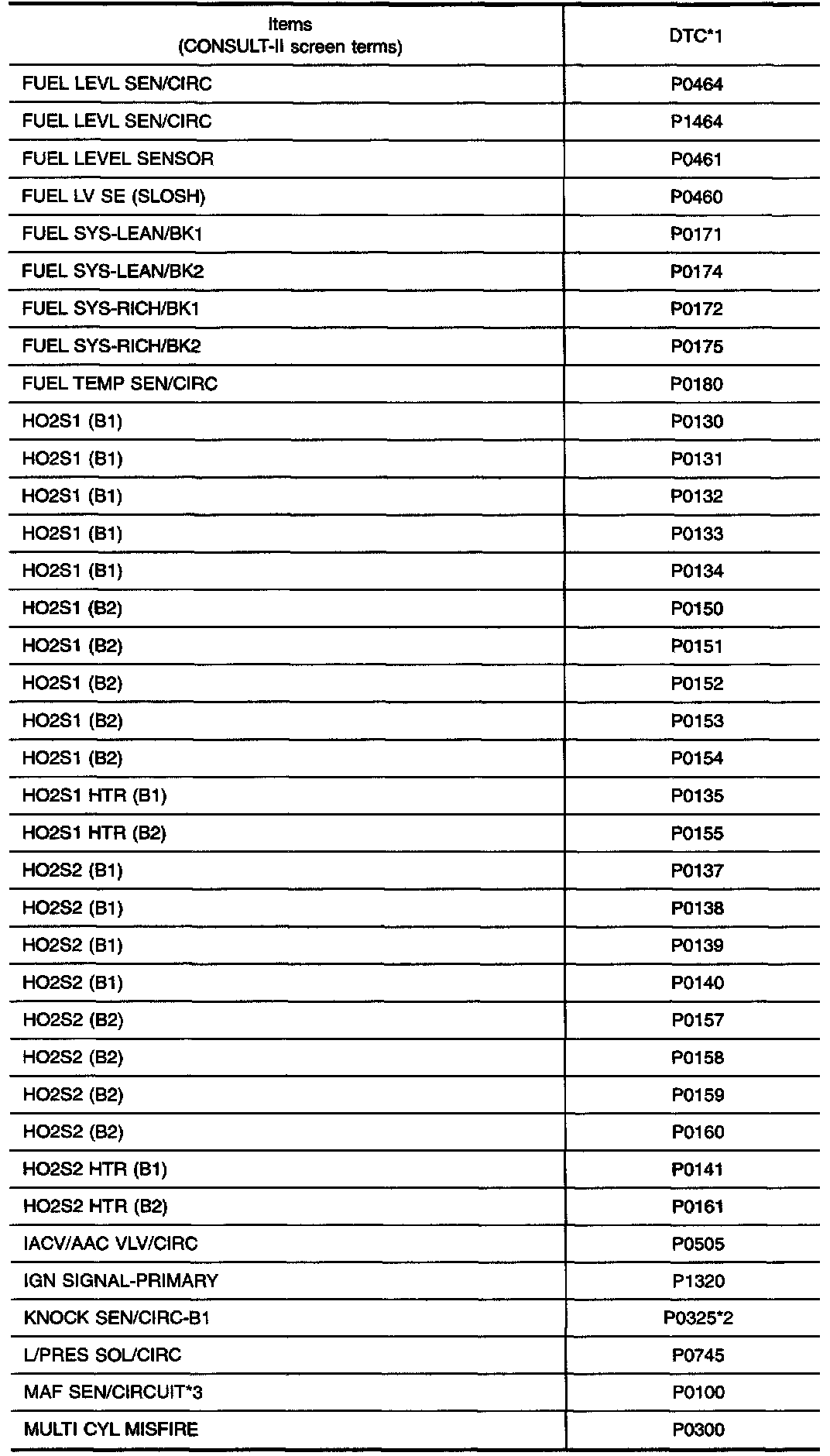

Alphabetical Index For DTC Part 2:

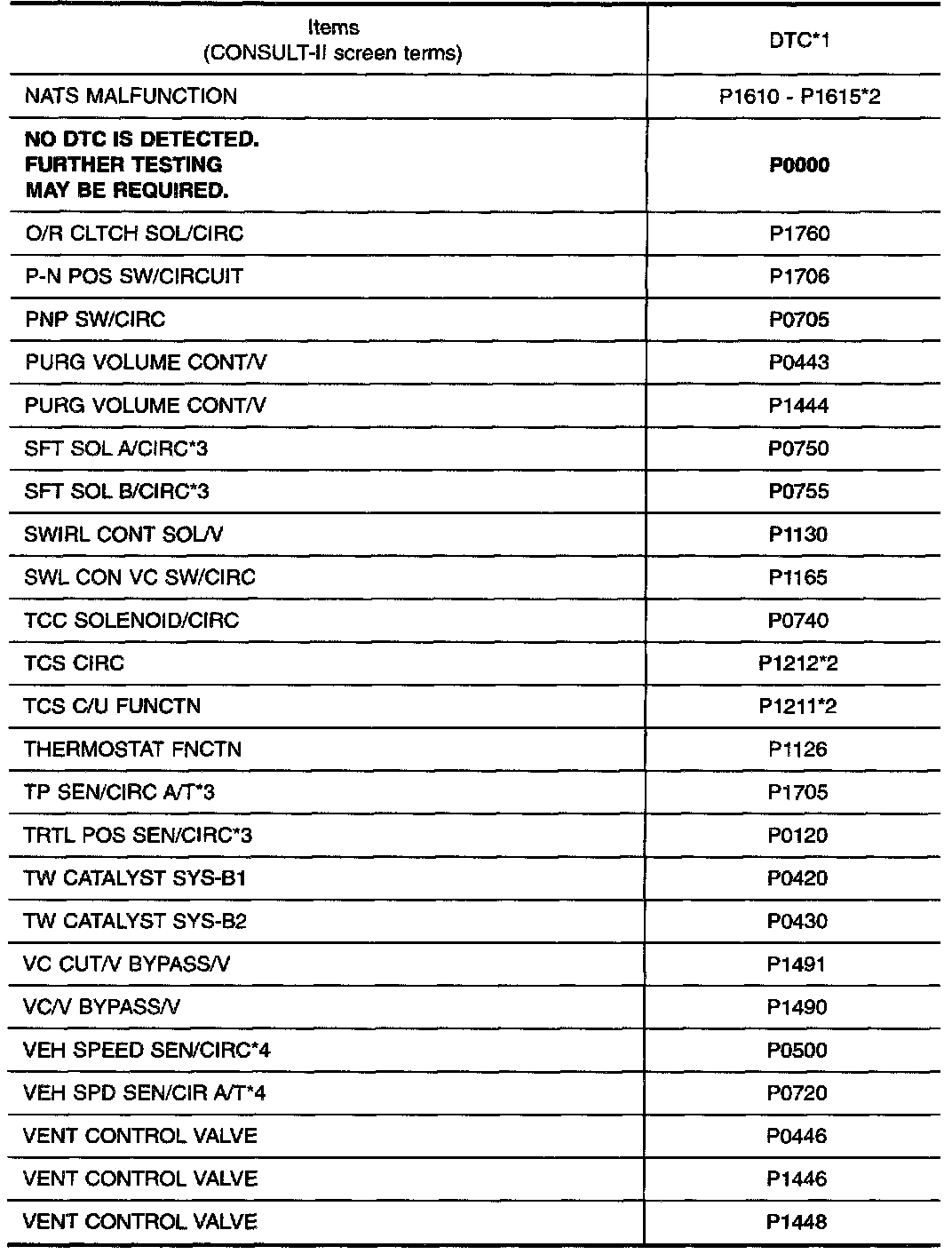

Alphabetical Index For DTC Part 3:

ALPHABETICAL INDEX FOR DTC

*1: 1st trip DTC No. is the same as DTC No.
*2: This DTC is displayed with CONSULT-II only.
*3: When the fail-safe operation occurs the MIL illuminates.
*4: The MIL illuminates when both the "Revolution sensor signal" and the "Vehicle speed sensor signal" meet the fail-safe condition at the same time.

NOTE: Regarding A33 models, "-B1" and "BK1" indicate right bank and "-B2" and "BK2" indicate left bank.
