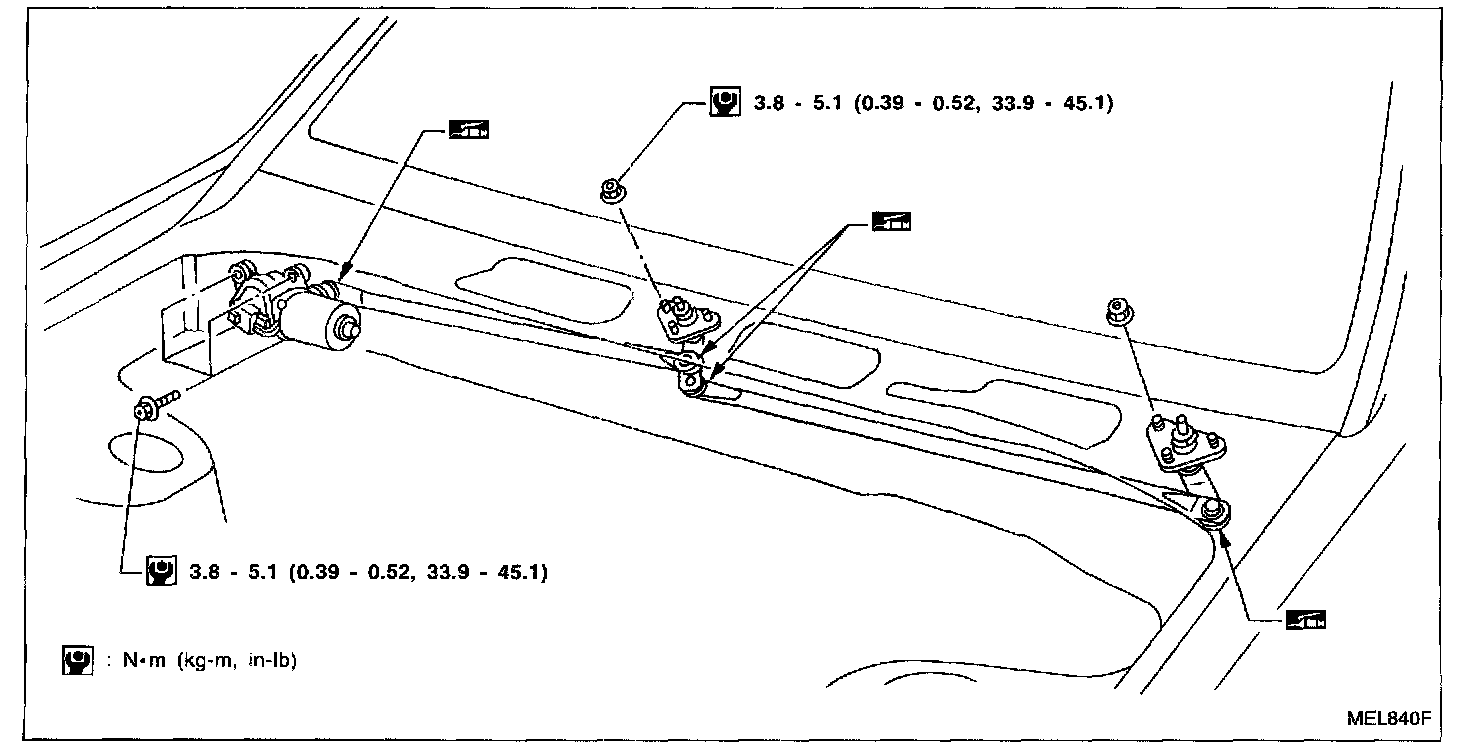

Wiper Motor Linkage: Service and Repair

Removal
1. Remove 4 bolts that secure wiper motor.
2. Detach wiper motor from wiper linkage at ball joint.
3. Remove wiper linkage.
Be careful not to break ball joint rubber boot.

Installation
- Grease ball joint portion before installation.
1. Installation is the reverse order of removal.
