Case Components

REMOVAL AND INSTALLATION

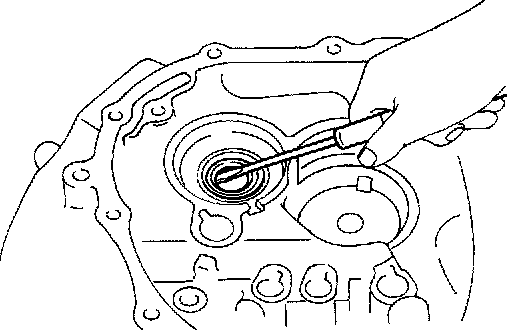

Input shaft oil seal





- Apply multi-purpose grease to seal lip of oil seal before installing.

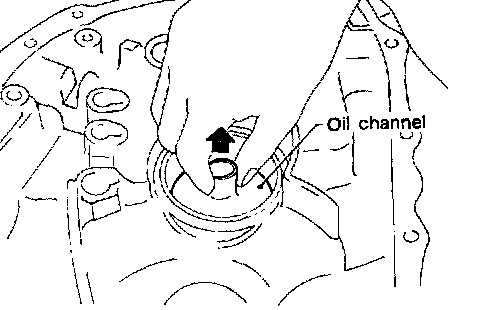

Mainshaft front bearing outer race





- Pull out oil channel (mainshaft) to remove front bearing outer race.

Mainshaft rear bearing outer race
Refer to Adjustment. Adjustment

Differential side bearing outer race
Refer to Adjustment. Adjustment
