Shift Interlock Cable: Testing and Inspection

SHIFT LOCK SOLENOID

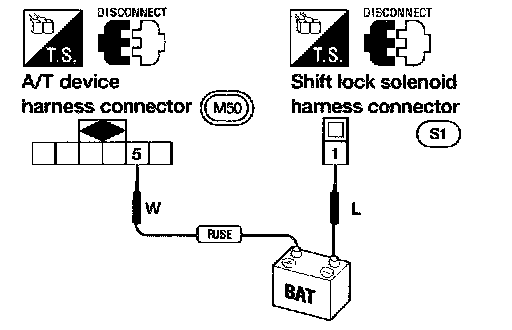

- Check operation by applying battery voltage to A/T device harness terminal 5 and shift lock solenoid harness terminal 1.

PARK POSITION SWITCH





1 of 2





2 of 2

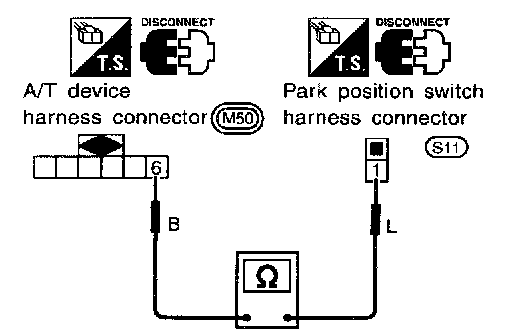

- Check continuity between A/T device harness terminal 6 and park position switch harness terminal 1.

ASCD BRAKE SWITCH (SHIFT LOCK BRAKE SWITCH)





1 of 2





2 of 2

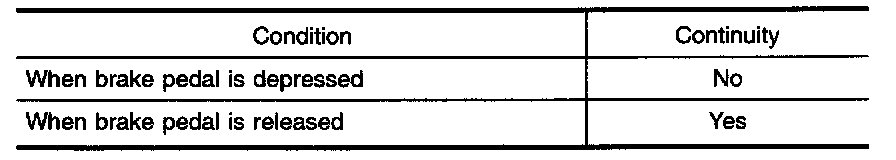

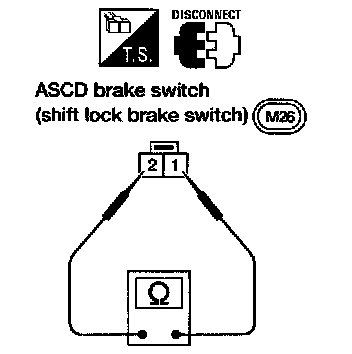

- Check continuity between terminals 1 and 2.
Check ASCD brake switch (shift lock brake switch) after adjusting brake pedal - refer to Brakes and Traction Control.
