Assembly (1)

Assembly 1

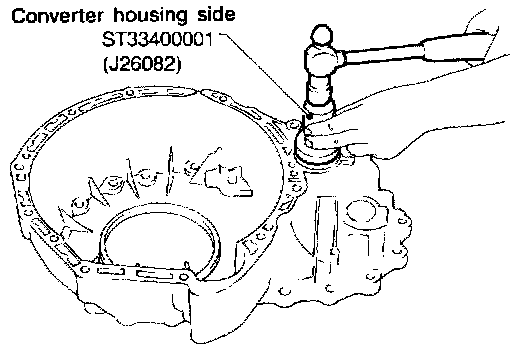

Converter Housing Side

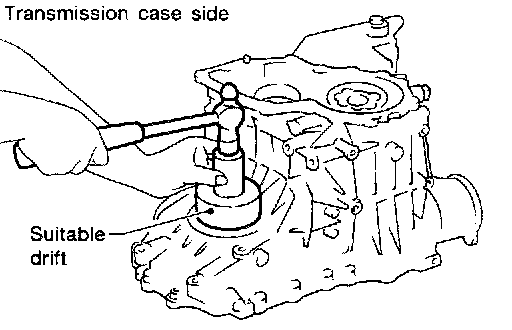

Transmission Case Side

1. Install differential side oil seals on transmission case and converter housing.

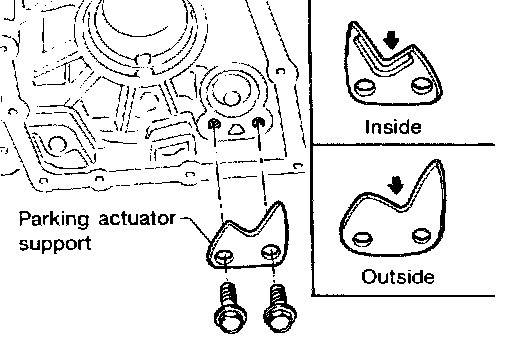

2. Install parking actuator support to transmission case.
- Pay attention to direction of parking actuator support.

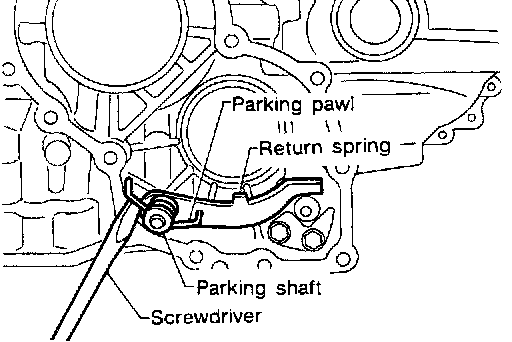

3. Install parking pawl on transmission case and fix it with parking shaft.
4. Install return spring.
