Seals and Gaskets: Service and Repair

Differential Side Oil Seal Replacement
1. Remove drive shaft assembly.

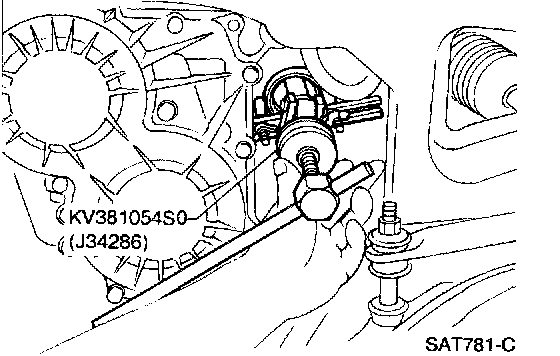

2. Remove oil seal.

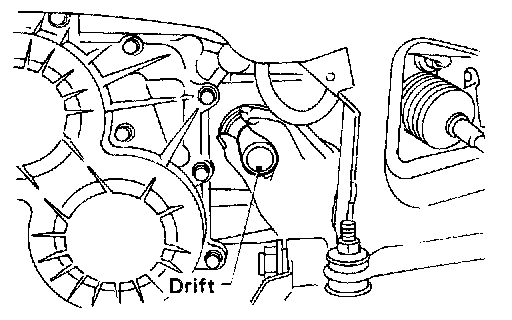

3. Install oil seal.
- Apply ATF before installing.

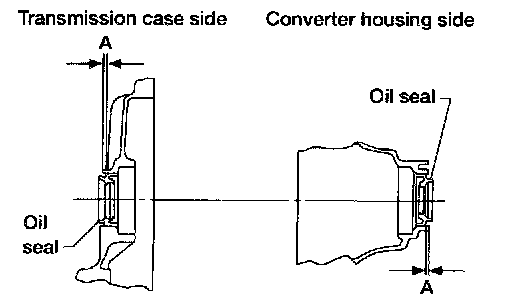

- Install oil seals so that dimension "A" is within specification.
A: -0.5 mm (-0.02 inch) to 0.5 mm (0.02 inch)
4. Reinstall any part removed.
