Gear Sensor/Switch: Testing and Inspection

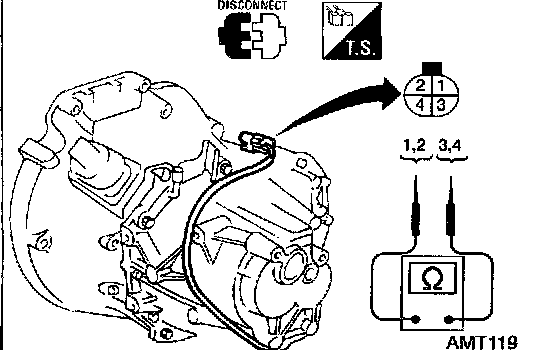

BACK-UP LAMP SWITCH AND PARK/NEUTRAL POSITION (PNP) SWITCH





1 of 2





2 of 2

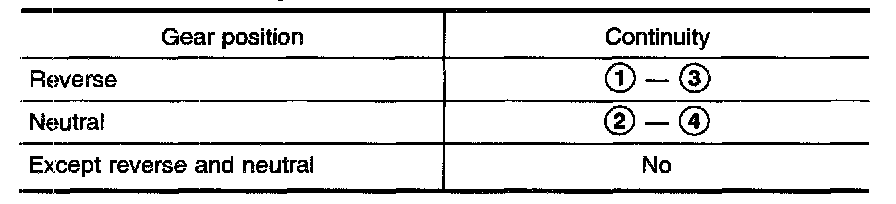

- Check continuity.
