Power Steering Pressure Switch: Testing and Inspection

Power steering oil pressure switch
1. Disconnect power steering oil pressure switch harness connector then start engine.

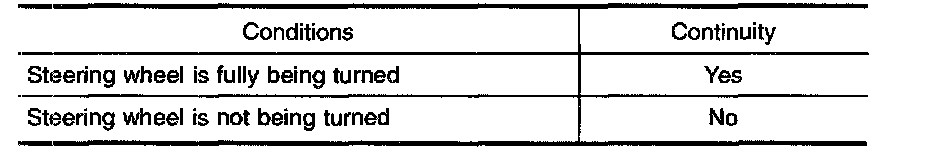

2. Check continuity between terminal (1) and ground.
If NG, replace power steering oil pressure switch.
