Oxygen Sensor: Description and Operation

COMPONENT DESCRIPTION

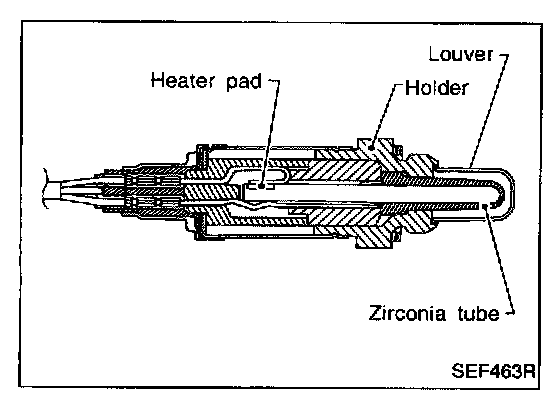

Heated Oxygen Sensor (Front)

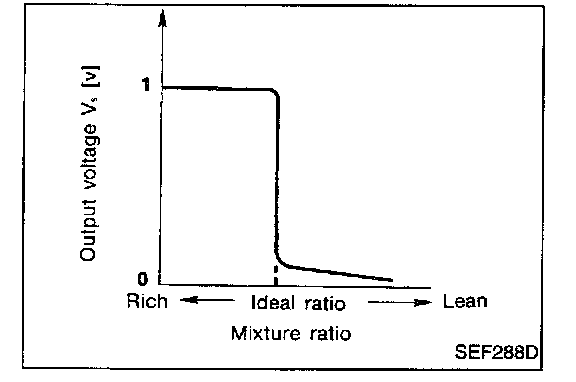

The heated oxygen sensor 1 (front) is placed into the exhaust manifold. It detects the amount of oxygen in the exhaust gas compared to the outside air. The heated oxygen sensor 1 (front) has a closed-end tube made of ceramic zirconia. The zirconia generates voltage from approximately 1 V in richer conditions to 0 V in leaner conditions. The heated oxygen sensor 1 (front) signal is sent to the ECM. The ECM adjusts the injection pulse duration to achieve the ideal air-fuel ratio. The ideal air-fuel ratio occurs near the radical change from 1 V to 0 V.

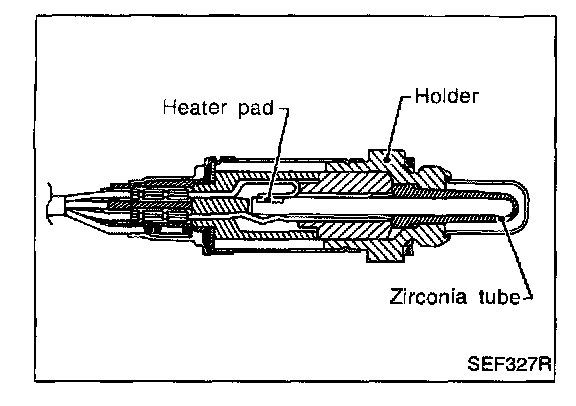

Heated Oxygen Sensor (Rear)
The heated oxygen sensor 2 (rear), after three way catalyst, monitors the oxygen level in the exhaust gas.
Even if switching characteristics of the heated oxygen sensor 1 (front) are shifted, the air fuel ratio is controlled to stoichiometric, by the signal from the heated oxygen sensor 2 (rear). This sensor is made of ceramic zirconia. The zirconia generates voltage from approximately 1 V in richer conditions to 0 V in leaner conditions.
Under normal conditions the heated oxygen sensor 2 (rear) is not used for engine control operation.

SYSTEM DESCRIPTION

System Description / Operation:

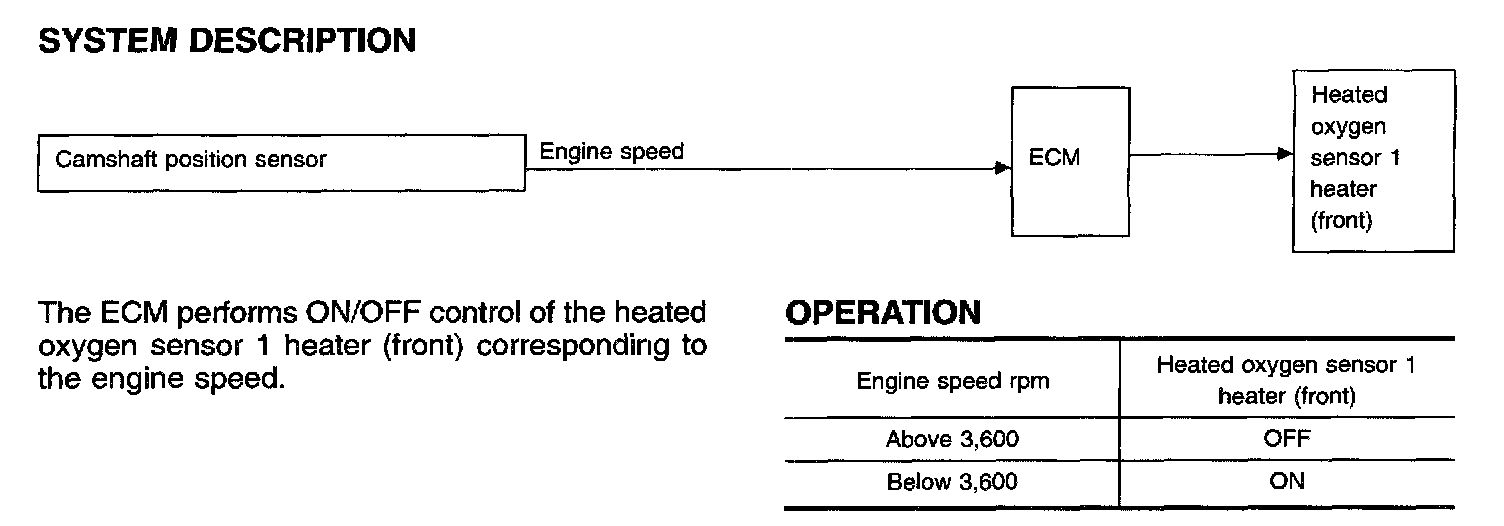

Heated Oxygen Sensor Heater (Front)
The ECM performs ON/OFF control of the heated oxygen sensor 1 heater (front) corresponding to the engine speed.

System Description / Operation:

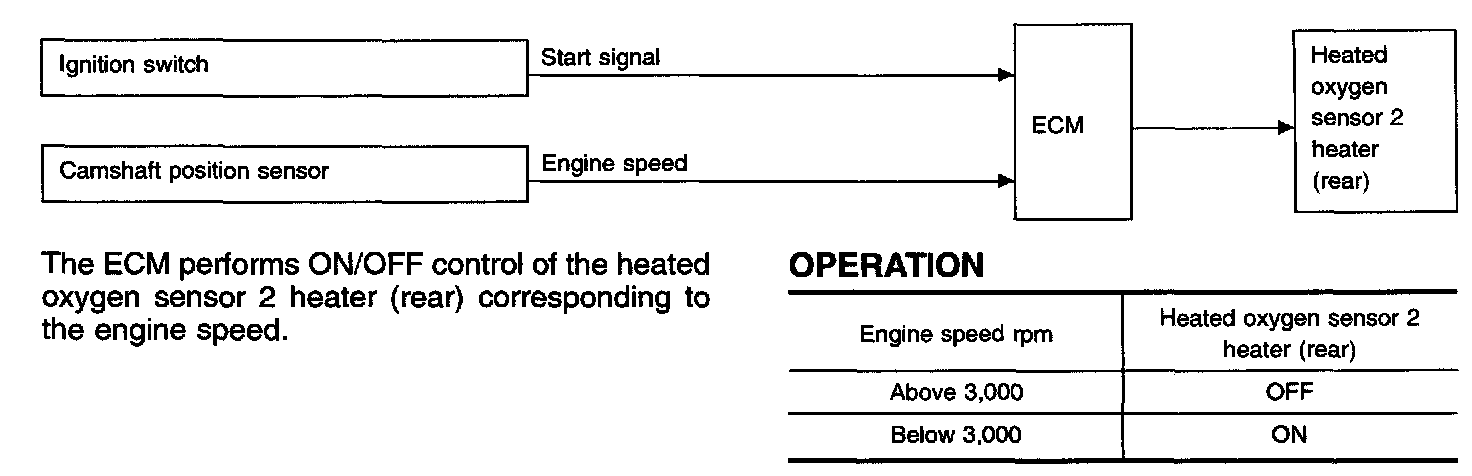

Heated Oxygen Sensor Heater (Rear)
The ECM performs ON/OFF control of the heated oxygen sensor 2 heater (rear) corresponding to the engine speed.
