Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

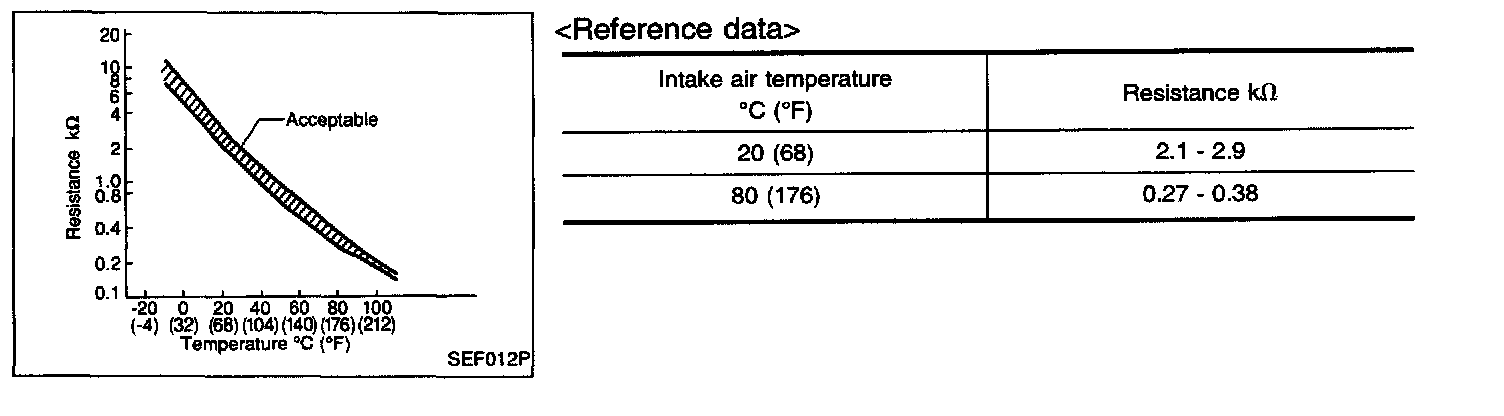

Reference Data:

Intake air temperature sensor

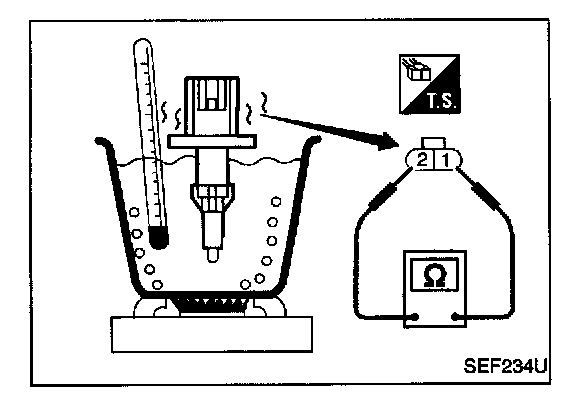

Check resistance as shown in the figure.
If NG, replace intake air temperature sensor.
