Home >> Nissan-Datsun >> 2001 >> Altima XE L4-2.4L (KA24DE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Combination Switch >> Testing and Inspection

Combination Switch: Testing and Inspection

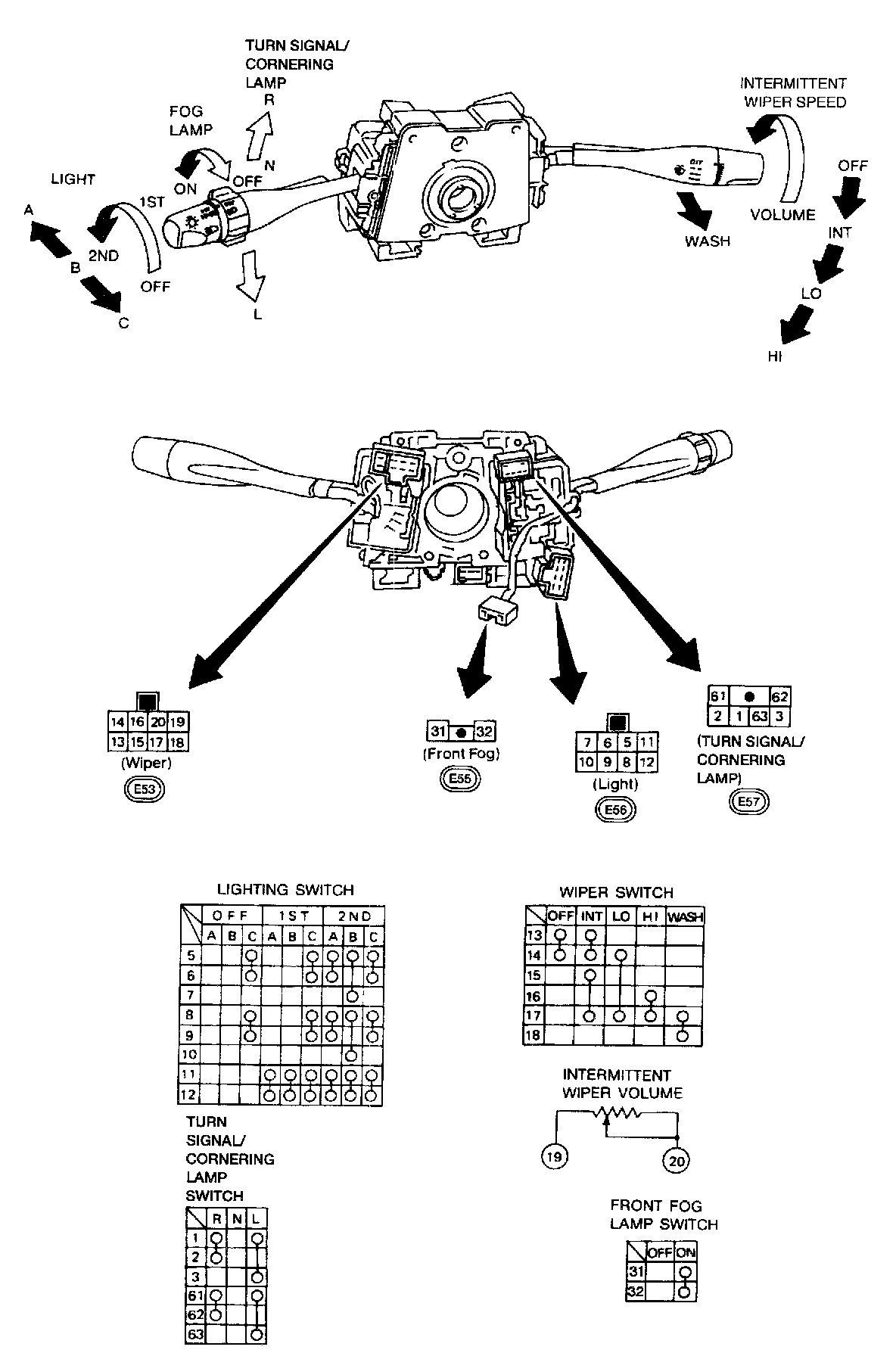

Combination Switch - Check:

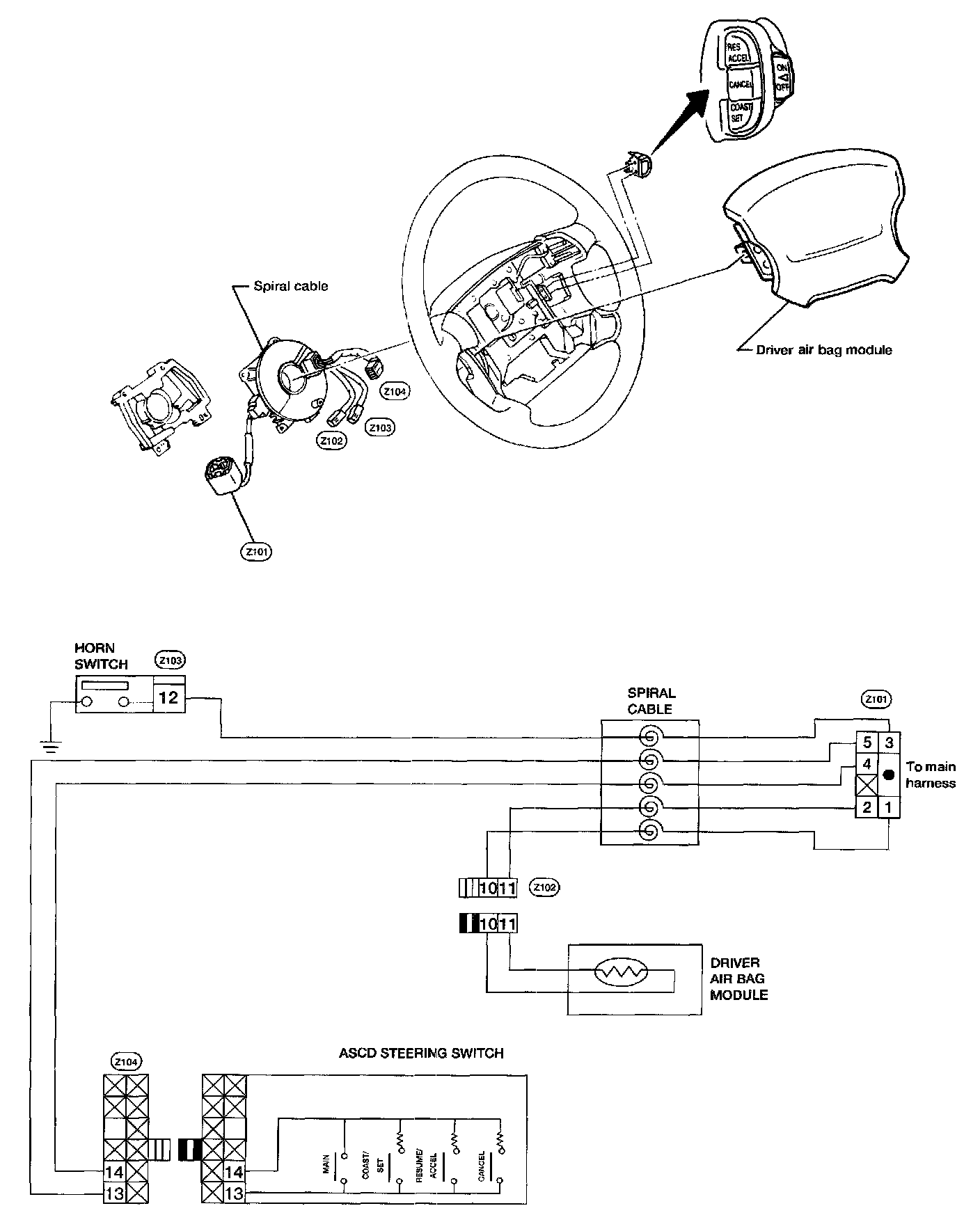

Steering Switch - Check:
