Combination Switch: Service and Repair

Replacement
For removal and installation of spiral cable, refer to "Driver - Air Bag Module and Spiral Cable", "SUPPLEMENTAL RESTRAINT SYSTEM (SRS)".

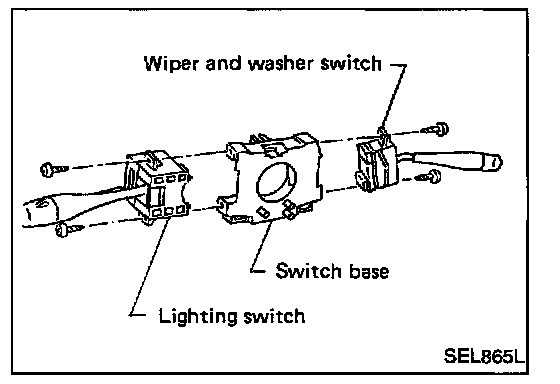

- Each switch can be replaced without removing combination switch base.

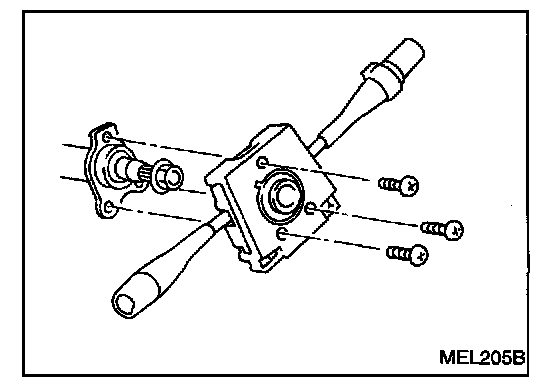

- To remove combination switch base, remove base attaching screws.

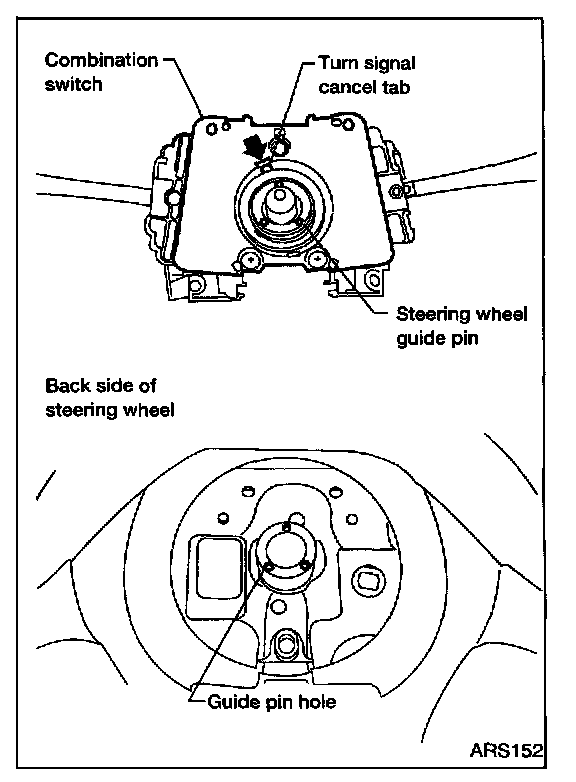

- Before installing the steering wheel, align the turn signal cancel tab with the notch of combination switch. Refer to "INSTALLATION", "Driver Air Bag Module and Spiral Cable".
