Wheel Speed Sensor: Testing and Inspection

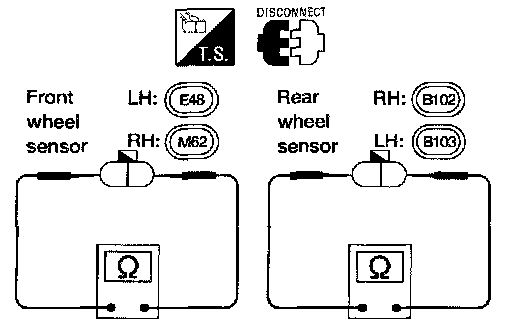

Wheel sensor





Check resistance for each sensor.
Resistance: 0.6 - 3.25 k ohms
