Wheel Speed Sensor: Service and Repair

Removal and Installation

CAUTION:
- Be careful not to damage sensor edge and sensor rotor teeth.
- When removing the front or rear wheel hub assembly, disconnect the ABS wheel sensor from the assembly and move it away.

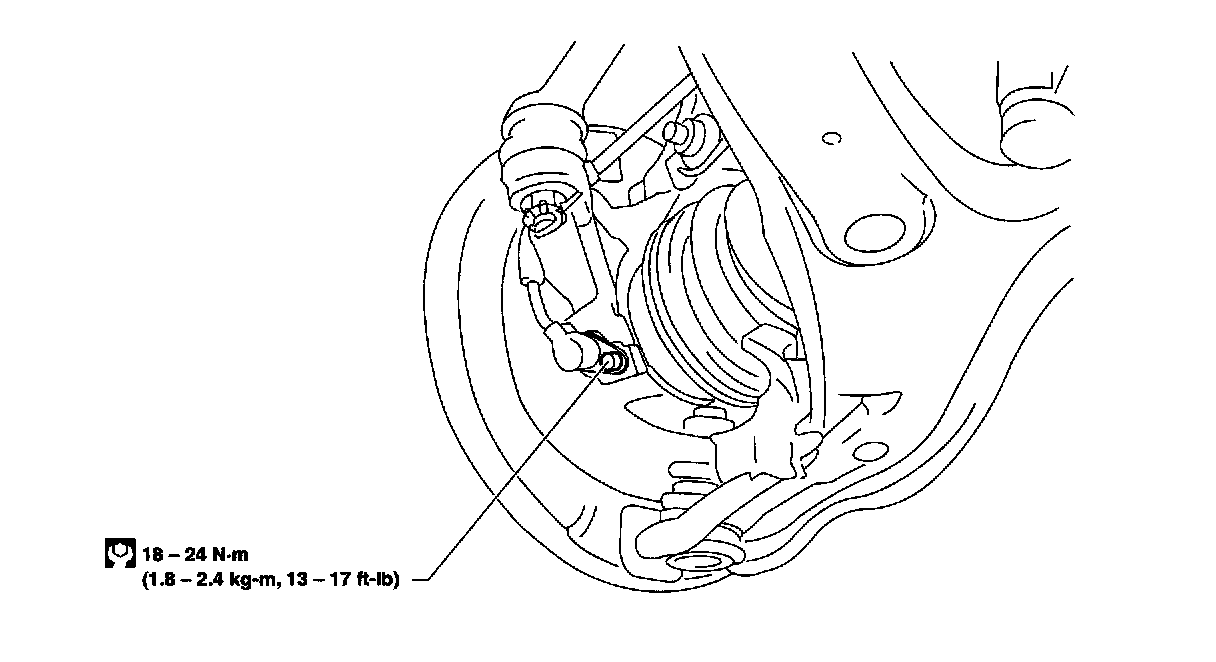

FRONT WHEEL SENSOR

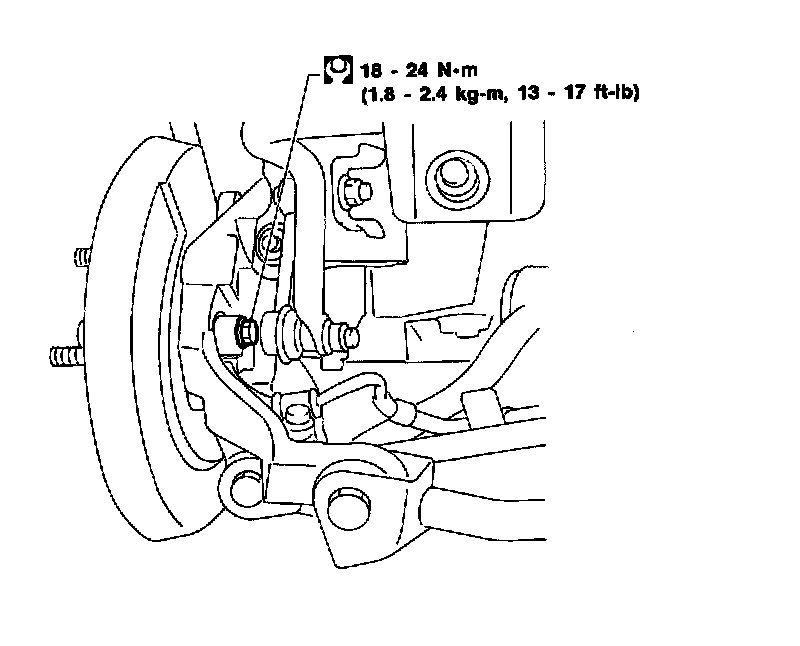

REAR WHEEL SENSOR
