Wheel Speed Sensor: Description and Operation

SENSOR

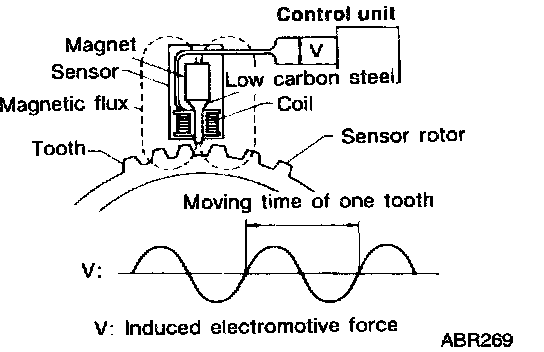

The sensor unit consists of a gear-shaped sensor rotor and a sensor element. The element contains a bar magnet around which a coil is wound. The sensor is installed on the back side of the brake rotor. Sine-wave current is generated by the sensor,as the wheel rotates. The frequency and voltage increase(s) as the rotating speed increases.
