Rear Seat Belt

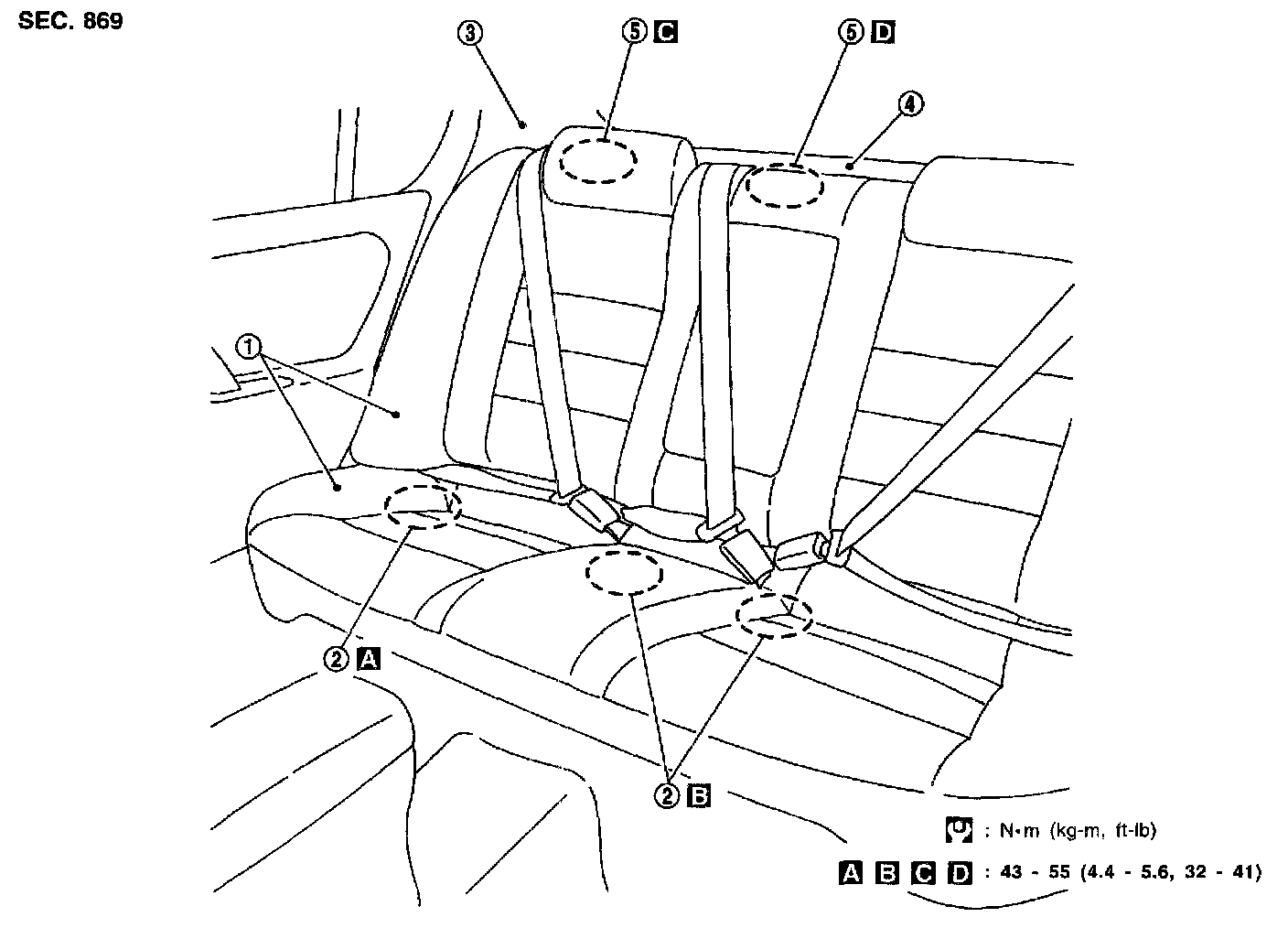

Component Locations Overview:

Component Views:

REMOVAL AND INSTALLATION
1. Remove rear seat.

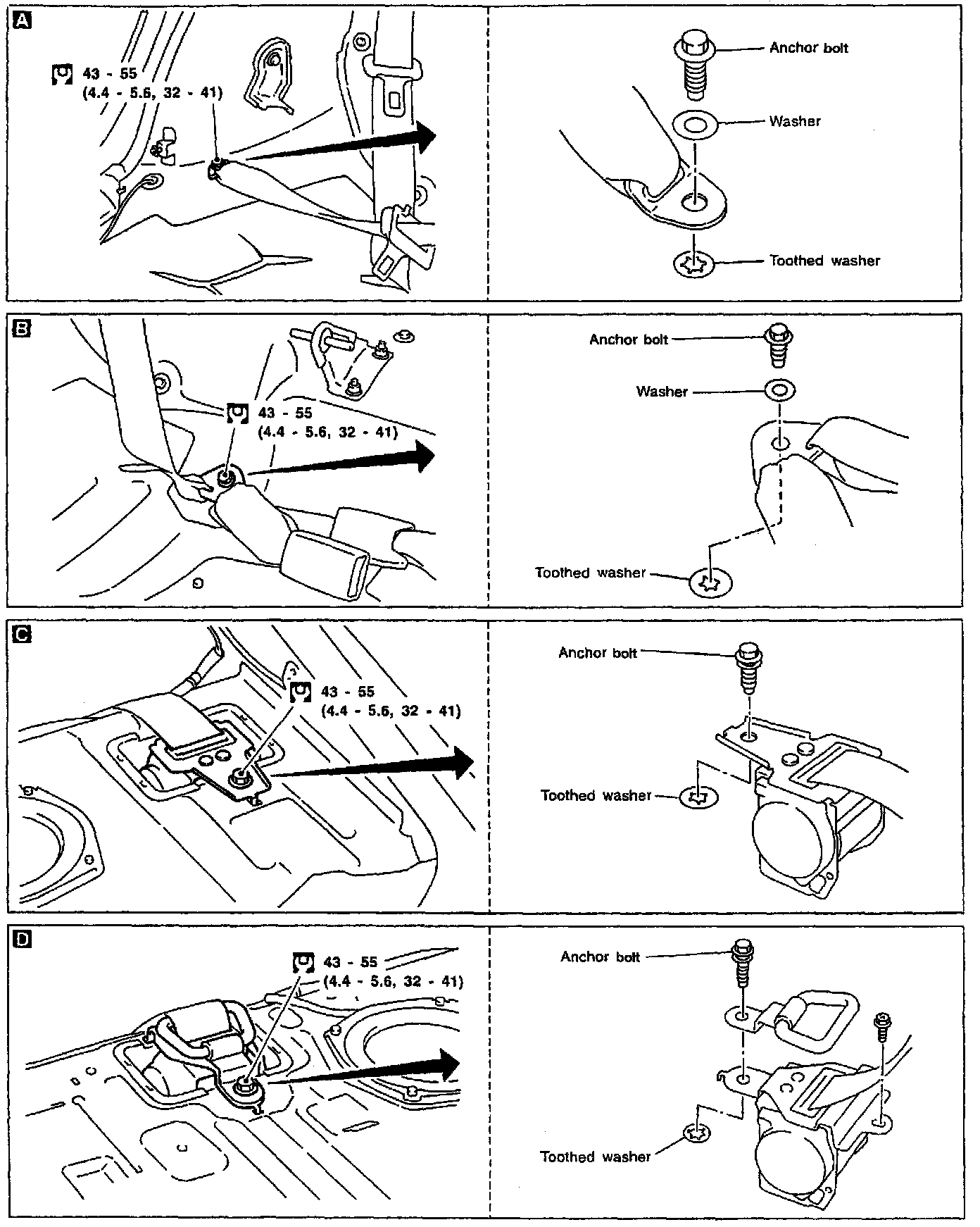

2. Remove outer and floor anchor bolt. [A] [B]
3. Remove rear side garnish. Refer to "Side and Floor Trim" for details.
4. Remove rear parcel shelf finisher. Refer to "Side and Floor Trim" for details.
5. Remove bolts securing rear seat belt retractor, then remove seat belt and seat belt retractor. [C] [D]
