Front Seat Belt

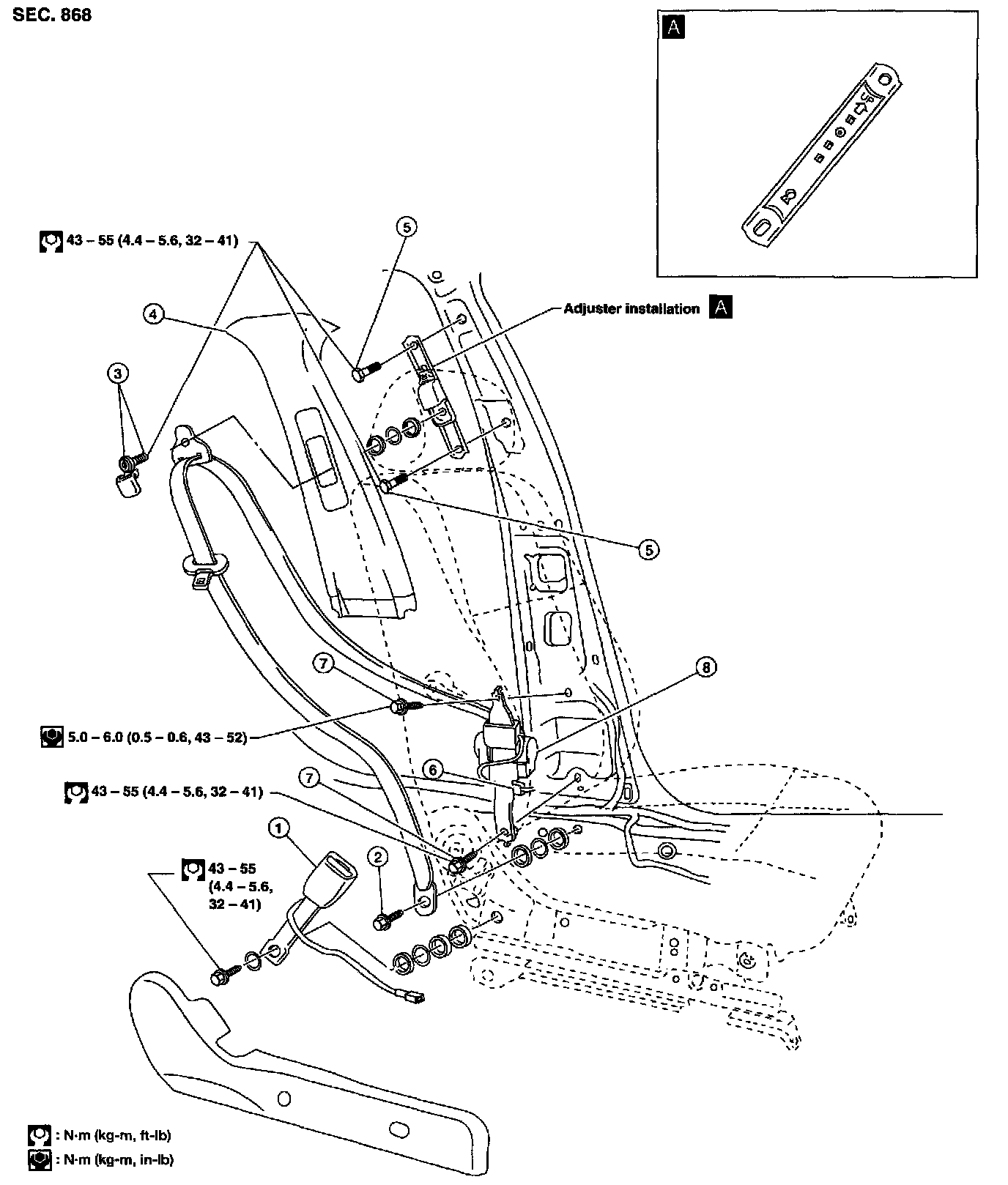

Component Locations Overview:

REMOVAL AND INSTALLATION
Slide the seat all the way forward and tilt the seat back toward the front.
1. Remove buckle.
Remove front and rear inner kick plates.
2. Remove belt anchor bolts.
Remove center pillar lower garnish. Refer to "Side and Floor Trim".
3. Remove adjuster cover and upper guide loop anchor bolt.
4. Remove center pillar upper garnish. Refer to "Side and Floor Trim".
5. Remove two adjuster bolts and adjuster assembly. [A]
6. Disconnect seat belt pre-tensioner connector.
7. Remove seat belt pre-tensioner retractor bolt and screw.
8. Remove seat belt pre-tensioner retractor.
